Keysight B2900 User’s Guide, Edition 5 4-9
Front Panel Reference
Display and Assist Keys
Single View

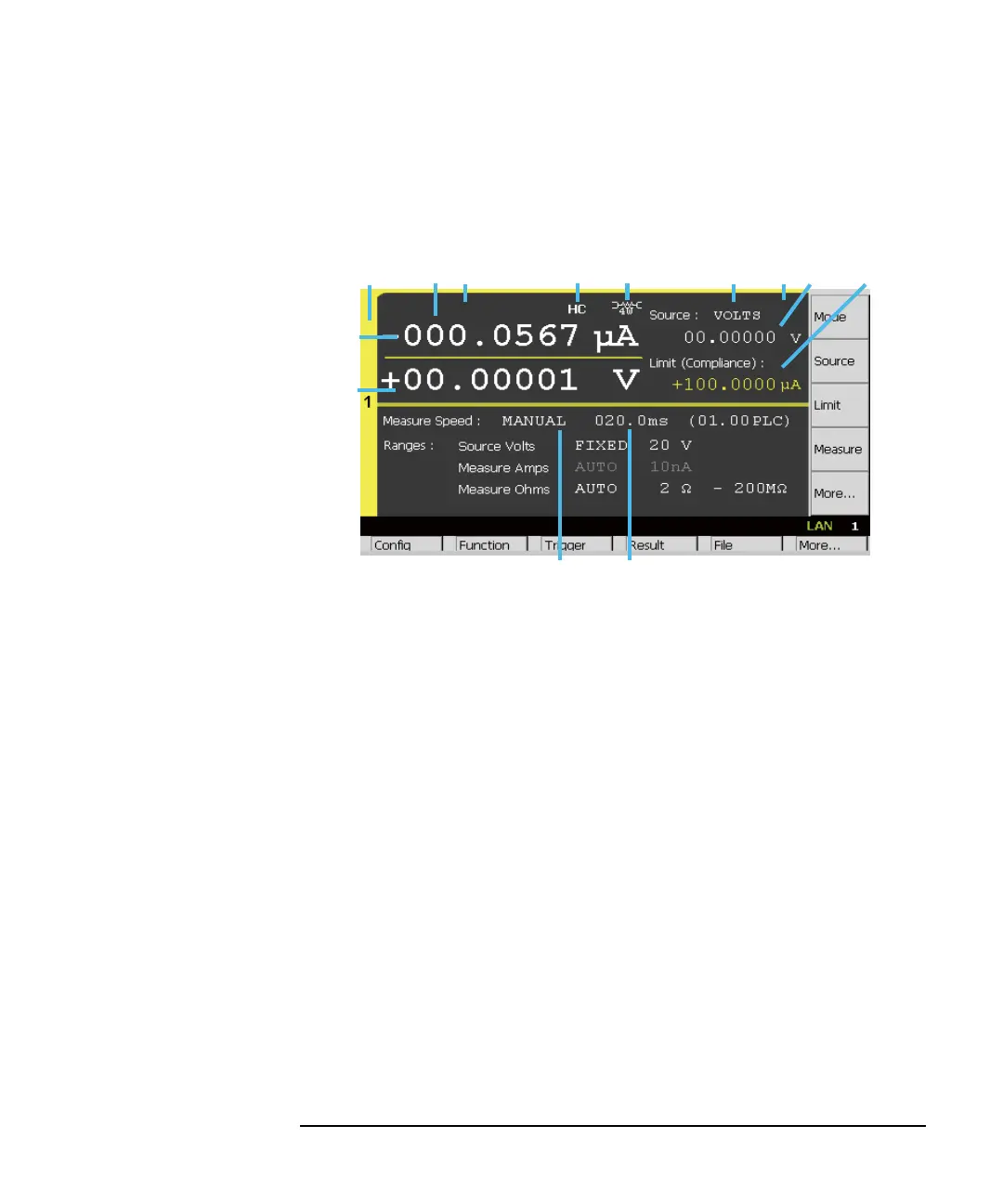

Displays the measurement results, source and measurement settings, and channel
status. Most setup parameters can be edited on this display. The lower half displays
the setup parameters selected by Assist keys 2.
Display area 1. Channel number. 1 or 2.
2. Latest measurement data
3. Over voltage/current status indicator (OV or OC, red)
4. High capacitance mode indicator (HC)
5. Remote sensing (4-wire connection) status indicator
6. Source function. VOLTS or AMPS.
7. Source shape indicator. DC, pulse, sweep, or pulsed sweep. DC does not show
the indicator.
8. Source output value, 5½ digit resolution on B2901A/B2902A, and 6½ digit
resolution on B2911A/B2912A
9. Limit (Compliance) value. See “Display Preference dialog box” on page 4-51 to
set the V/I Limit for Each Polarity.
10. Measurement speed. AUTO, SHORT, MEDIUM, NORMAL, LONG, or
MANUAL.
11. Aperture time in seconds or PLC (power line cycle, number of power line cycles
per a measurement). Only for the MANUAL speed.
D1. Primary measurement data. Turns orange if the data exceeds the Limit value.
