4-24 Keysight B2900 User’s Guide, Edition 5
Front Panel Reference
Display and Assist Keys
Status Information
The status information is common for all display modes. It is displayed above the
bottom softkeys associated with the function keys.

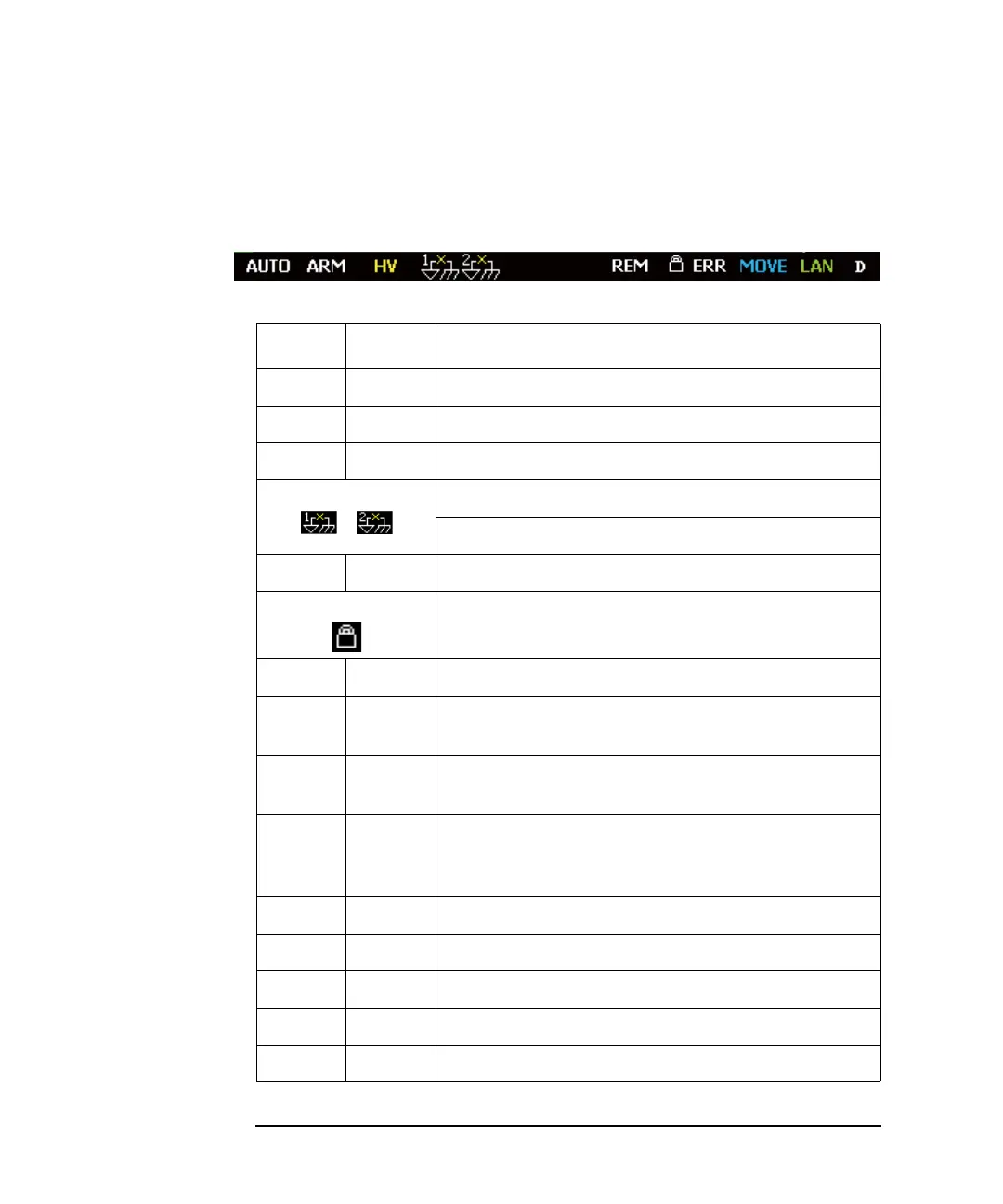

Table 4-4 Status Indicator
Label Color Description
AUTO white Trigger auto. Automatic trigger is enabled now.
ARM white Trigger active. Trigger system is active now.
HV yellow High voltage. Output voltage setting is over 42 V.
Channel 1 floating status. Channel 1 is not grounded.
Channel 2 floating status. Channel 2 is not grounded.
REM white Remote. Instrument is in the remote state.
Local lockout.
Instrument is in the local lockout (LLO) status.
ERR white Error. At least one error is detected.
EDIT green Edit mode. The field specified by the pointer can be
edited. Not in the move mode.
MOVE blue Move mode. The field pointer can be moved. Not in the
edit mode.
LAN green or
red
LXI LAN status indicator. Green indicates normal LAN
status. Red indicates abnormal condition. Blinking
indicates the LAN identification status.
D white Display mode: Dual view
1 white Display mode: Single view for channel 1
2 white Display mode: Single view for channel 2
G white Display mode: Graph view
R white Display mode: Roll view
