CAUTION Electrostatic discharges greater than 1 kV near the interface connectors may cause
the unit to reset and require operator intervention.
B2900 supports GPIB, LAN, and USB interfaces. All three interfaces are live at
power-on. Connect your interface cable to the appropriate interface connector.
Information on configuring the interfaces can be found later in this section.
The front panel LAN indicator is lit when the LAN port is connected and
configured.
B2900 provides Ethernet connection monitoring. With Ethernet connection
monitoring, the instrument’s LAN port is continually monitored and automatically
reconfigured.
GPIB/USB Interfaces
NOTE For detailed information about GPIB and USB interface connections, refer to
Connectivity Guide installed with the Keysight IO Libraries.
The following steps will help you quickly get started connecting your instrument to

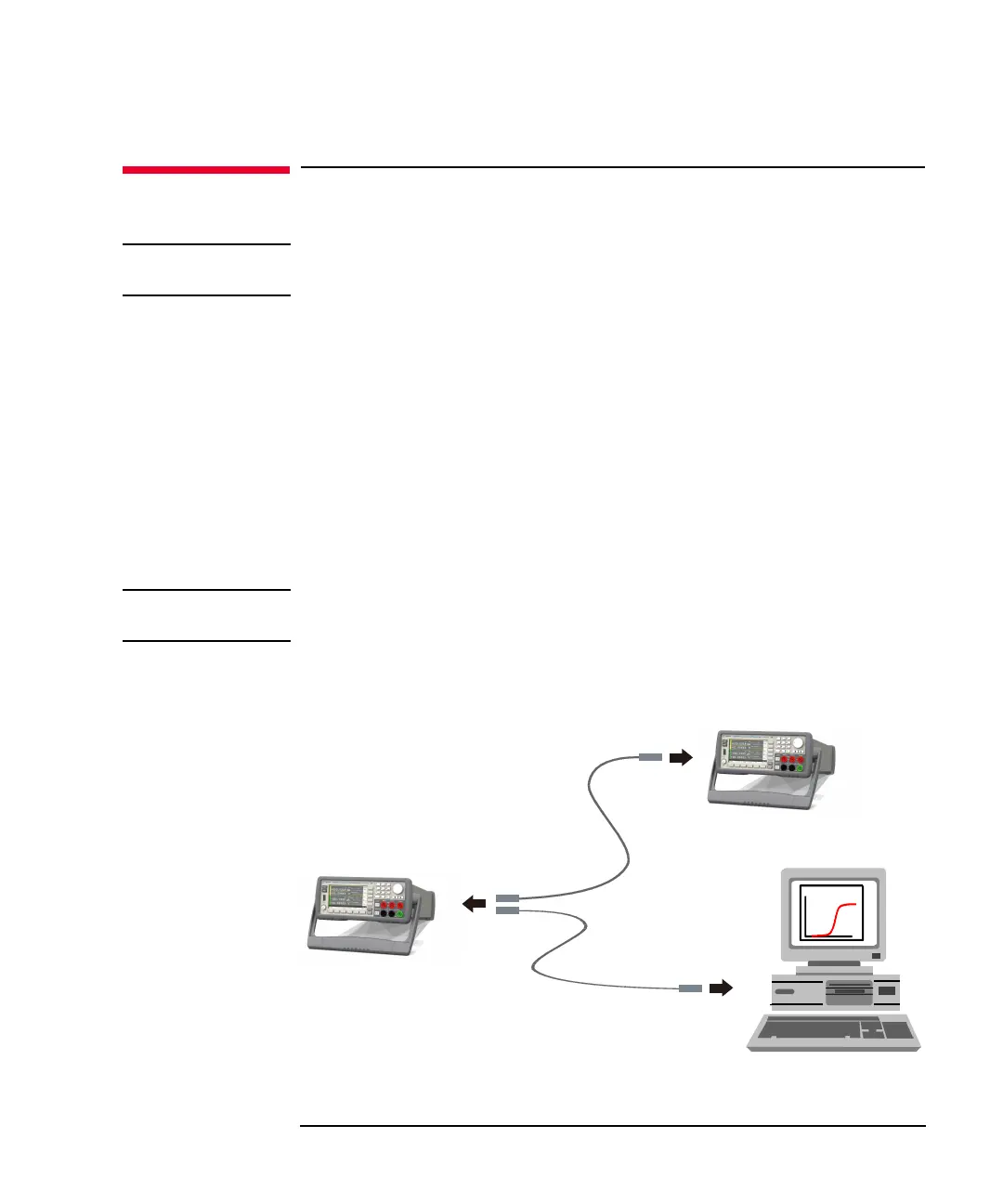

the GPIB (General Purpose Interface Bus). The following figure illustrates a typical
GPIB interface system.
Connect to GPIB interface
card installed in PC.
Connect to GPIB
port on instrument.
InstrumentInstrument
Instrument
PC
GPIB cable
