Keysight Technologies B2900 Series User Manual

6-30 Keysight B2900 User’s Guide, Edition 5
Function Details
Trigger System
• Measurement wait time control is set to OFF.
• Measurement ranging mode is set to the fixed mode.
• To synchronize measurement:
• Trigger source is set to the same mode.
• Delay time is set to the same value.
• Measurement wait time control is set to OFF.
• Measurement ranging mode is set to the fixed mode.

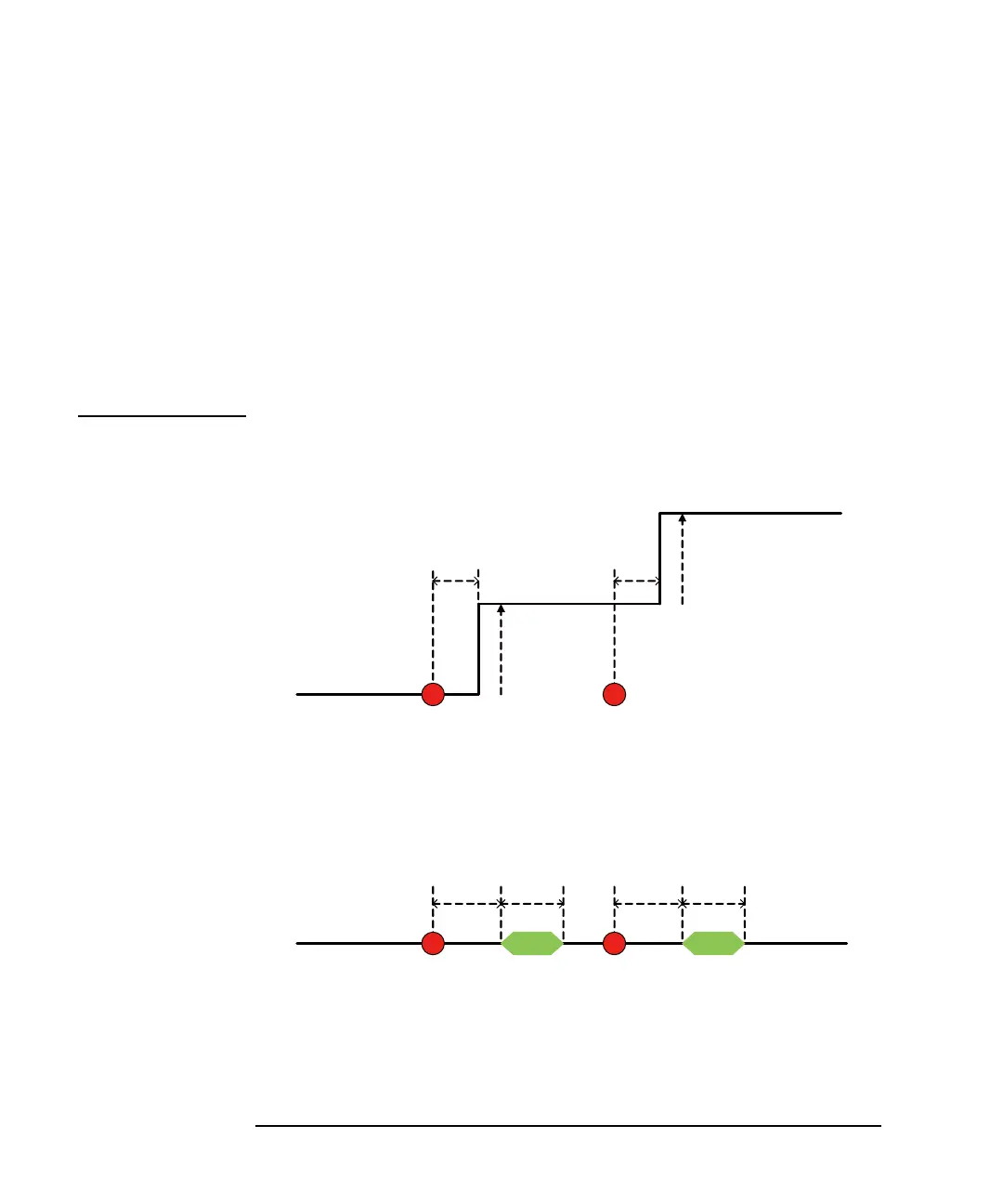

Figure 6-9 Transient and Acquire Device Actions
Transient device action
- for voltage or current output -
Source delay
Acquire device action
- for voltage or current measurement -
Trigger
Step value
Step value
Measure Measure
Source delay
Measure delay Measure delay
Trigger
Trigger
Trigger
