Kollmorgen S700

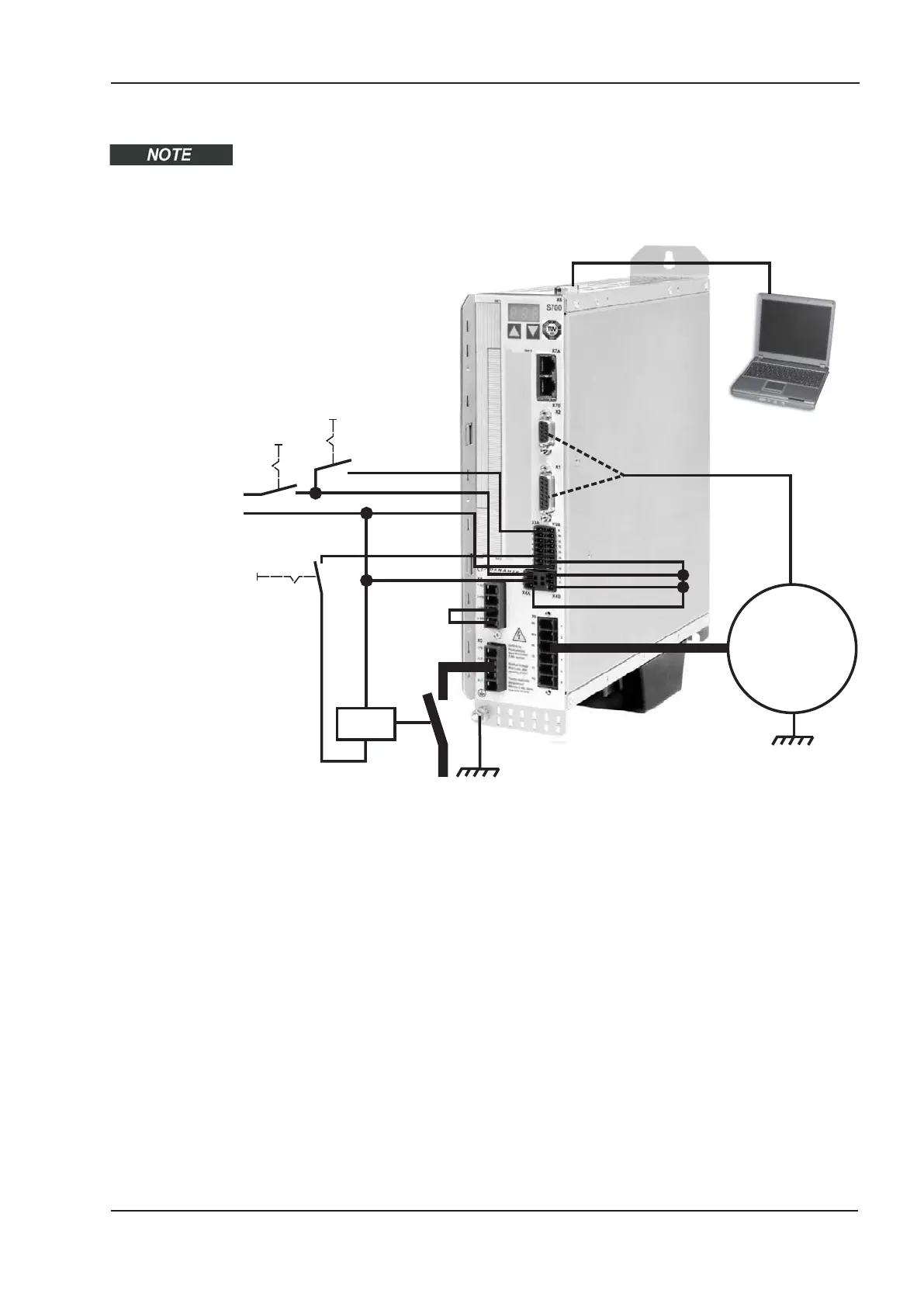

Minimum Wiring for Drive Test
This wiring does not fulfill any requirements to safety or functionality of your application, it
just shows the required wiring for drive testing without load.
S701x2-S724x2 Instructions Manual 111
Kollmorgen 07/2014 Setup
Power ON
24V DC
+
-
Enable
Power
Feedback
Power
Motor
X8/4
X8/3
X4A/1
X3B/14
24V ON
X3A/1
X3B/16
X3B/15
X4B/4
X4A/2
X4B/6
X4A/3
