9.1.3 Expansion card -PROFIBUS-
This section describes the PROFIBUS expansion card for the S700.
Information on the range of functions and the software protocol can be found in our
manual “Communication Profile PROFIBUS DP”.
The PROFIBUS expansion card has two 9-pin SubD sockets wired in parallel.
The supply voltage for the expansion card is provided by the servo amplifier.
9.1.3.1 Connection technology
Cable selection, cable routing, shielding, bus connector, bus termination and transmis-
sion times are all described in the “Installation Guidelines for PROFIBUS-DP/FMS” from
PNO, the PROFIBUS User Organization.

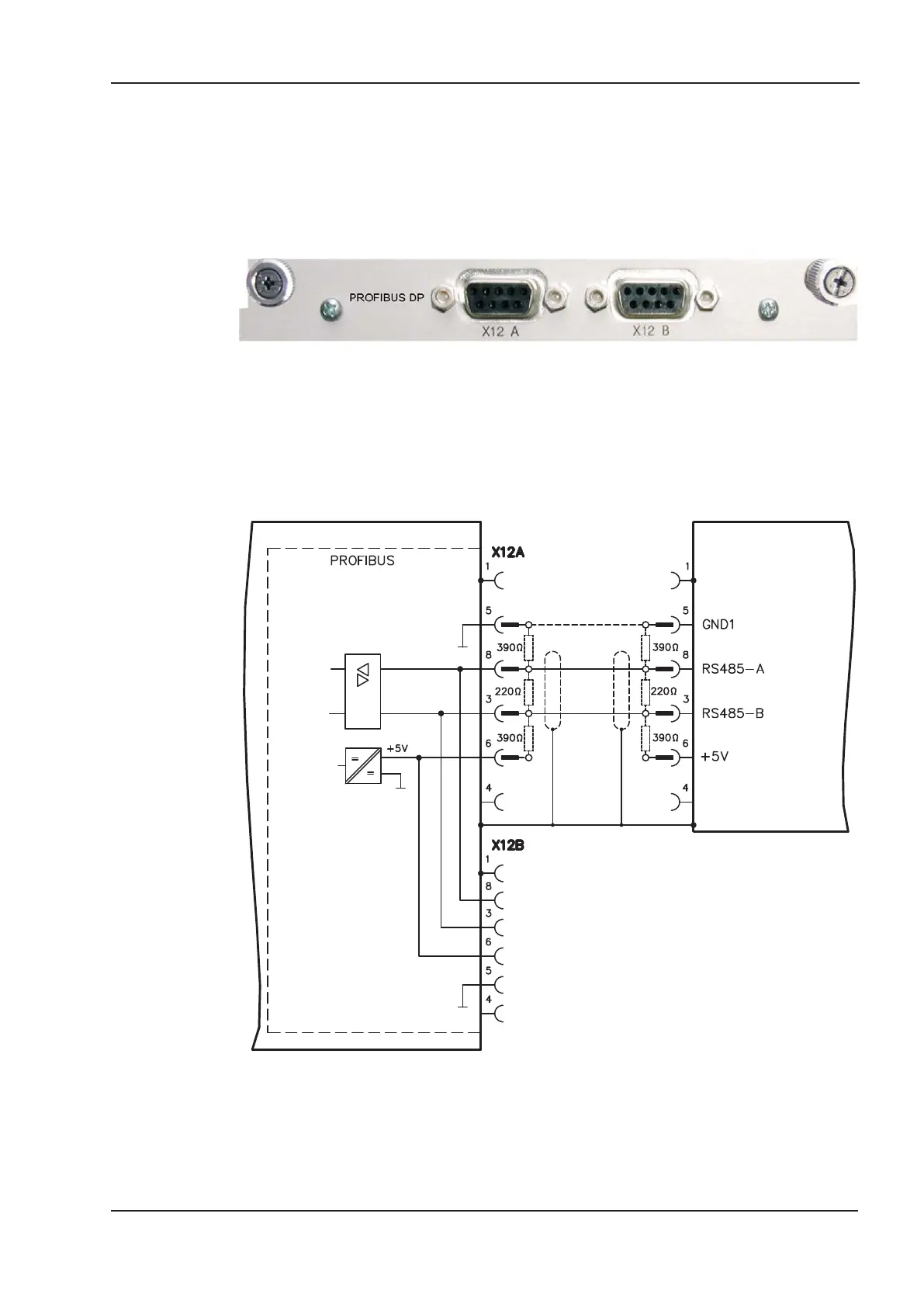

9.1.3.2 Connection diagram
S701x2-S724x2 Instructions Manual 129
Kollmorgen 07/2014 Expansions
S700
