7.12.16 Hall sensors (X1)

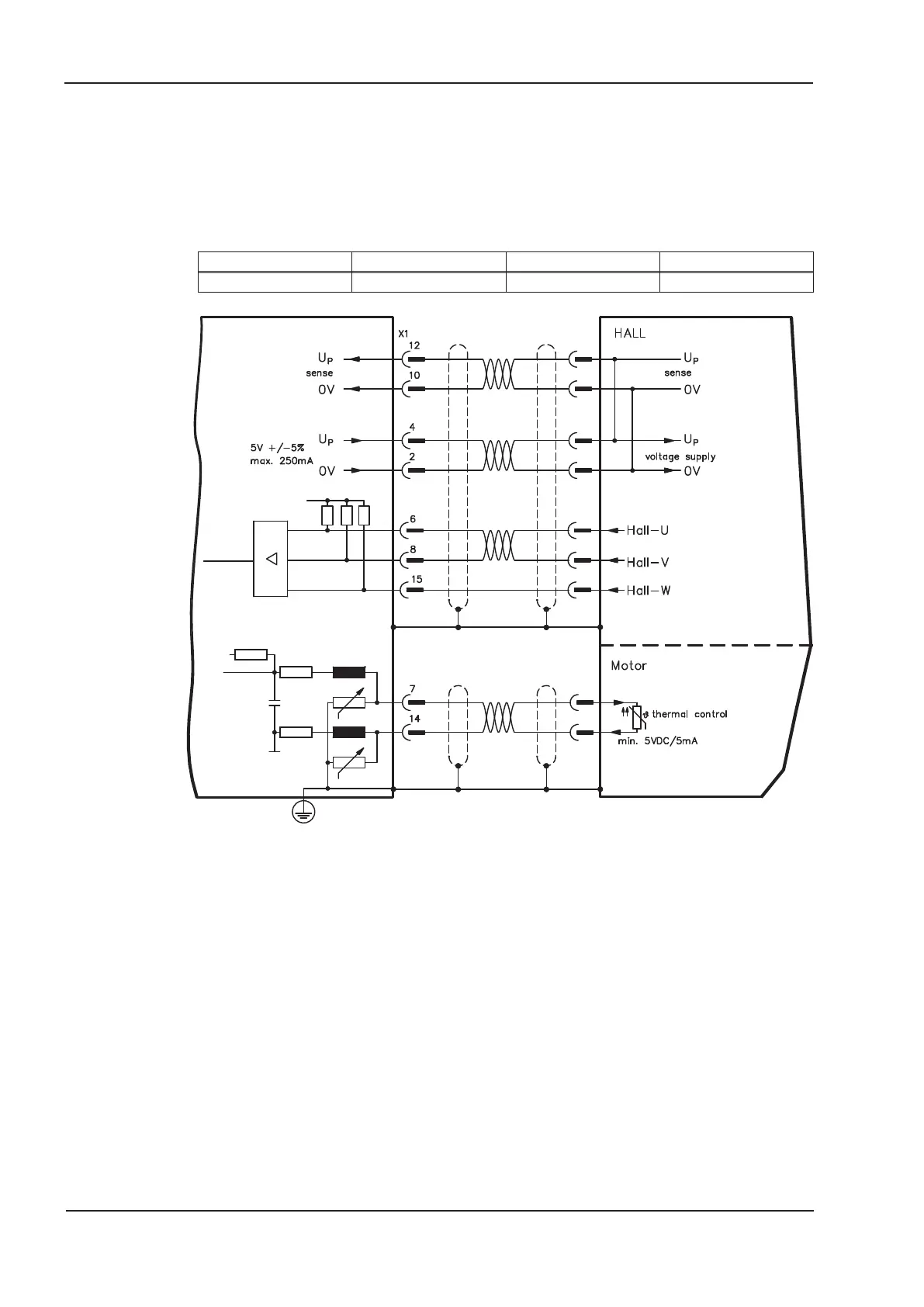

Wiring of Hall sensors as a feedback unit (primary, ð p.76).
The thermal control in the motor is connected to X1 and evaluated there. If cable lengths
of more than 25m are planned, please consult our customer service.
Frequency limit: 350 kHz
Type FBTYPE EXTPOS GEARMODE
Hall 11 - -
92 S701x2-S724x2 Instructions Manual
Electrical installation 07/2014 Kollmorgen
