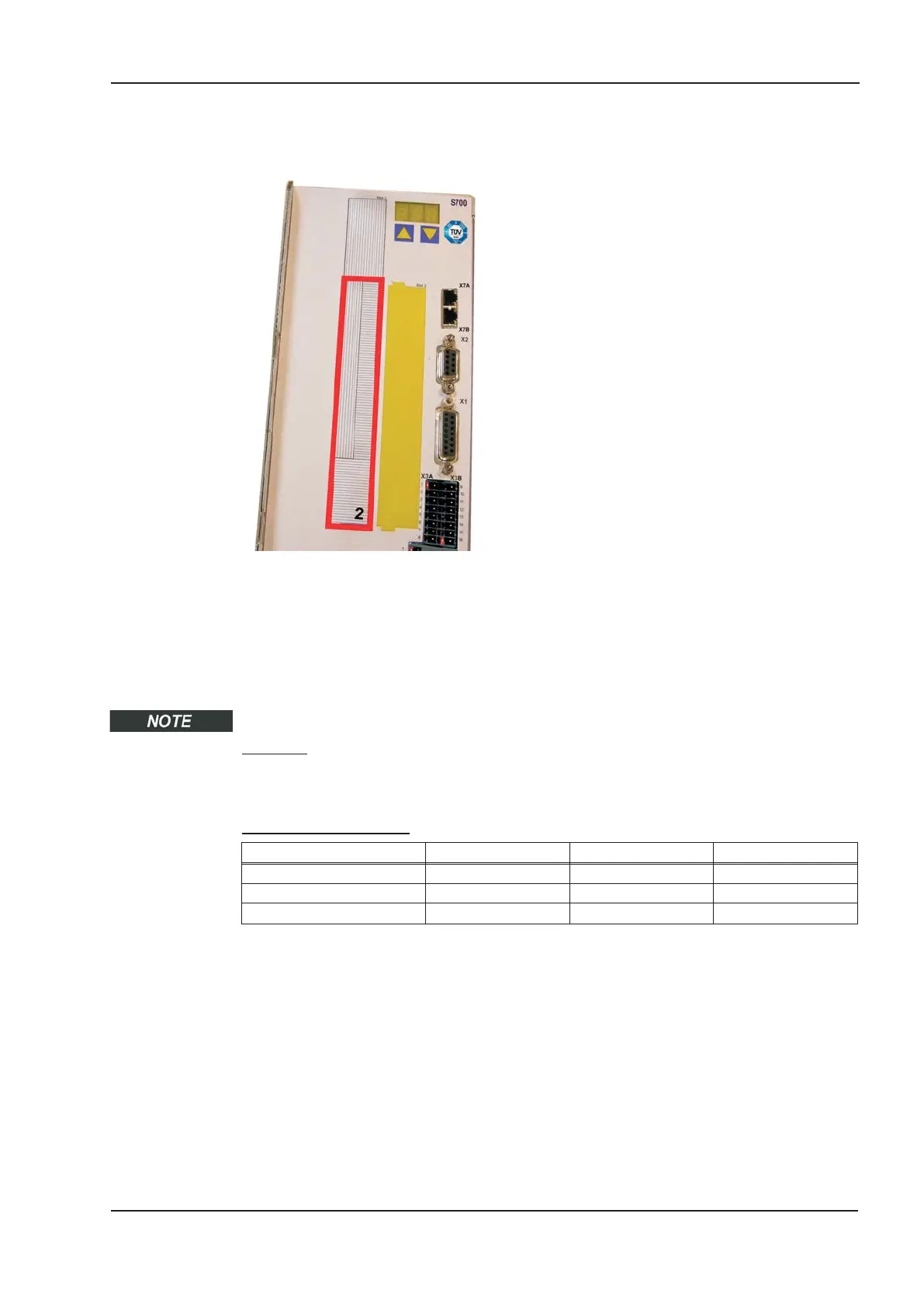

9.2 Expansion cards for slot 2
9.2.1 Guide to installation of expansion cards in slot 2
The method of installing the expansion card in slot 2
is the same as that described for slot 1 (see p.125).
l
Remove the lower crosshatched area of the
front film (labeled slot 2).
l
Lever out the cover plates under the film.
l
Push the expansion card into the slot.
l
Use the screws provided to fasten the front plate
of the expansion card in place.
9.2.2 Option "F2", controlled Fan
To reduce noise emission the servo amplifiers can be ordered with the built-in option card
F2. This option cannot be built-in later. The F2 option card fits to slot2 or 3 (see part num-
ber scheme on p.24).
Option card F2 can be used combined with a card in slot 1 even if it is plugged to slot 2!
Function
The fan is switched on and off or runs with 50% rated speed depending on temperature
and brake power. That reduces the average noise emission.
Switching temperature
Monitoring Fan off Fan ~50% Fan on
Internal temperature < 55°C ~ 58°C > 65°C
Heat sink temperature < 60°C ~ 65°C > 75°C
Brake resistor (internal) < 20W ~ 30W > 45W
S701x2-S724x2 Instructions Manual 141
Kollmorgen 07/2014 Expansions
