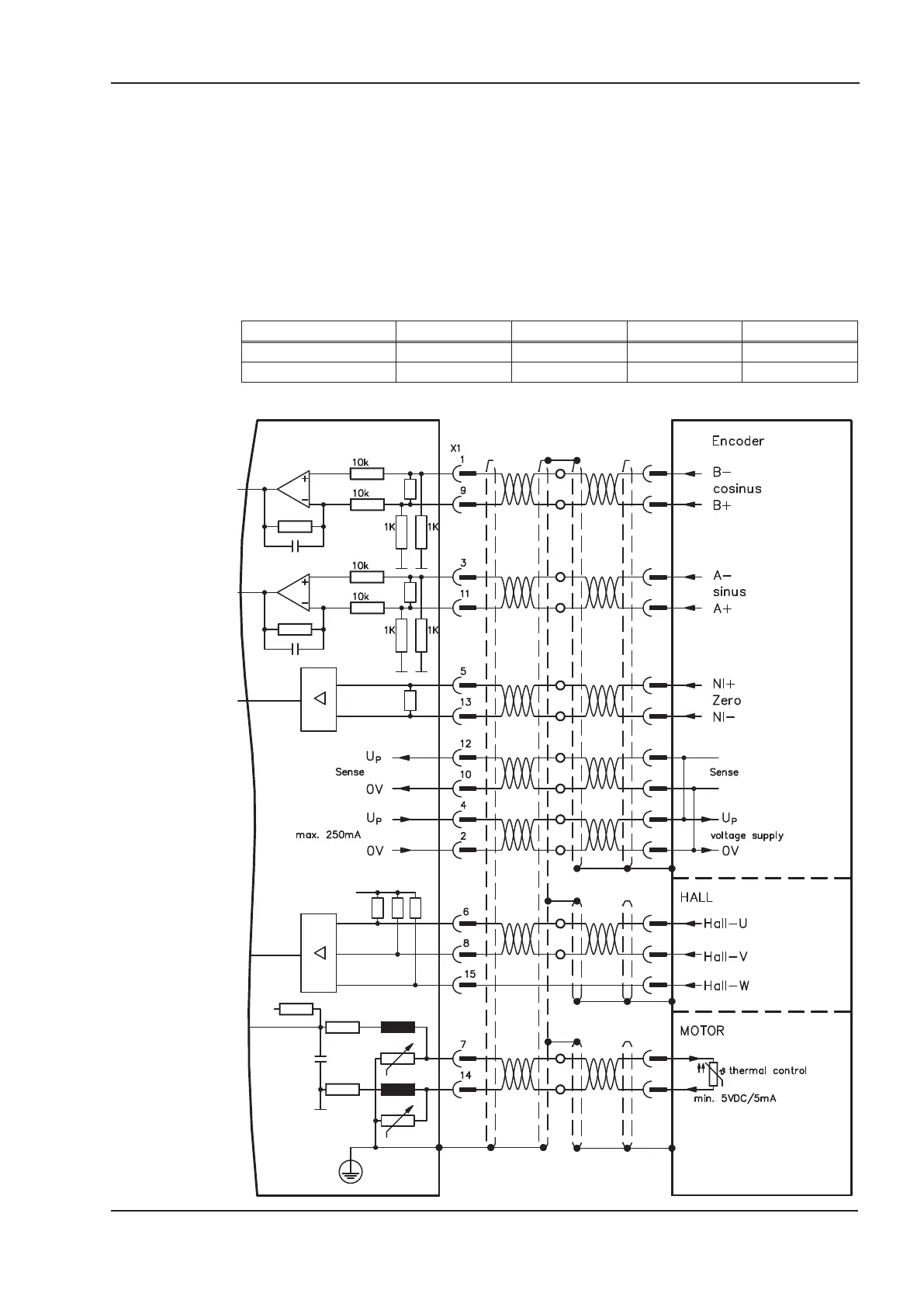

7.12.9 Sine Encoder with Hall (X1)
Feedback devices (incremental or sine-cosine), which don't deliver an absolute informa
-
tion for commutation, can be used as complete feedback system combined with an addi
-
tional Hall encoder (primary, ð p.76).
The thermal control in the motor is connected to X1 and evaluated there.
All signals are connected to X1 and evaluated there. If cable lengths of more than 25m
are planned, please consult our customer service.
Frequency limit (sin, cos): 350 kHz
Type FBTYPE EXTPOS GEARMODE Up
SinCos 5V with Hall 5 - - 5V +/-5%
SinCos 12V with Hall 6 - - 7,5...11V
