9.2.3 Expansion cards "PosI/O" & "PosI/O-Monitor"
The “PosI/O” and "PosI/O-Monitor" expansion card can be pushed into slot2 or 3. The
expansion cards cannot be combined and the use of only one slot in time is allowed.

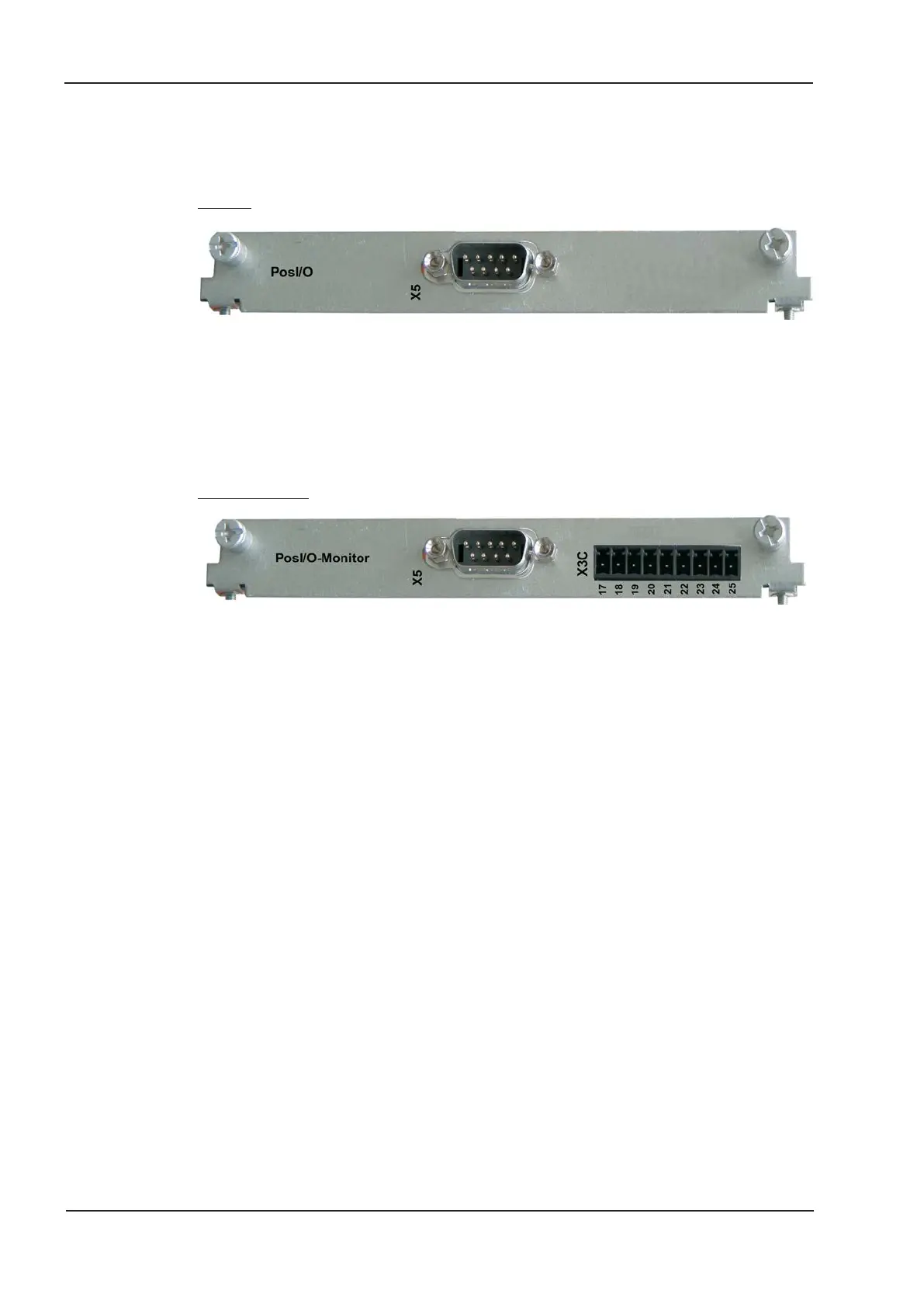

PosI/O
This expansion card provides an extra SubD connector (X5) with high-speed, bidirectio-
nal, digital, 5 V inputs and outputs. The setup software can be used to preset various
input and output functions, e.g.:
l
Position encoder emulation (ROD- or SSI-compatible)
l
Input for high-speed 5 V RS485 signals (electronic gearing, master-slave operation)
PosI/O-Monitor
This expansion card provides the features of the PosI/O card plus an extra connector
X3C with analog +/-10V Inputs and Outputs (see page 150, chapter "Analog I/O").
Functionality can be set with the setup software or with macro functions.
