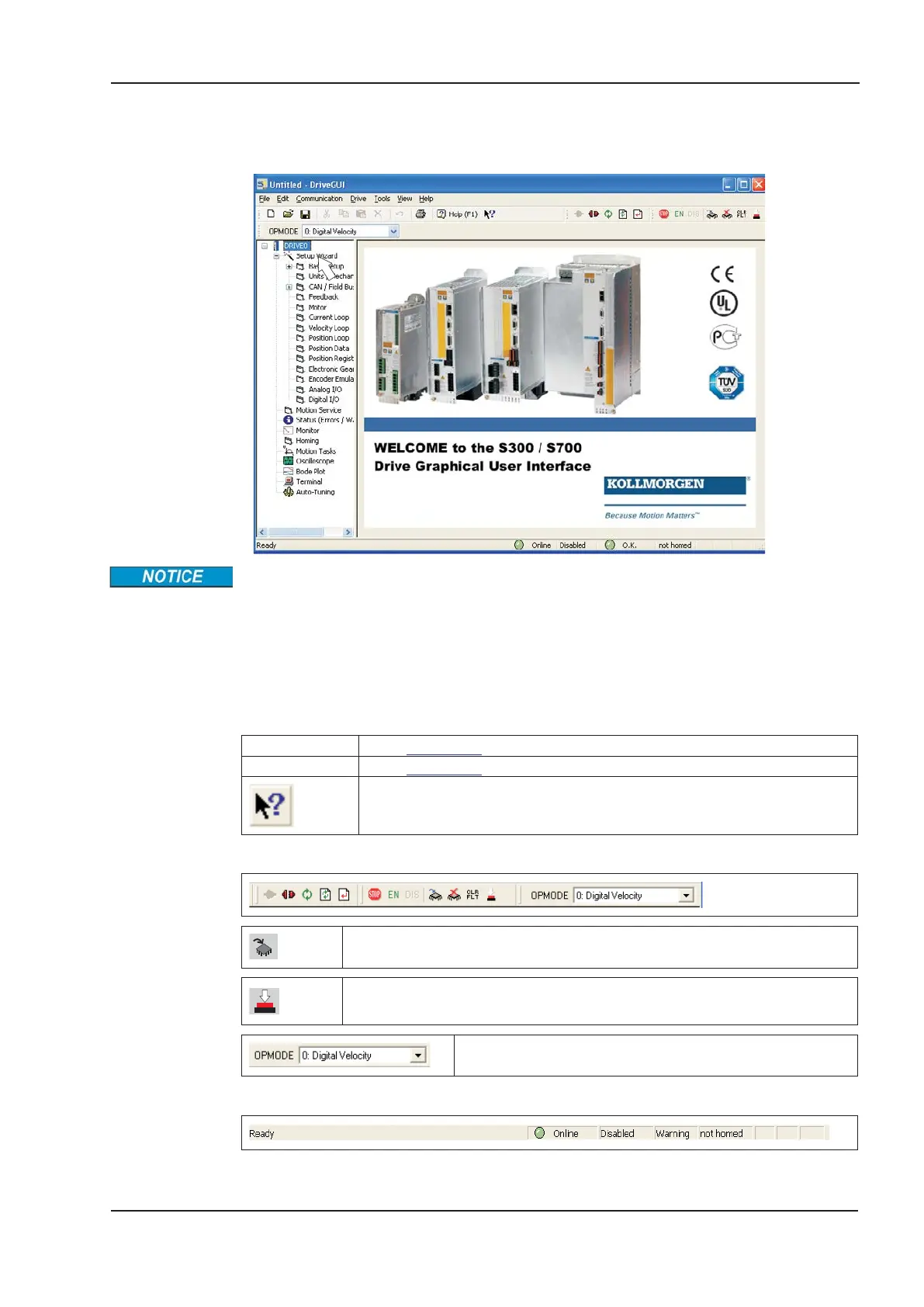

If communication works, you see the start screen. Select "Setup Wizard" in the navigation
frame.
Make sure, that the amplifier is disabled (Input Enable connector X3A pin 1 must be 0 V
or open)!
8.3.3 Important Screen Elements
Help Function
The Online-Help gives detailed information to all parameters the servo amplifier can work
with.
Key F1
Starts online help
for the actual screen page.
Menu bar Help
Starts online help
with the first page.
Context Help. Click the help symbol first. Then click the function for
which you need help.
Tool Bar
Save to EEPROM, required if you changed parameters.
Reset, required if you changed configuration parameters.
Operation Mode,
use "0: Digital Velocity" mode for drive testing.
Status Bar
The status bar shows a green Online symbol, indicating that the communication works.
