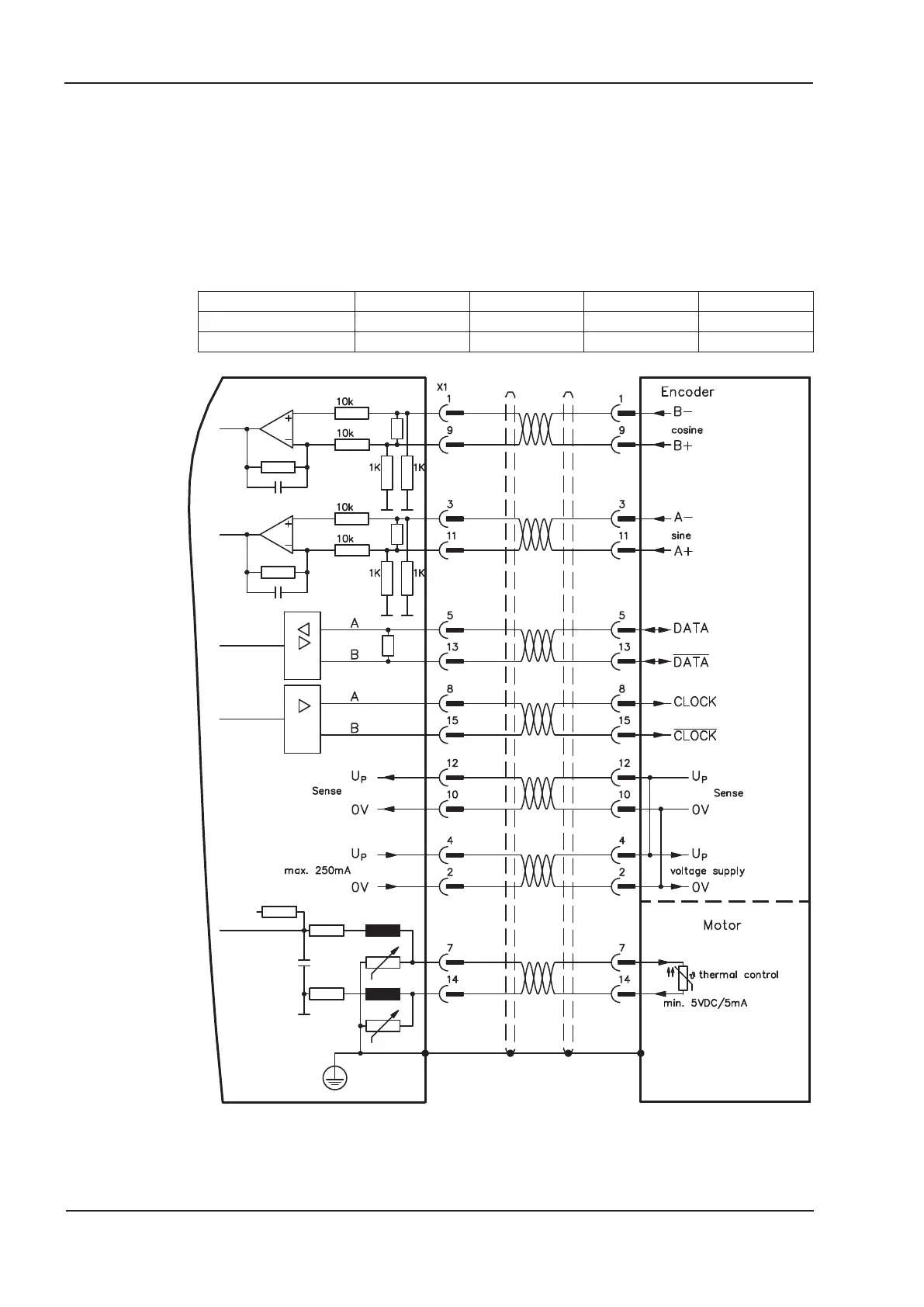

7.12.2 Sine Encoder with BiSS analog (X1)
Wiring of a single-turn or multi-turn sine-cosine encoder with BiSS interface as a feed
-
back system (primary and secondary, ð p.76).
The thermal control in the motor is connected via the encoder cable to X1 and evaluated
there. All signals are connected using our pre-assembled encoder connection cable. If
cable lengths of more than 50m are planned, please consult our customer service.
Frequency limit (sin, cos): 350 kHz
Type FBTYPE EXTPOS GEARMODE Up
5V analog (BiSS B) 23 - - 5V +/-5%
12V analog (BiSS B) 24 - - 7,5...11V
The pin assignment shown on the encoder side relates to the Kollmorgen motors.
78 S701x2-S724x2 Instructions Manual
Electrical installation 07/2014 Kollmorgen
S700
SubD 15
round, 17-pin
