7.12.3 Encoder with BiSS digital (X1)

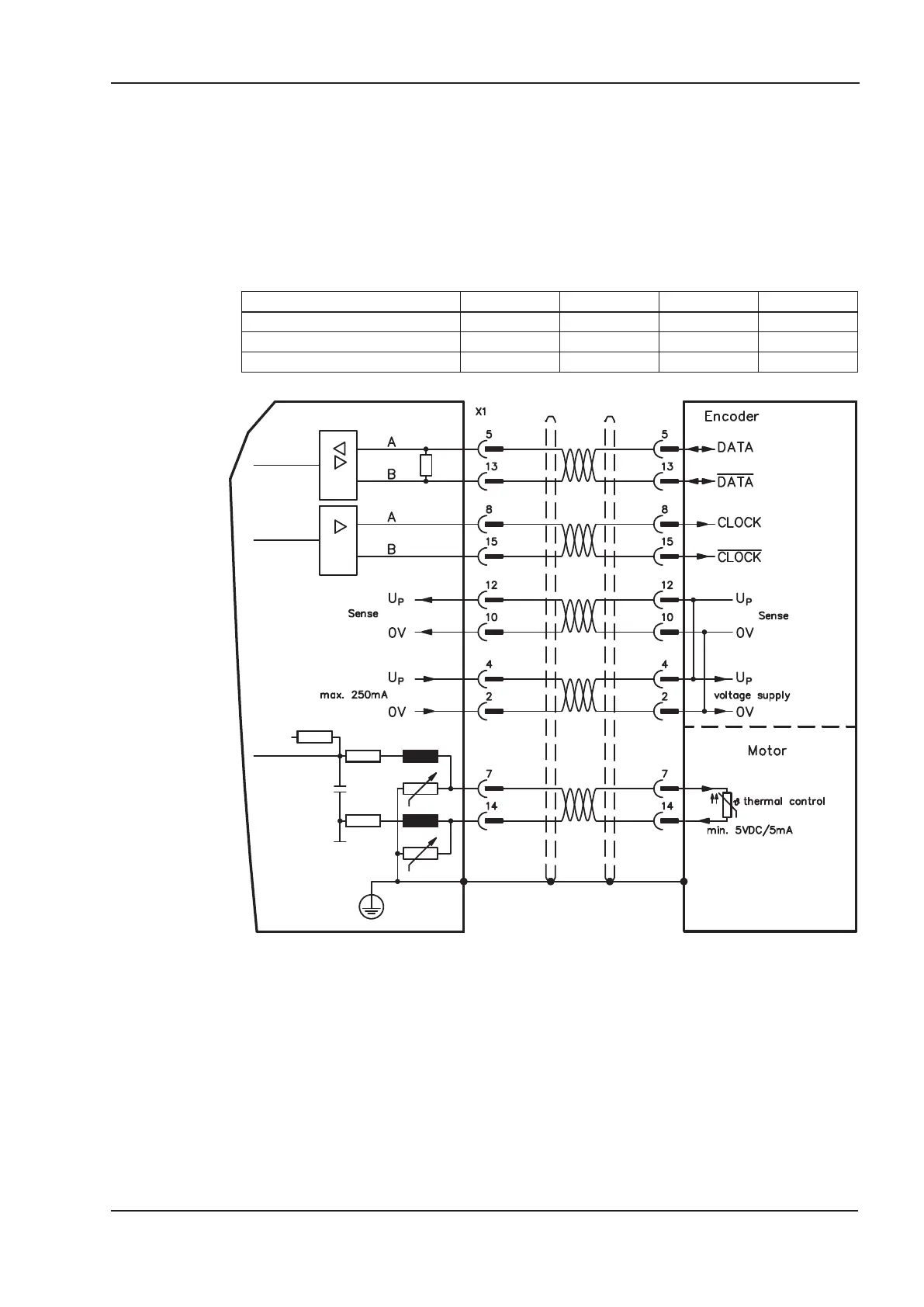

Wiring of a single-turn or multi-turn digital encoder with BiSS interface as a feedback sys
-
tem (primary and secondary, ð p.76).
The thermal control in the motor is connected via the encoder cable to X1 and evaluated
there. All signals are connected using our pre-assembled encoder connection cable. If
cable lengths of more than 50m are planned, please consult our customer service.
Frequency limit: 1,5MHz
Type FBTYPE EXTPOS GEARMODE Up
5V digital (BiSS B) 20 11 11 5V +/-5%
12V digital (BiSS B) 22 11 11 7,5...11V
5V digital (BiSS C, Renishaw) 33 12 12 5V +/-5%
The pin assignment shown on the encoder side relates to the Kollmorgen motors.
S701x2-S724x2 Instructions Manual 79
Kollmorgen 07/2014 Electrical installation
S700
SubD 15
round, 17-pin
