4 Package
4.1 Package supplied
When an amplifier from the S700 series is ordered (order numbers ðp.161), the following
is supplied:
— Servo amplifier S700
— Instruction Manual S700
— Operating Manual Safety Expansion Card Sx (in case of a built-in safety card)
— Online documentation and setup software on CD-ROM
— Mating connectors X0, X3A, X3B, X4A, X4B, X8
The mating SubD connectors are not part of the package!
Accessories :
(must be ordered separately, if required; description see accessories
manual)
— Motor cable (prefabricated) with special shield clamp, or both power connectors
separately, with the motor cable as a cut-off length
— Feedback cable (prefabricated)
or both feedback connectors separately, with the feedback cable as a cut-off length
— Motor choke 3YL or 3YLN, for motor cables longer than 25 meters
— External brake resistor BAR(U), Capacitor Modul KCM-x
— Communication cable to the PC (ð p.102) for setting parameters from a PC
— Power cable, control cables, fieldbus cables (as cut-off lengths)

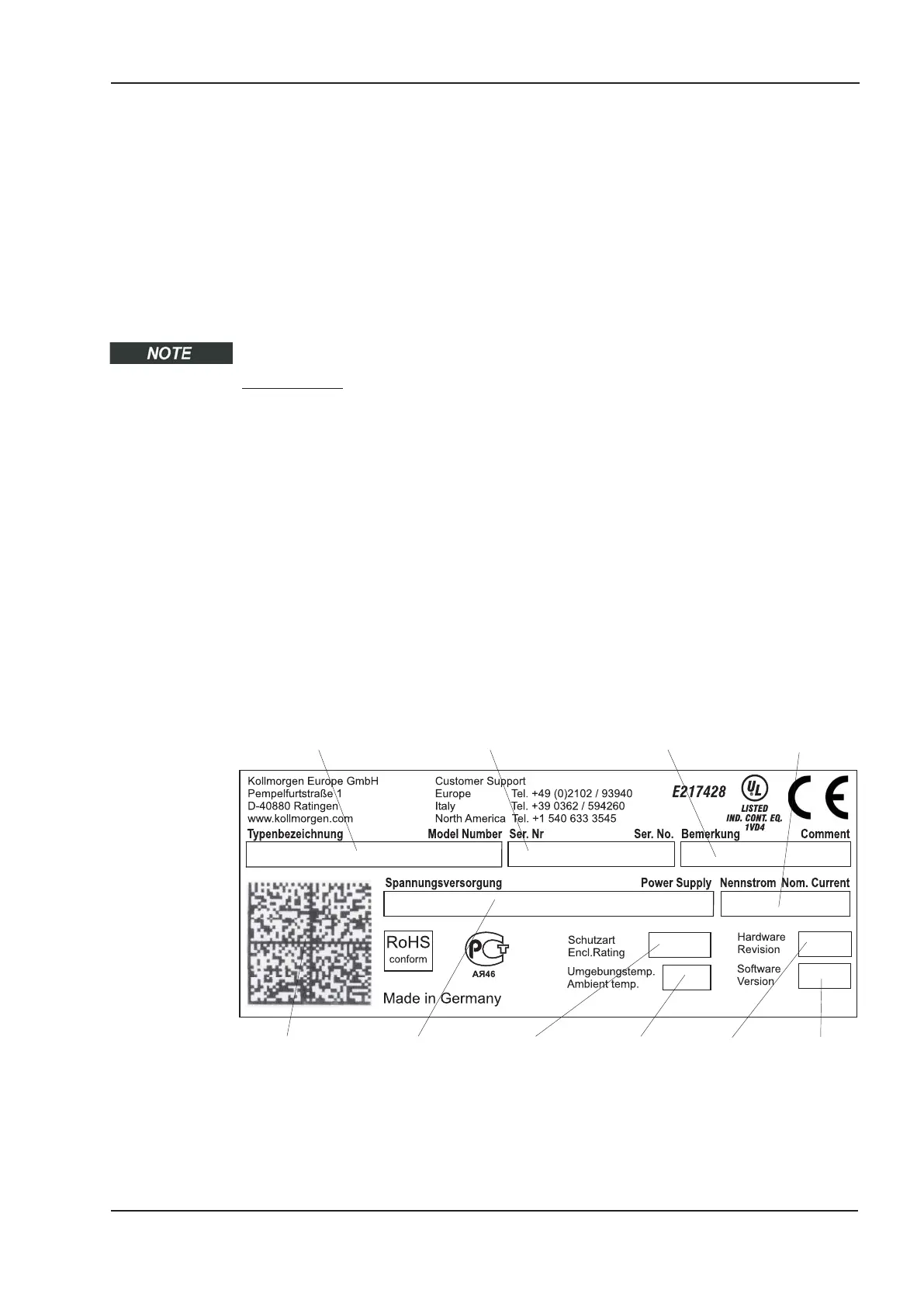

4.2 Nameplate
The nameplate depicted below is attached to the side of the servo amplifier.
The information described below is printed in the individual fields.
S701x2-S724x2 Instructions Manual 23
Kollmorgen 07/2014 Package
CommentsSerial number
Servo amplifier type
2D bar code
Enclosure
Rating
Hardware
Revision
Output current
in cont. operation
Electrical supply
Installed load
Software
Version
max. ambient
temperature
