824| Controllers
Assigning the Expression pedal to the Sounds
Expression is a relative level control, always subtracted from the Volume
value. It can be assigned to any continuous pedal (also called a Volume/
Expression pedal).
As an example, imagine you have a Piano sound assigned to Upper 1, and a
Strings sound assigned to Upper 2. If you turn the Expression switch on on
Upper 2, and off on Upper 1, you can use a continuous pedal to control only
the Strings’ volume, while the Piano remains unchanged.

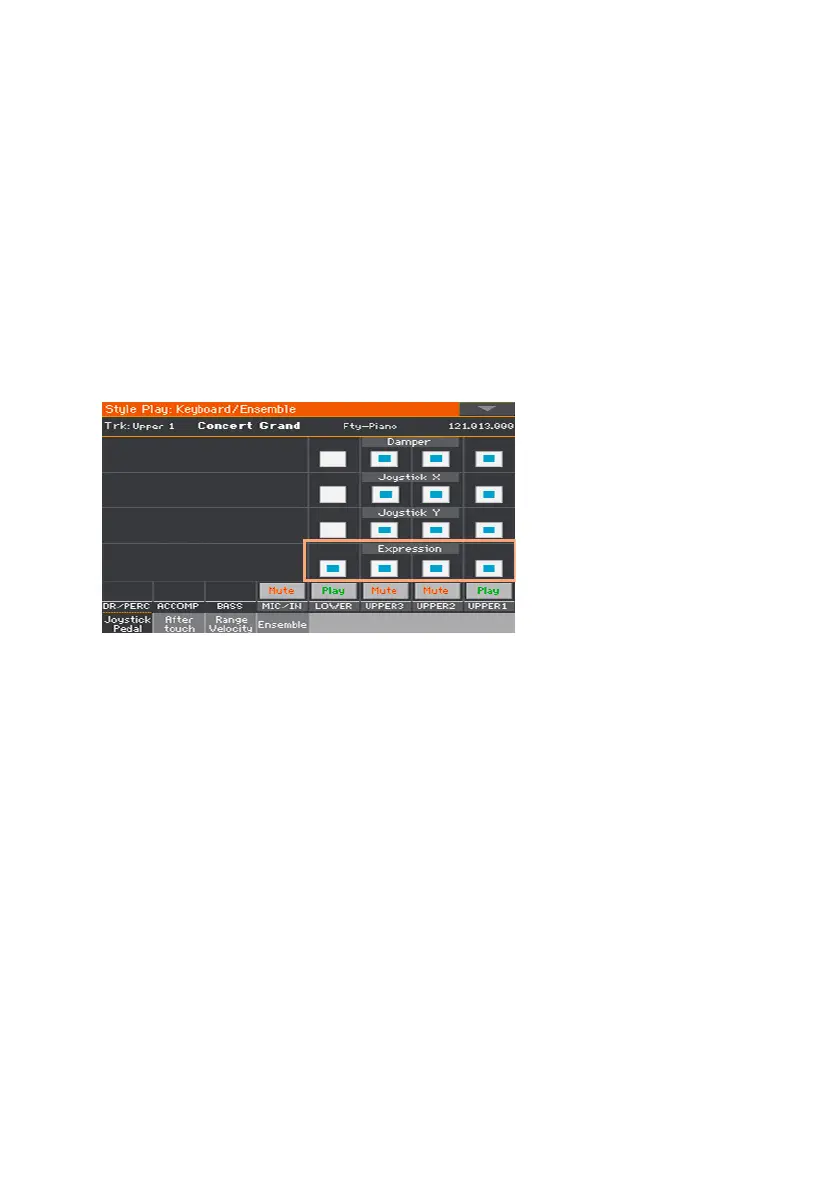

1 Go to the Keyboard/Ensemble > Joystick/Pedal page.
2 Use the Expression checkbox to turn the Expression pedal on/off on each
Keyboard Sound.
3 Write the changes to a Keyboard Set.
Setting the Glide time
Glide is a control you can assign to a footswitch. When the pedal is pressed,
affected notes on Upper parts are bent down, according to settings for the
Pitch Bend on the same parts. When the pedal is released, notes return to
the normal pitch, at the speed defined by the Time parameter.
Change the Pitch Bend values
1 Go to the Mixer/Tuning > Tuning page.

Korg PA1000 Specifications

General

Sound Engine	EDS-X (Enhanced Definition Synthesis-eXpanded)
Polyphony	128 voices
Keyboard	61 keys with velocity and aftertouch
Display	7-inch TFT display
Song Player	MP3, SMF (Standard MIDI File), KAR
Storage	960 MB
Connectivity	USB, MIDI, Audio In/Out
Weight	10.75 kg (23.7 lbs)
Effects	148 effect types
Sounds	Over 1, 750 Factory Sounds, 107 Drum Kits
User PCM Sample Memory	600 MB
Style Tracks	8 tracks
Chord Sequencer	Yes
Pads	4 Assignable Pads
Lyrics	MID, KAR, MP3+Lyrics
Sequencer	16 tracks
SongBook	Fully programmable music database
Multi Pad	4 Assignable Pads
Connections	Audio In, Line Out
Clock	Internal
Power Supply	AC adapter
