Korg PA1000 User Manual

460| Customizing and editing the Sounds
Recording samples or audio grooves
Connecting the sources and setting the levels
Before starting to record, prepare the sources to be sampled.
Connecting the source and accessing Sampling
1 With its MASTER VOLUME control set to zero, connect the source to be
sampled (for example, a microphone or a CD player) to the relevant audio
input(s) on the rear of the instrument. When the source has been connected,
move the MASTER VOLUME control to a position other than zero.
2 Go to the Global > Audio & Video > Audio In page to set the signal routing for
the input source.
3 Press the SOUND button to access Sound mode, then press the RECORD
button to access Sampling mode.

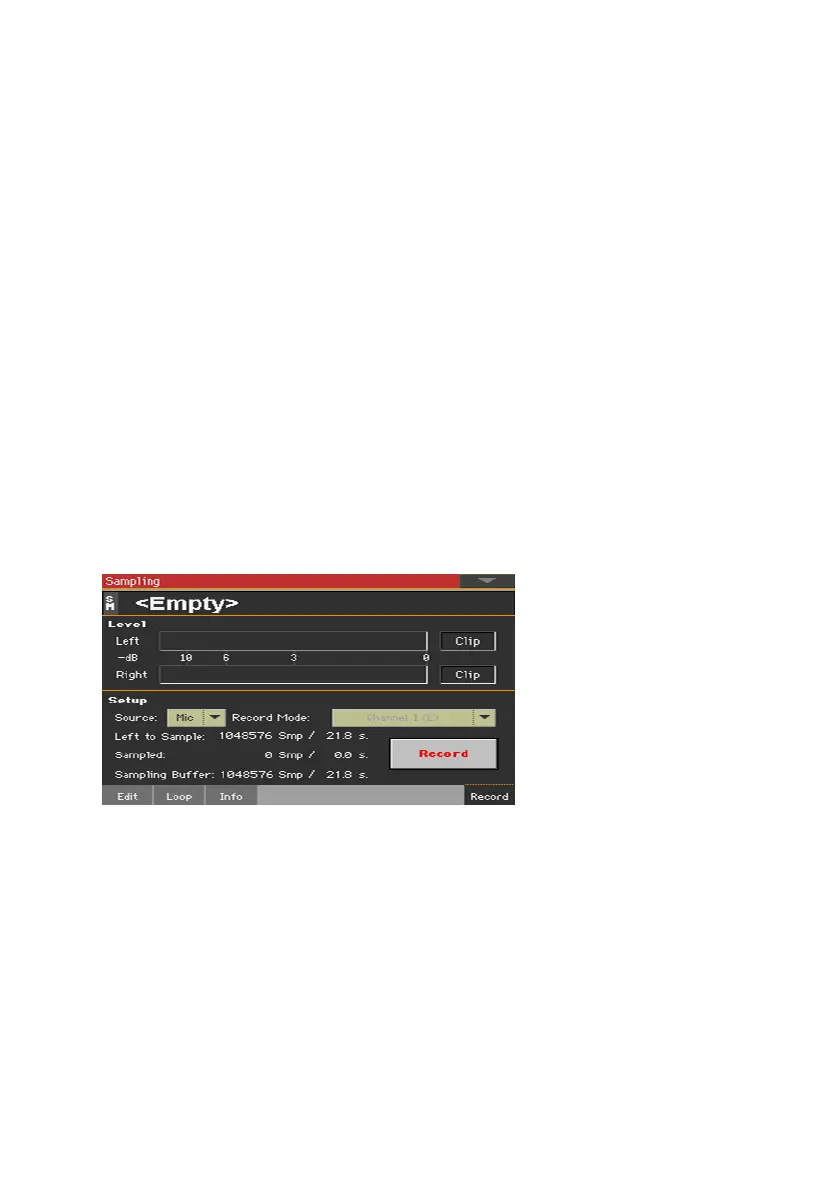

4 Go to the Sample > Record page.
Enabling the source and adjusting the levels
1 Use the Source pop-up menu to choose the input source.
2 If you are recording from the line inputs, use the Record Mode pop-up menu
to choose one or both stereo channels.
3 Adjust the source’s volume. If you are recording with a microphone, use the
MIC/GTR GAIN knob of the back of the instrument. If you are sampling from
a line source (like a CD player or another instrument), set the source’s own
output level. If possible, set the output level of the source to be sampled to
the maximum.

Korg PA1000 Specifications

General

Sound Engine	EDS-X (Enhanced Definition Synthesis-eXpanded)
Polyphony	128 voices
Keyboard	61 keys with velocity and aftertouch
Display	7-inch TFT display
Song Player	MP3, SMF (Standard MIDI File), KAR
Storage	960 MB
Connectivity	USB, MIDI, Audio In/Out
Weight	10.75 kg (23.7 lbs)
Effects	148 effect types
Sounds	Over 1, 750 Factory Sounds, 107 Drum Kits
User PCM Sample Memory	600 MB
Style Tracks	8 tracks
Chord Sequencer	Yes
Pads	4 Assignable Pads
Lyrics	MID, KAR, MP3+Lyrics
Sequencer	16 tracks
SongBook	Fully programmable music database
Multi Pad	4 Assignable Pads
Connections	Audio In, Line Out
Clock	Internal
Power Supply	AC adapter
