Connecting the audio inputs |505
Setting the routing and mixing the effects
Selecting the impedance and routing
By default, the audio inputs are enabled for a microphone. You can use the
following procedure to select a different input impedance and signal routing,
or re-enable the microphone input.

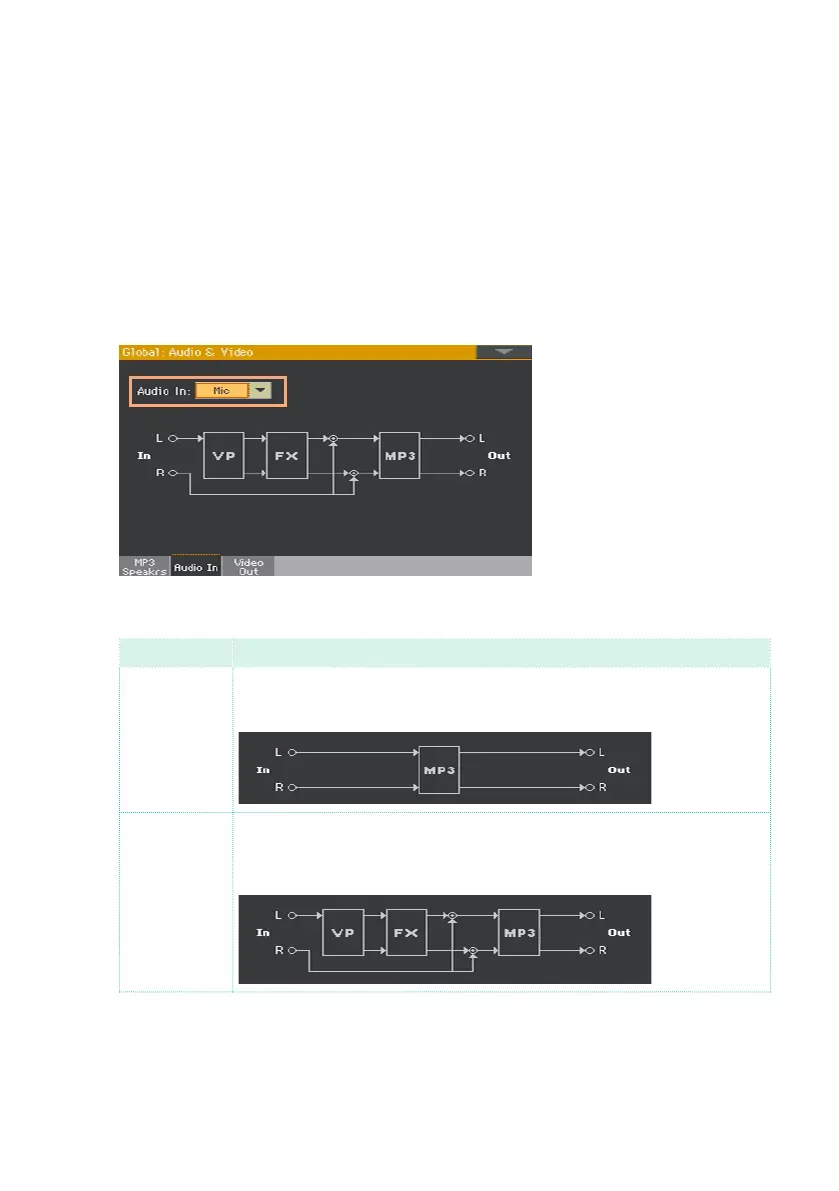

1 Go to the Global > Audio & Video > Audio In page.
2 Use the Audio In pop-up menu to choose the correct routing and impedance.
Audio In Meaning
Line The LEFT and RIGHT audio inputs will go to the final mix, together with the
sounds generated by Pa1000. No Voice or Guitar Processor effect will be ap-
plied. The audio inputs will also go to the internal MP3 recorder.
Mic The LEFT audio input will go to the Voice Processor, then to the final mix,
together with the sounds generated by Pa1000. The RIGHT audio signal will
be replicated on both audio outputs. Both inputs will be recorded when re-
cording an MP3 Song.

Korg PA1000 Specifications

General

Sound Engine	EDS-X (Enhanced Definition Synthesis-eXpanded)
Polyphony	128 voices
Keyboard	61 keys with velocity and aftertouch
Display	7-inch TFT display
Song Player	MP3, SMF (Standard MIDI File), KAR
Storage	960 MB
Connectivity	USB, MIDI, Audio In/Out
Weight	10.75 kg (23.7 lbs)
Effects	148 effect types
Sounds	Over 1, 750 Factory Sounds, 107 Drum Kits
User PCM Sample Memory	600 MB
Style Tracks	8 tracks
Chord Sequencer	Yes
Pads	4 Assignable Pads
Lyrics	MID, KAR, MP3+Lyrics
Sequencer	16 tracks
SongBook	Fully programmable music database
Multi Pad	4 Assignable Pads
Connections	Audio In, Line Out
Clock	Internal
Power Supply	AC adapter
