4-16 LeeBoy 8510E Conveyor Paver
Operation
Continue to monitor surrounding areas
during the process. If unsafe conditions develop,
shut the unit off immediately.
4. Parked Regeneration is complete when the
controller screen shows the following green popup
message. (Figure 4-28) Click on the soft key
to remove the popup message. Once the Parked
Regeneration process is complete the engine
will automatically return to normal idle speed. The
machine can return to normal usage.

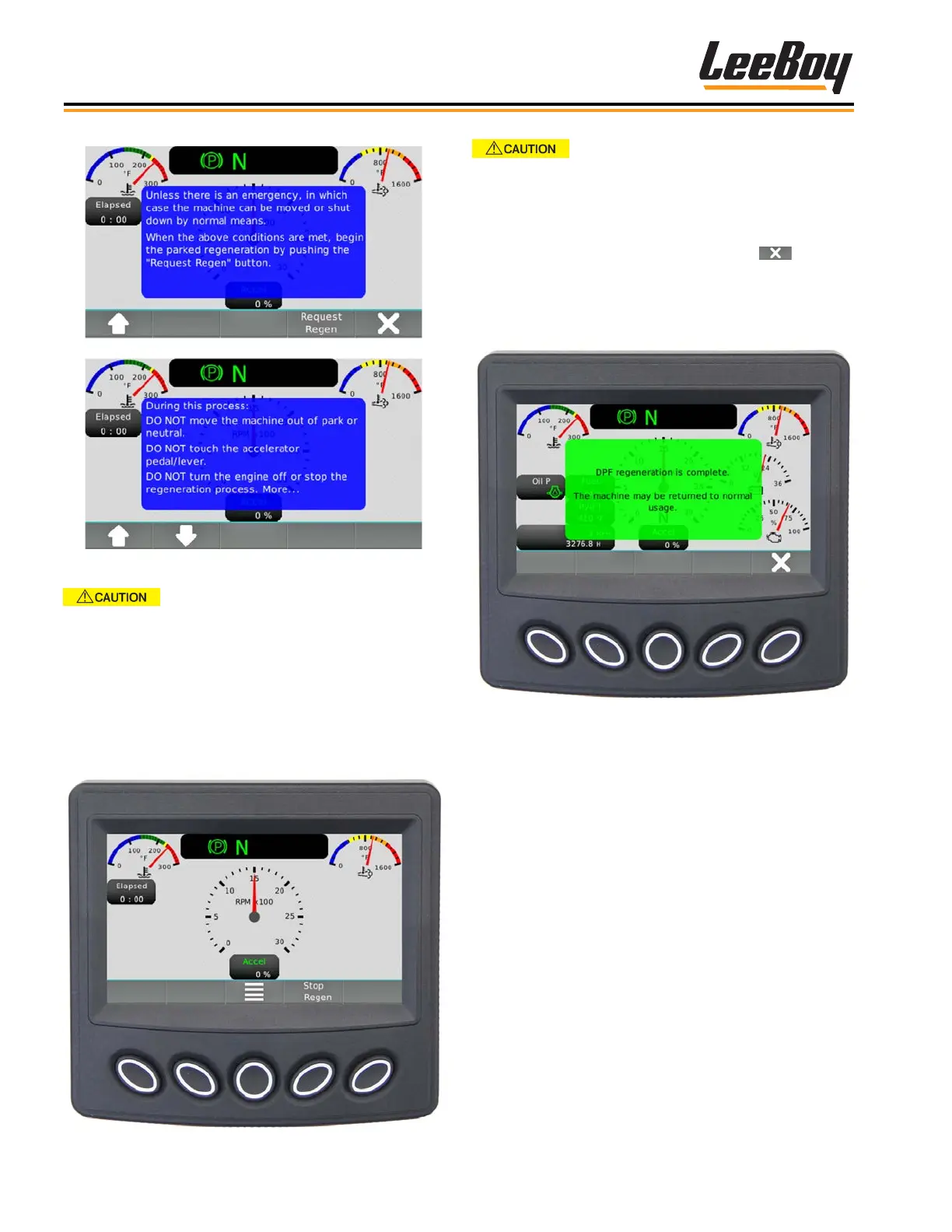

Figure 4-28. Parked Regeneration Green Popup
Message Screen
Figure 4-26. Parked Regeneration Message Screens
DO NOT ATTEMPT TO OPERATE
THE UNIT, CHANGE ENGINE RPM OR MOVE FROM
PARK/NEUTRAL WHILE REGEN IS OCCURRING. This
will abort the Regeneration process and require you
to start the process over.
During the regeneration, the Engine Speed will increase
and there may be a noticeable sound difference. The
HEST Lamp will appear during the process. (Figure
4-27)
Figure 4-27. Stop Regen Screen
