64 Legrand PDU User Guide

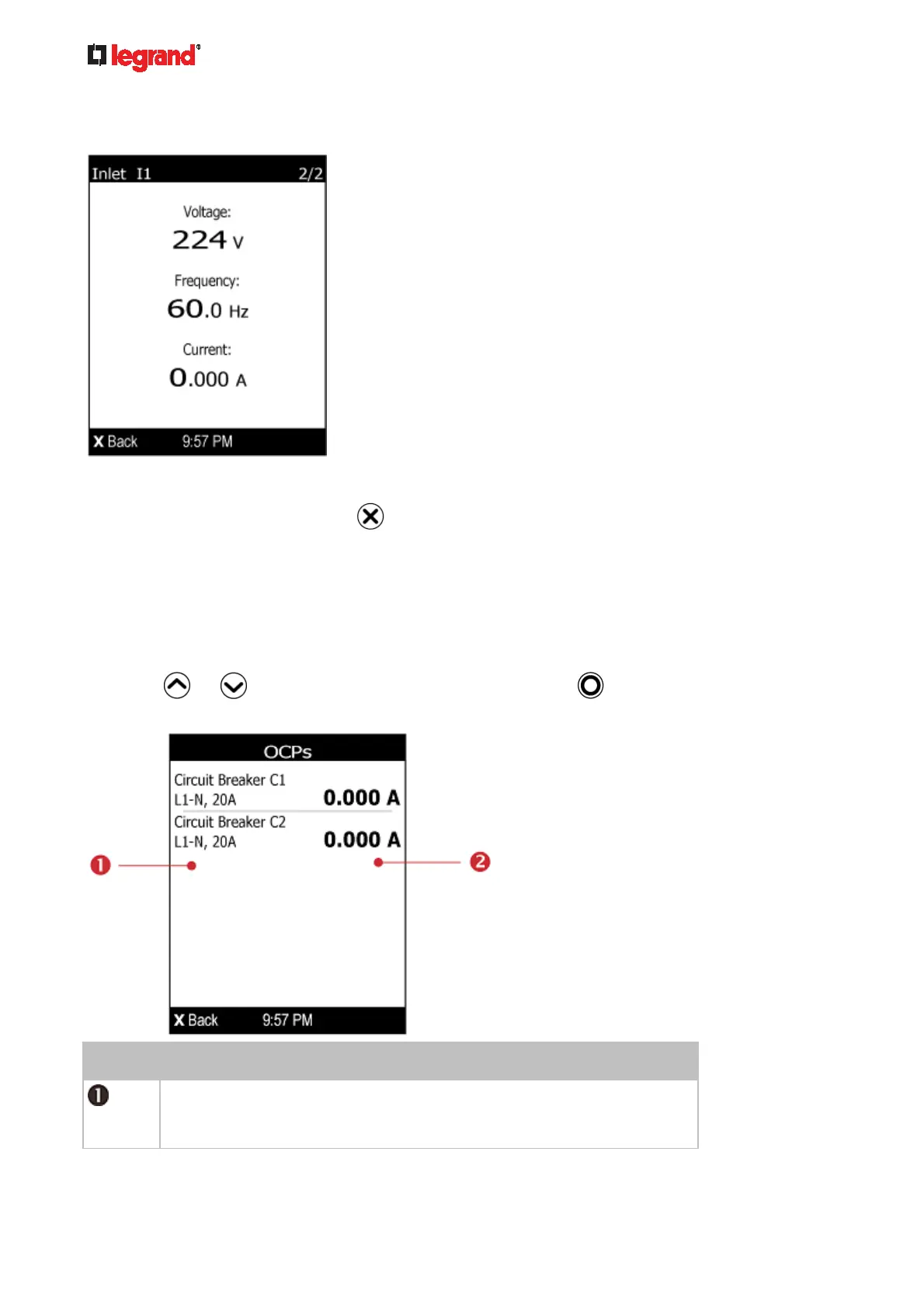

For a single-phase model, the second page shows the inlet's voltage (V), frequency (Hz) and current
(A).
For a three-phase model, the next several pages respectively show unbalanced current's percentage,
line frequency, and the current and voltage values of each line.
4. To return to the Main Menu, press
.
OCPs
If your model has more overcurrent protectors (OCPs) than the LCD display can show at a time, a page
number appears in the top-right corner of the display. Otherwise, no page numbers are available.
To show the overcurrent protector information:
1. Press
or to select "OCPs" in the Main Menu, and press .
2. The LCD display shows a list of overcurrent protectors similar to the following diagram.
Number Description
Overcurrent protector names.
Associated lines and rated current are displayed below each overcurrent
protector's name.
