DHCP Snooping
– 299 –
Web Interface
To display port authenticator statistics for 802.1X:
1. Click Security, Port Authentication.
2. Select Show Statistics from the Step list.

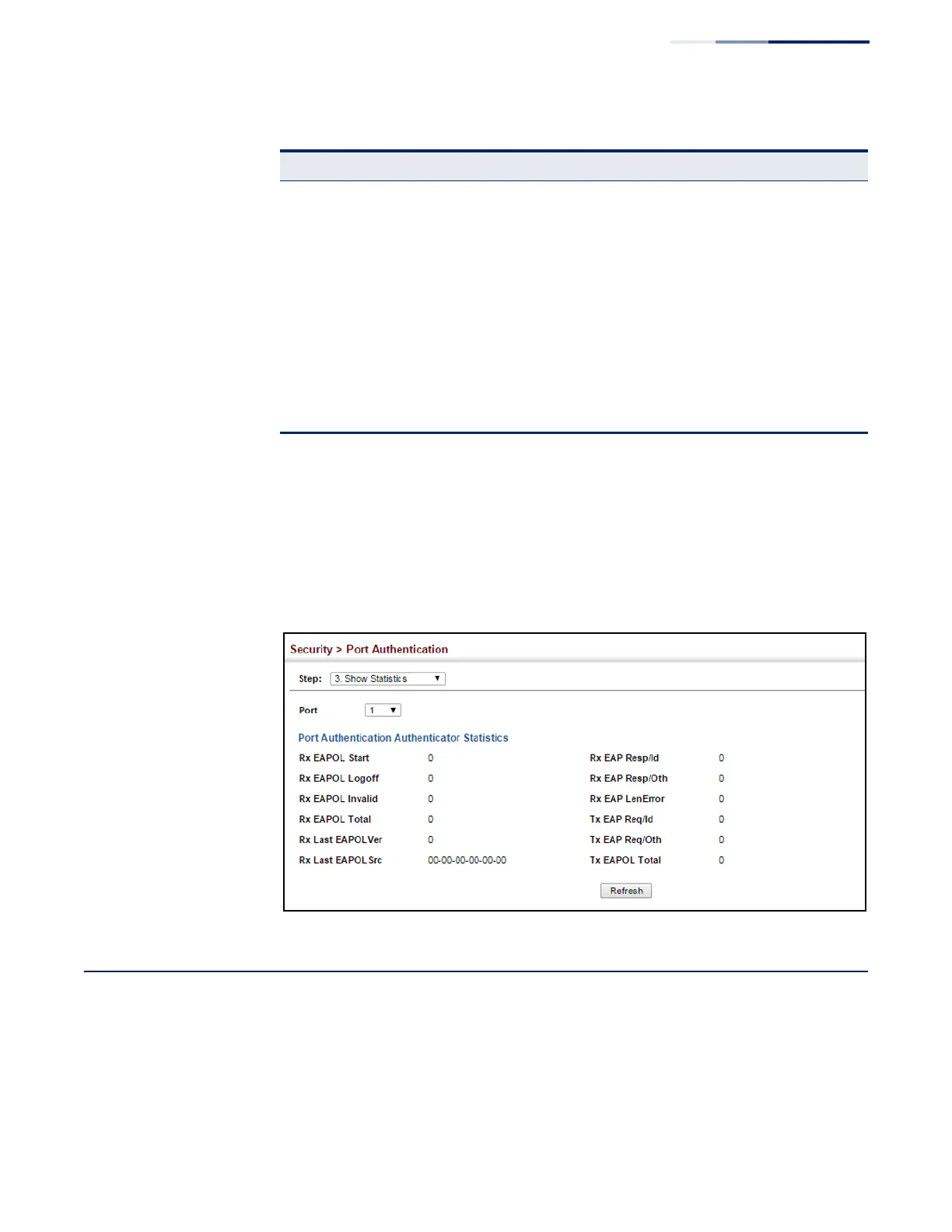

Figure 190: Showing Statistics for 802.1X Port Authenticator
DHCP Snooping
The addresses assigned to DHCP clients on insecure ports can be carefully
controlled using the dynamic bindings registered with DHCP Snooping (or using
the static bindings configured with IP Source Guard). DHCP snooping allows a
switch to protect a network from rogue DHCP servers or other devices which send
port-related information to a DHCP server. This information can be useful in
tracking an IP address back to a physical port.
Rx EAP LenError The number of EAPOL frames that have been received by this
Supplicant in which the Packet Body Length field is invalid.
Tx EAPOL Total The number of EAPOL frames of any type that have been
transmitted by this Supplicant.
Tx EAPOL Start The number of EAPOL Start frames that have been transmitted by
this Supplicant.
Tx EAPOL Logoff The number of EAPOL Logoff frames that have been transmitted by
this Supplicant.
Tx EAP Req/Id The number of EAP Req/Id frames that have been transmitted by
this Supplicant.
Tx EAP Req/Oth The number of EAP Request frames (other than Req/Id frames) that
have been transmitted by this Supplicant.
Table 19: 802.1X Statistics (Continued)
Parameter Description
