COMMAND USAGE
◆ Source MAC addresses can be mapped to only one VLAN ID.
◆ Configured MAC addresses cannot be broadcast or multicast addresses.
◆ When MAC-based and protocol-based VLANs are both enabled, priority is applied in this
sequence, and then port-based VLANs last.
PARAMETERS
These parameters are displayed:
◆ MAC Address – A source MAC address which is to be mapped to a specific VLAN. The
MAC address must be specified in the format xx-xxxx-xx-xx-xx.
◆ VLAN ID – VLAN to which ingress traffic matching the specified source MAC address is
forwarded. (Range: 1-4093)
◆ Port Members – The ports assigned to this VLAN.

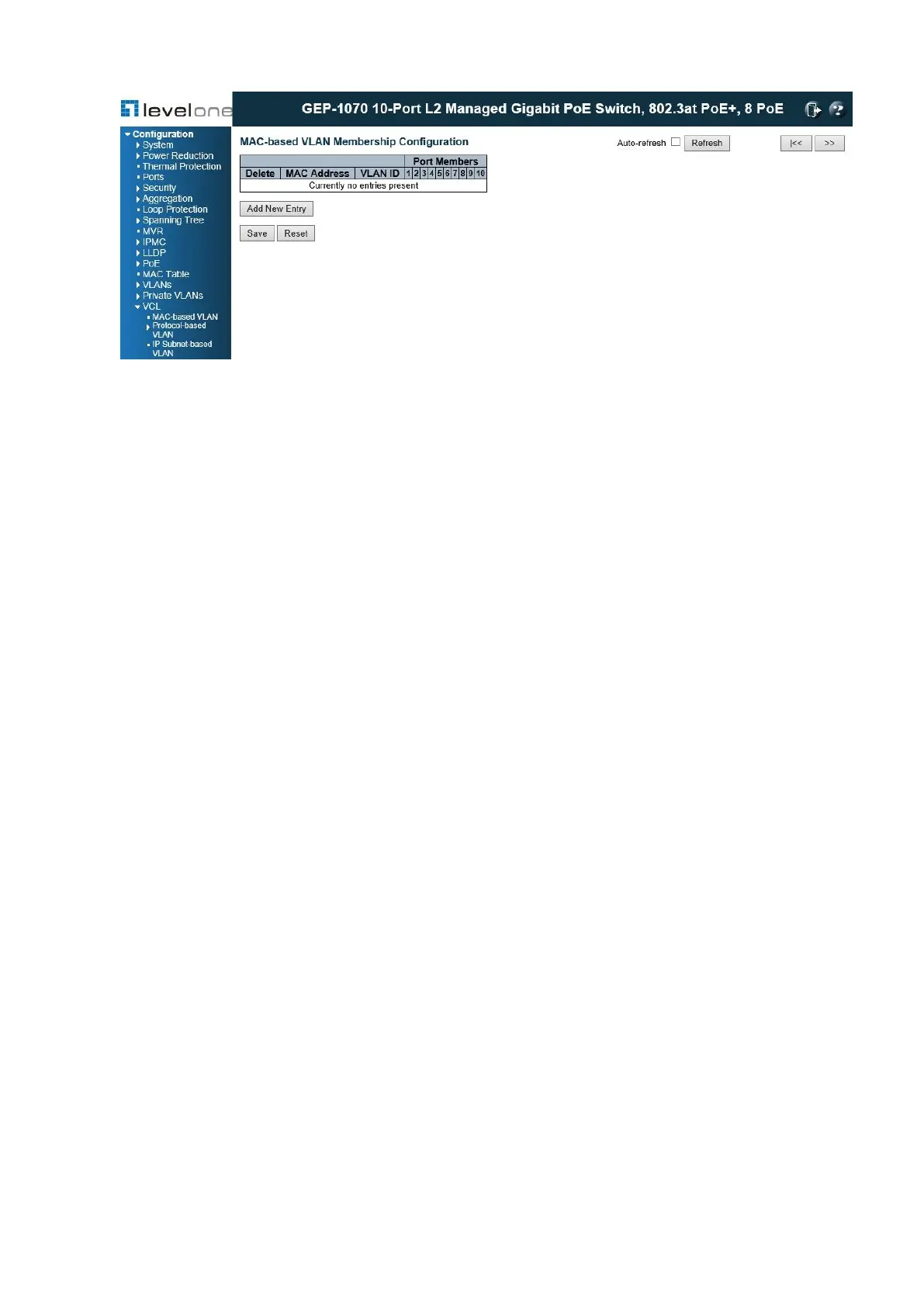

WEB INTERFACE
To map a MAC address to a VLAN:
1. Click Configuration, VCL, MAC-based VLANs.
2. Enter an address in the MAC Address field.
3. Enter an identifier in the VLAN field. Note that the specified VLAN need not be configured.
4. Specify the ports assigned to this VLAN.
5. Click Save.
Protocol-based VLAN
The network devices required to support multiple protocols cannot be easily grouped into a
