187
PARAMETERS
These parameters are displayed:

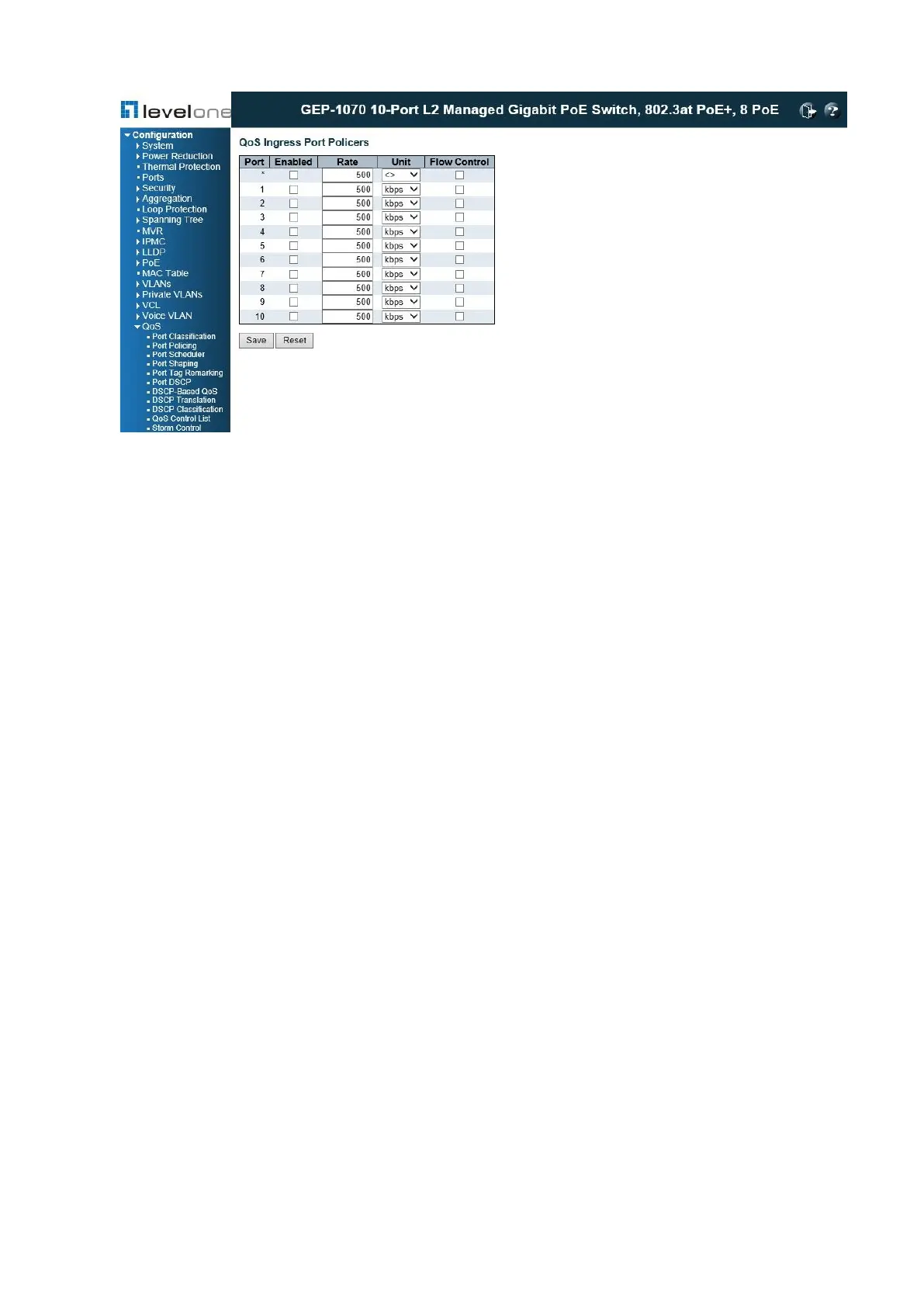

QoS Ingress Port Policing
◆ Port – The port number for which the configuration below applies.
◆ Enabled – Controls whether the policer is enabled on this switch port.
◆ Rate – Controls the rate for the policer. The default value is 500. This value is restricted to
100-1000000 when the "Unit" is "kbps" or "fps", and it is restricted to 1-3300 when the
"Unit" is "Mbps" or "kfps".
◆ Unit – Controls the unit of measure for the policer rate as kbps, Mbps, fps or kfps . The
default value is "kbps".
◆ Flow Control – If flow control is enabled and the port is in flow control mode, then pause
frames are sent instead of discarding frames.
WEB INTERFACE
To set the basic QoS parameters for a port:
1. Click Configuration, QoS, Port Policing.
2. Set any of the ingress port QoS Policing parameters.
3. Click Save.
Configuring Egress Port Scheduler
This page shows an overview of the QoS Egress Port Schedulers, including the queue mode
