PARAMETERS
These parameters are displayed:
◆Port – Port Identifier.
◆ LACP – Shows LACP status:
■ Yes – LACP is enabled and the port link is up.
■ No – LACP is not enabled or the port link is down.
■ Backup – The port could not join the aggregation group but will join if other port leaves.
Meanwhile it's LACP status is disabled.
◆ Key – Current operational value of the key for the aggregation port. Note that only ports
with the same key can aggregate together.
◆ Aggr ID – The Aggregation ID assigned to this LAG.
◆ Partner System ID – LAG partner's system ID assigned by the LACP protocol (i.e., its
MAC address).
◆ Partner Port – The partner port connected to this local port.
WEB INTERFACE
To display LACP status for local ports this switch, click Monitor, LACP, Port Status.
Displaying LACP Port Statistics
Use the LACP Port Statistics page to display statistics on LACP control packets crossing on
each port.
PATH
Monitor \ LACP \ Port Statistics

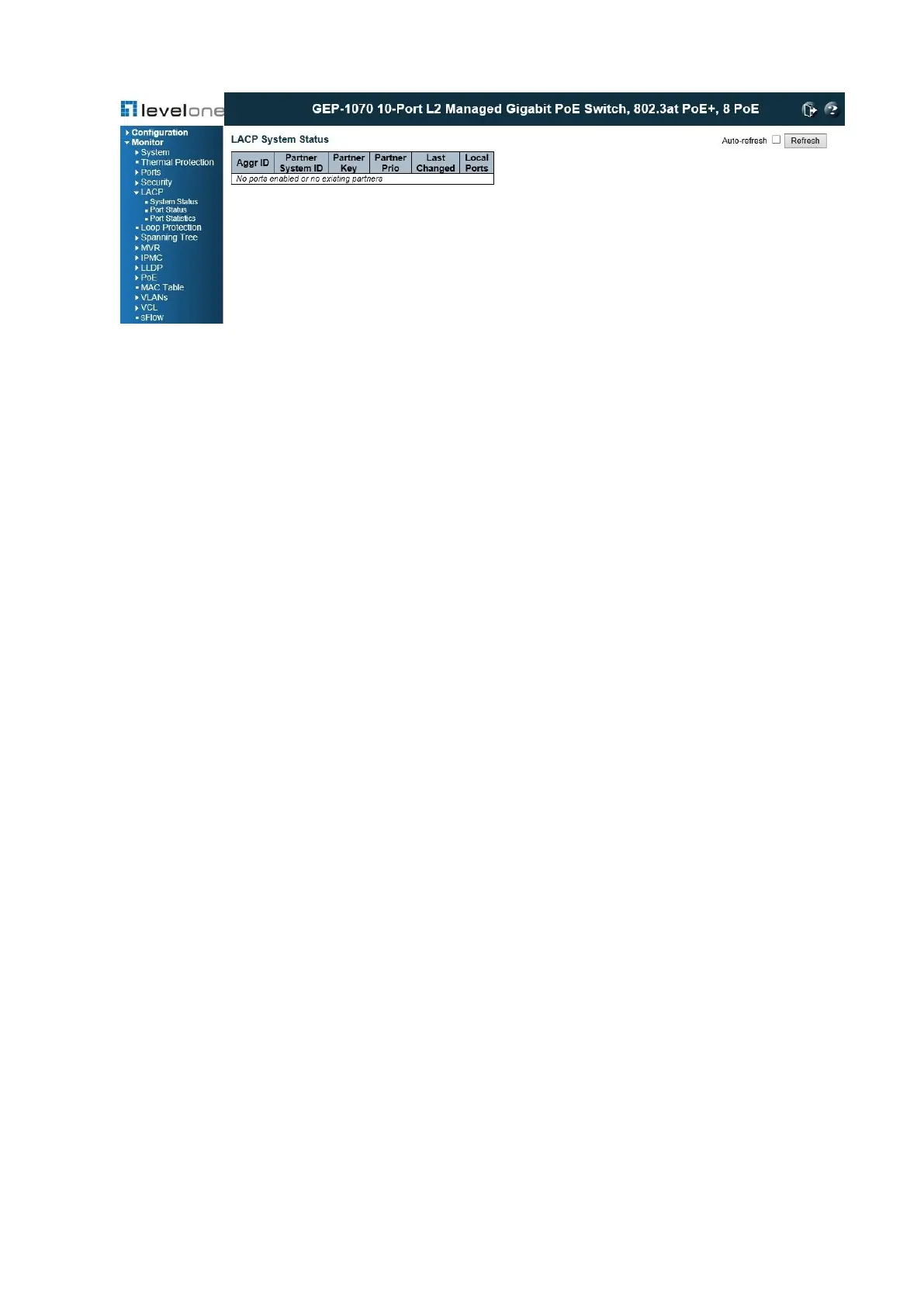

Figure 119: LACP Port Statistics
