5.14. MAC-based VLANs (VCL)
Displaying MAC-based VLANs
Use the MAC-based VLAN Membership Configuration page to display the MAC address to
VLAN map entries.
PATH
Monitor \ VCL \ MAC-based VLAN

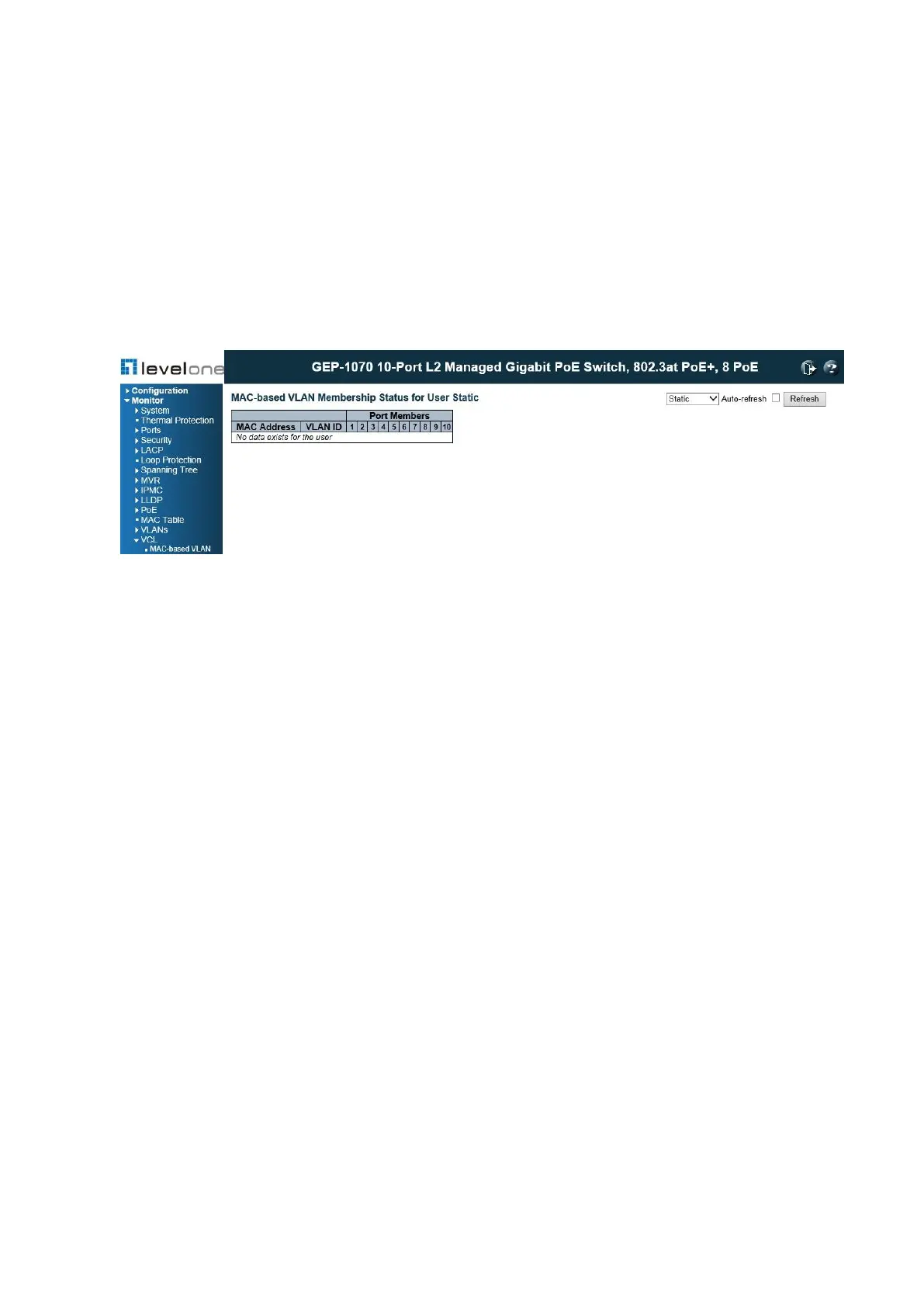

Figure 145: Displaying MAC-based VLAN Configuration
PARAMETERS
These parameters are displayed:
◆ MAC-based VLAN User – A user or software module that uses VLAN management
services to configure MAC-based VLAN membership. This switch supports the following
VLAN user modules:
■ Static: MAC addresses statically assigned to a VLAN and member port through the CLI,
Web or SNMP.
■ NAS: Provides port-based authentication, which involves communications between a
Supplicant, Authenticator, and an Authentication Server.
■ Combined: Includes all entries.
◆ MAC Address – A source MAC address which is mapped to a specific VLAN.
◆ VLAN ID – VLAN to which ingress traffic matching the specified source MAC address is
forwarded.
◆ Port Members – The ports assigned to this VLAN.
WEB INTERFACE
1. To display MAC-based VLAN membership settings, click Monitor, VCL, MAC-based VLAN.
2. Select a software module from the drop-down list on the right side of the page.
