Groups to VLAN
Use the Group Name to VLAN Mapping Table to map a protocol group to a VLAN for each
interface that will participate in the group.
PATH
Configuration \ VCL \ Protocol-based VLAN \ Group to VLAN

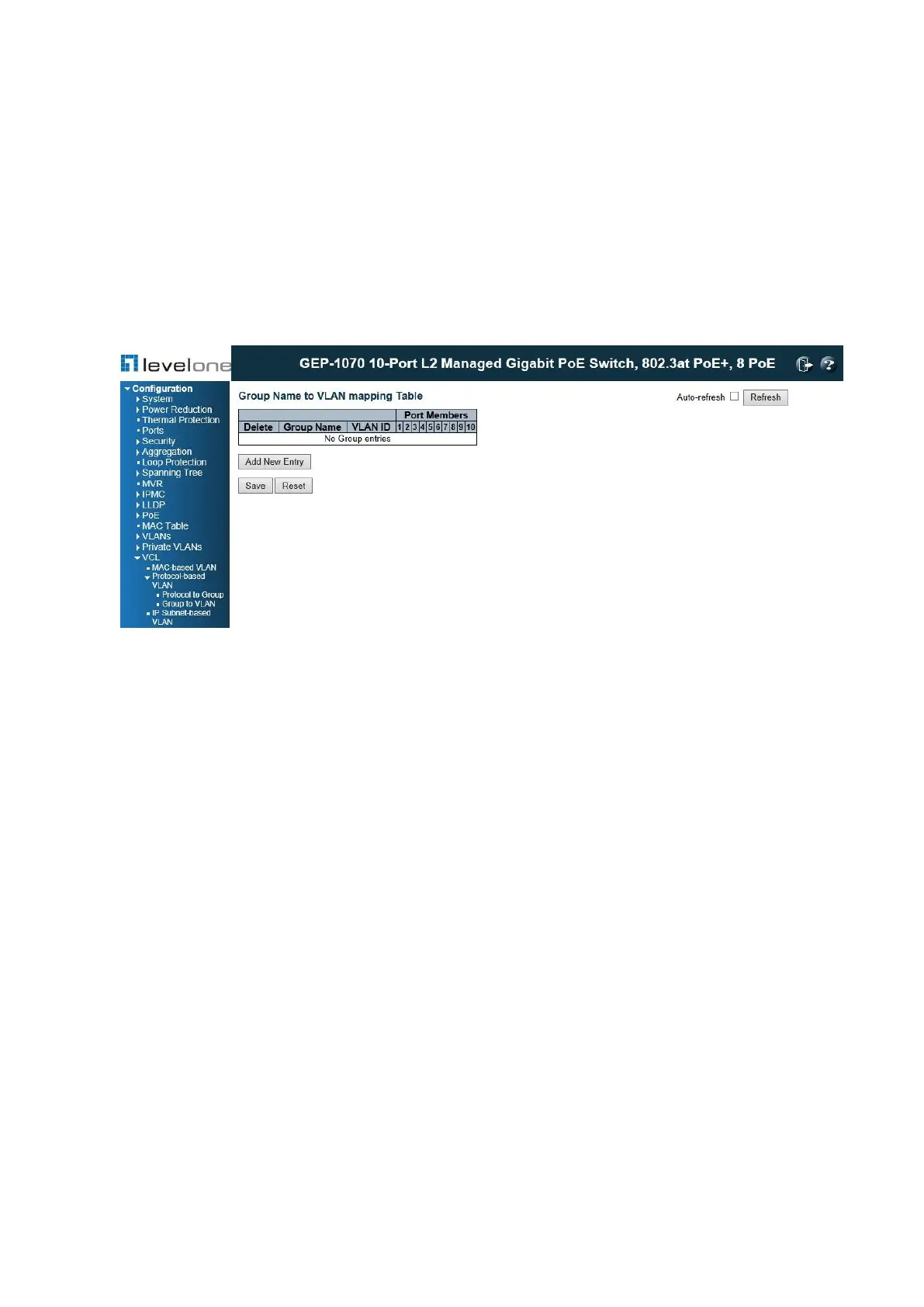

Figure 73: Assigning Ports to Protocol VLANs
COMMAND USAGE
◆ When creating a protocol-based VLAN, only assign interfaces using this configuration
screen. If you assign interfaces using any of the other VLAN menus such as the VLAN
Static table, these interfaces will admit traffic of any protocol type into the associated
VLAN.
◆ When a frame enters a port that has been assigned to a protocol VLAN, it is processed in
the following manner:
■ If the frame is tagged, it will be processed according to the standard rules applied to
tagged frames.
■ If the frame is untagged and the protocol type matches, the frame is forwarded to the
appropriate VLAN.
■ If the frame is untagged but the protocol type does not match, the frame is forwarded to
the default VLAN for this interface.
PARAMETERS
These parameters are displayed:
◆ Group Name – The name assigned to the Protocol VLAN Group. This name must be a
unique 16-character long string which consists of a combination of alphabetic characters
