261
These parameters are displayed:
◆ VLAN ID – VLAN Identifier.
◆ Groups – The IP address for a specific multicast service.
◆ Port Members – The ports assigned to the listed VLAN which propagate a specific
multicast service.
WEB INTERFACE
To display the port members of each service group, click Monitor, IGMP Snooping, Group
Information.
Displaying IPV4 SFM Information
This page shows the entries in the IGMP SFM Information Table. The IGMP SFM (Source-
Filtered Multicast) Information Table also contains the SSM (Source-Specific Multicast)
information. This table is sorted first by VLAN ID, then by group, and then by Port. Different
source addresses belong to the same group are treated as single entry.
Each page shows up to 99 entries from the IGMP SFM Information table, default being 20,
selected through the "entries per page" input field. When first visited, the web page will show
the first 20 entries from the beginning of the IGMP SFM Information Table. The "Start from
VLAN", and "group" input fields allow the user to select the starting point in the IGMP SFM
Information Table.
PATH
Monitor \ IPMC \ IGMP Snooping \ IPv4 SFM Information

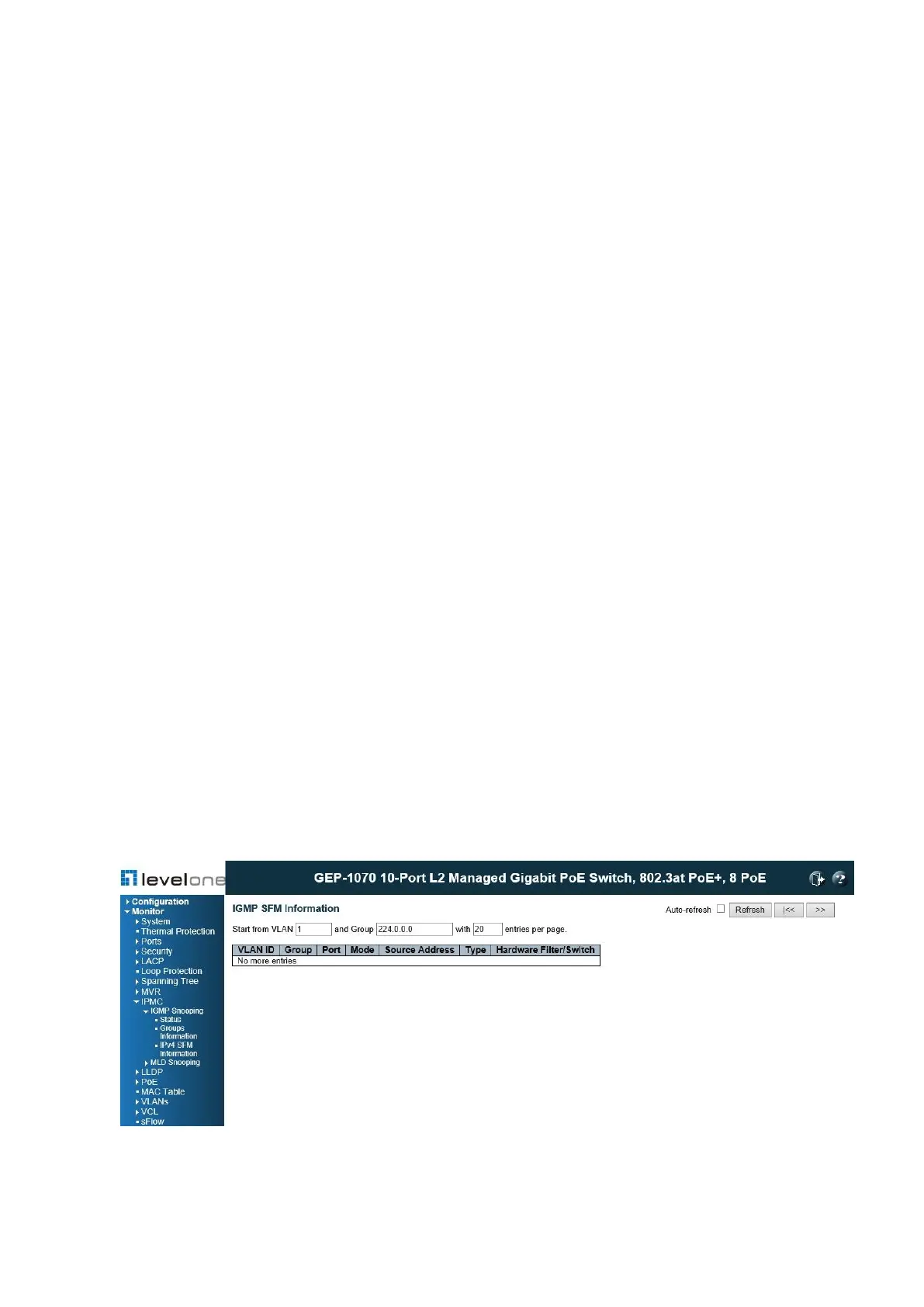

Figure 130: IPv4 SFM Information
