265

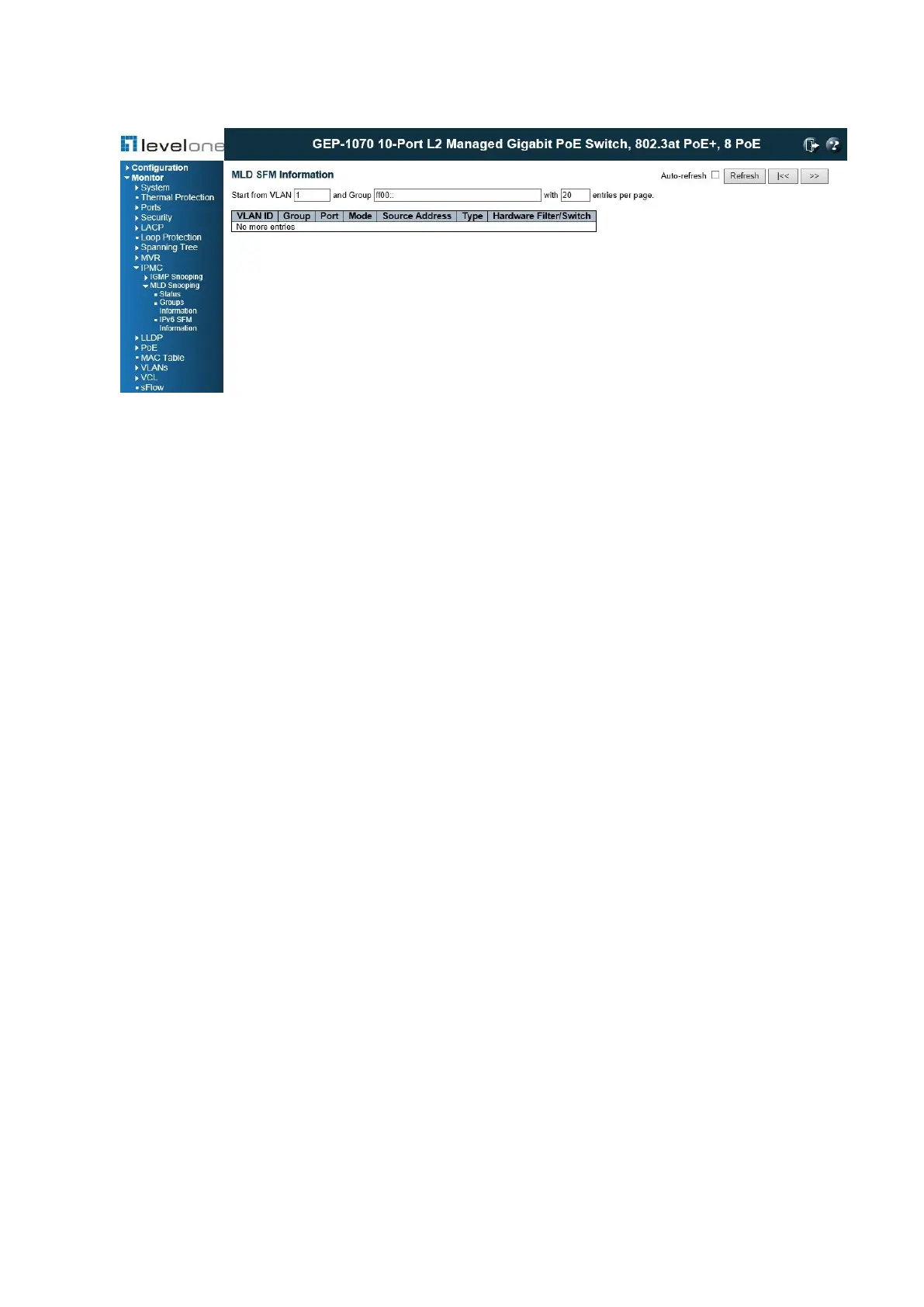

Figure 133: MLD SFM Information
PARAMETERS
These parameters are displayed:
◆ VLAN ID – VLAN Identifier.
◆ Group – The IP address of a multicast group detected on this interface.
◆ Port No – Port identifier.
◆ Mode – The filtering mode maintained per VLAN ID, port number, and Group Address. It
can be either Include or Exclude.
◆ Source Address – IP Address of the source. Currently, the system limits the total number
of IP source addresses for filtering to be 128. Different source addresses belong to the
same group are treated as single entry.
◆ Type – Indicates the Type. It can be either Allow or Deny.
WEB INTERFACE
To display MLD Source-Filtered Multicast Information, click Monitor, MLD Snooping, IPv6
SFM Information.
