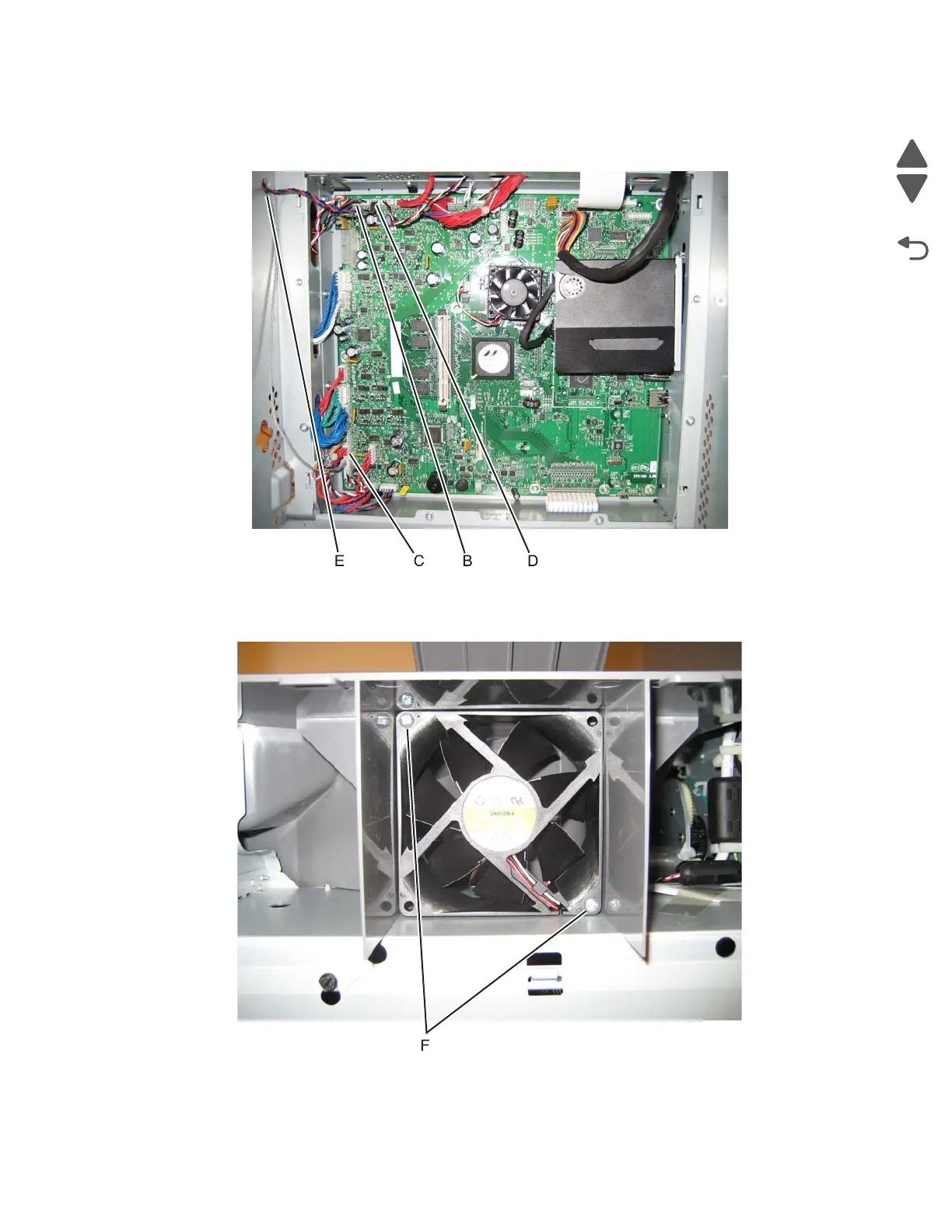

4. Disconnect the cables in connectors JBIN1 (B), JFDS1 (C), and JFUSER1 (D), on the system board.
5. Remove the output bin sensor cable (A) and the feed through sensor cable (B) through the side of the
frame (E).
6. Remove the two screws (F), and disconnect the cooling fan.
Note: If you are removing the top cover to access another part, skip this step and leave the cooling fan in
the top cover
