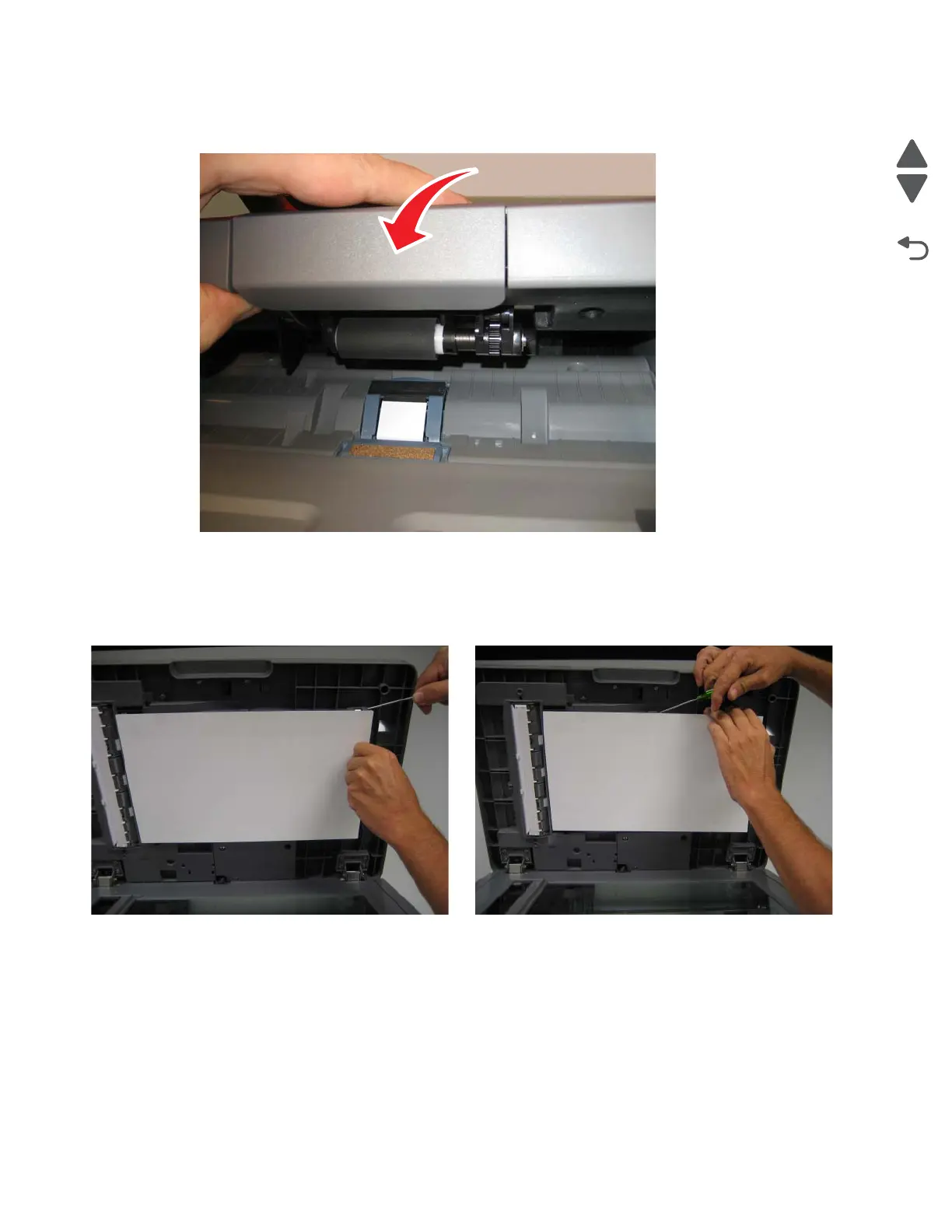

4. Verify that the installation was correct by pressing the ADF pick roller into the ADF door, then pulling the
door down until the ADF pick roller assembly smoothly falls forward, without falling out.
ADF pressure plate cover removal
1. Open the ADF.
2. Use a flatblade screwdriver to release the tabs.
