Lexmark X746de - Fuser DC Cable Removal

Repair information 4-107
7526
Go Back
Previous
Next
Fuser DC cable removal
Note: The fuser to system board autoconnect cable is red.
1. Remove the top cover assembly. See “Top cover assembly removal” on page 4-44.
2. Turn the top cover assembly over.

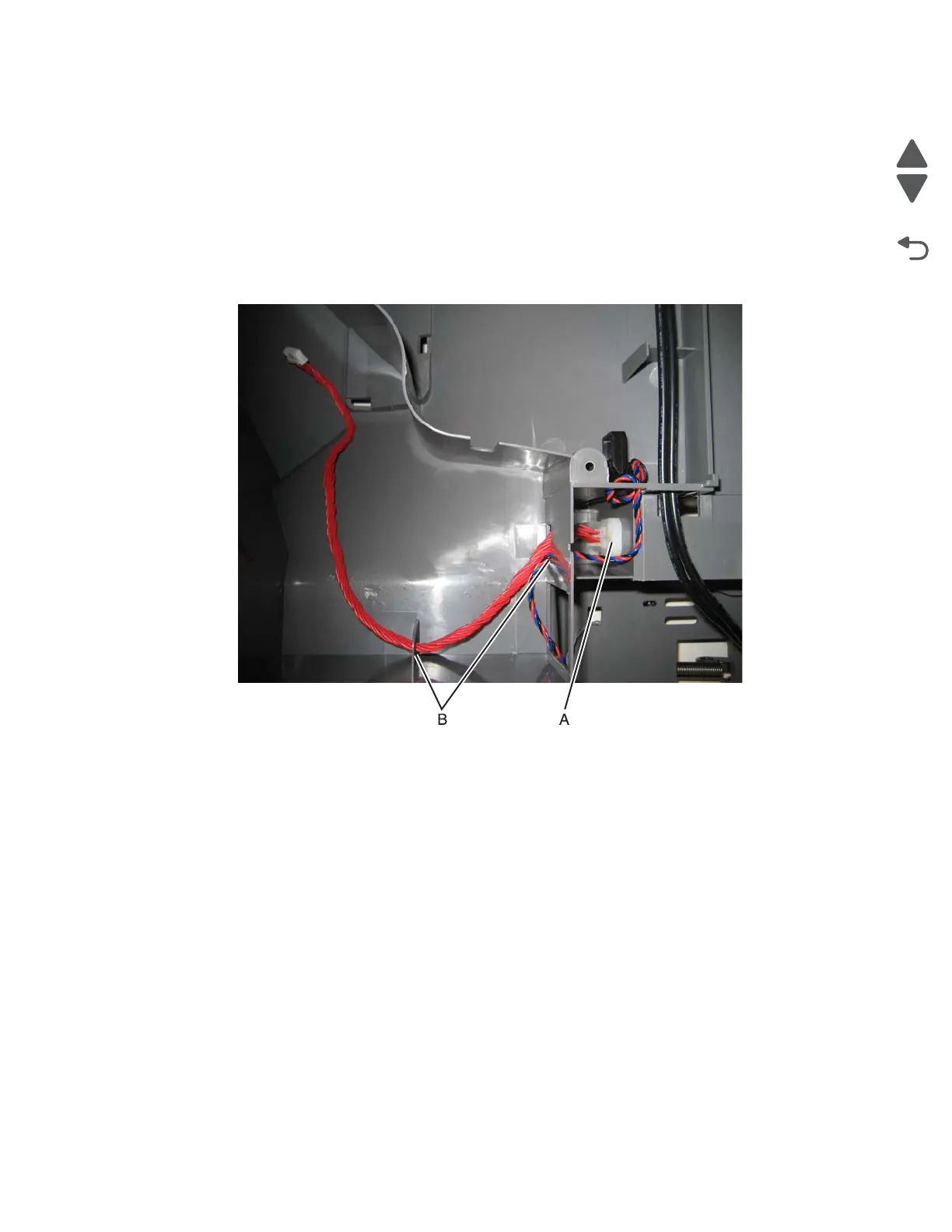

3. Remove the connector (A) from the top cover assembly.
Warning: You will damage the old connector in the process. Be careful not to damage the top cover
assembly.
4. Pull the cable through the openings (B) in the top cover assembly.
