Motor driver card removal
1. Remove the right cover. See “Right cover removal” on page 4-38.

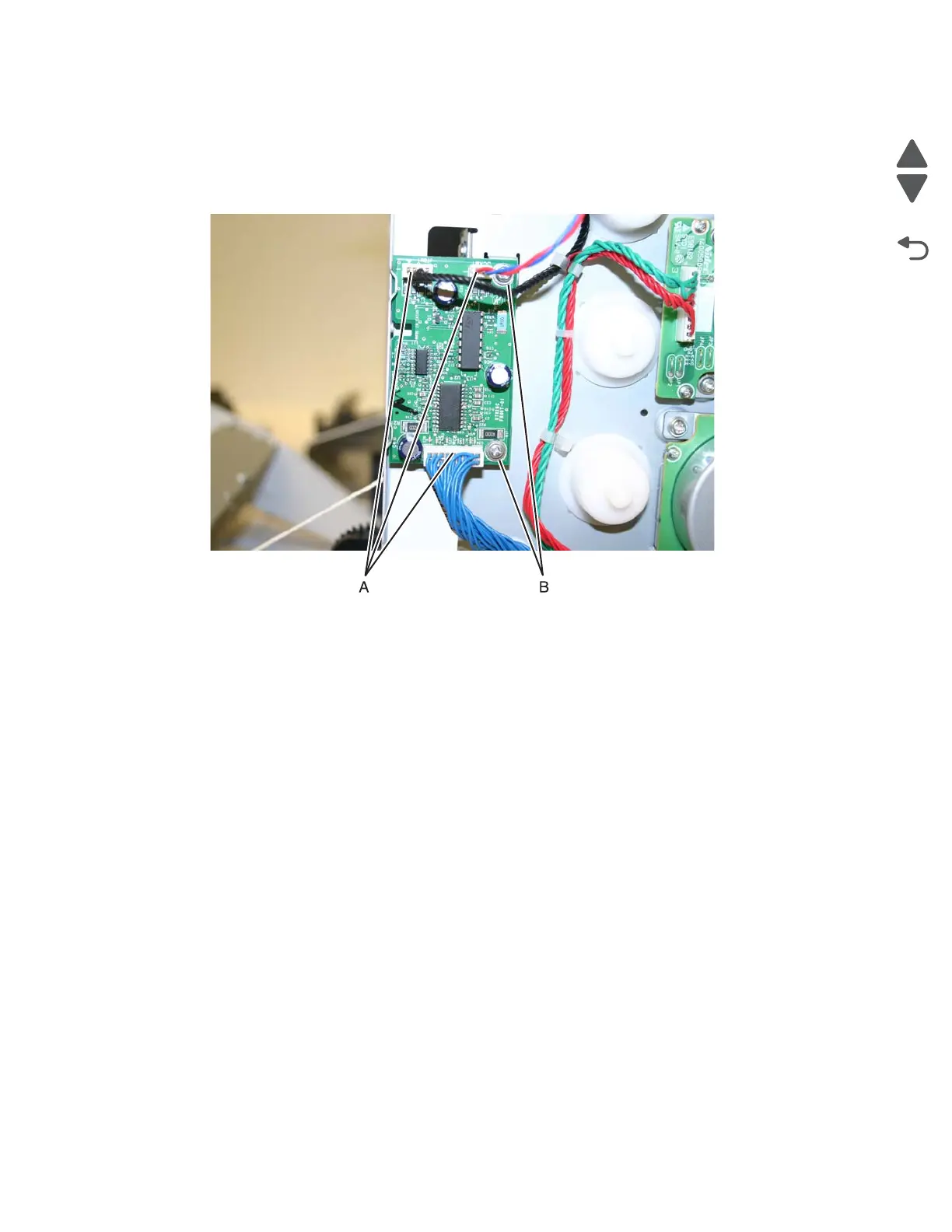

2. Disconnect the three cables (A).
3. Remove the two screws (B), and remove the motor driver card.
