Repair information 4-235
7526
4. Remove the ADF pressure plate cover. See “ADF pressure plate cover removal” on page 4-244

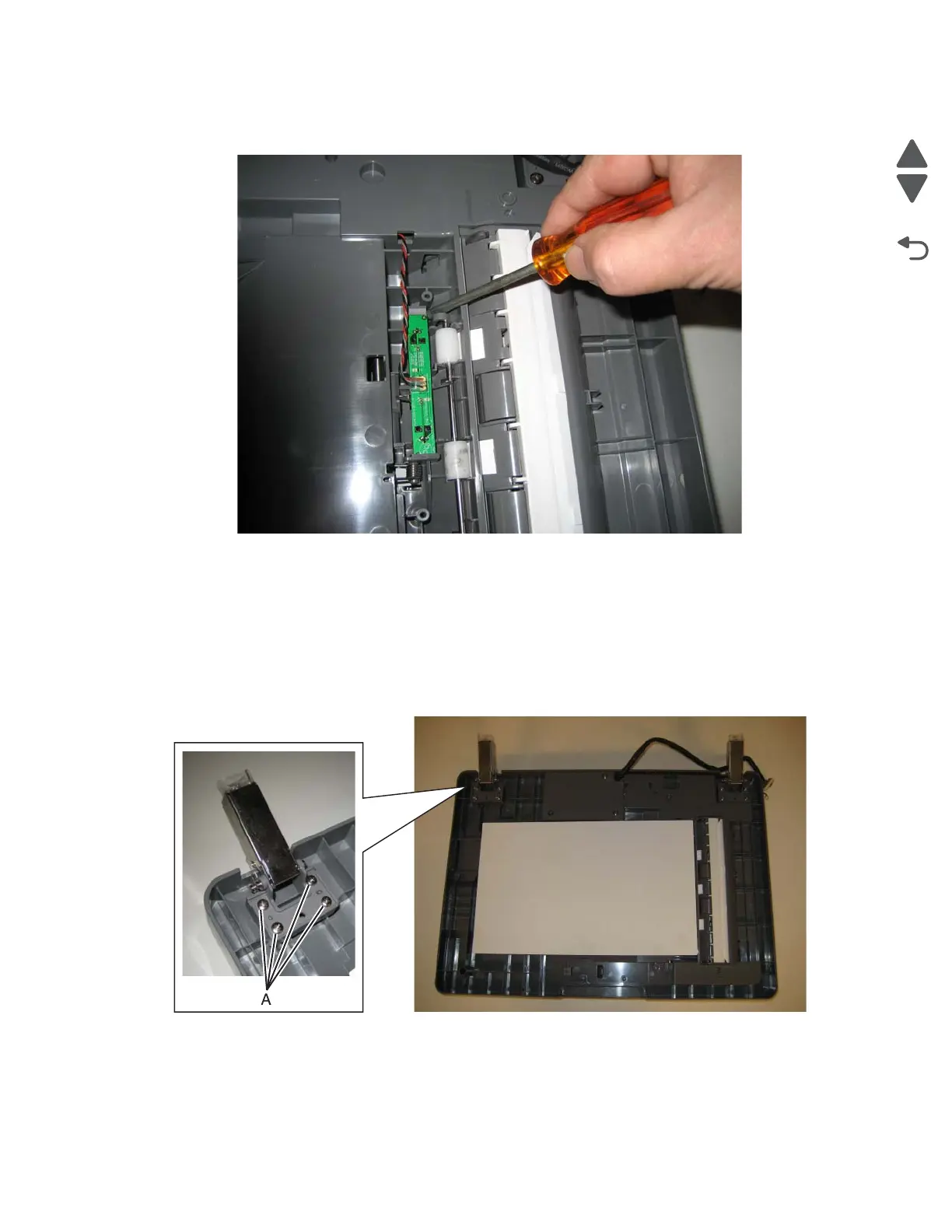

5. Use a flat-blade screwdriver to open the latch (C) the output sensor card.
6. Remove the ADF exit sensor and cable.
ADF hinge (left and right) removal
The hinges are removed in a similar manner. Only one hinge is shown in this removal.
1. Remove the ADF. See “ADF removal (entire)” on page 4-228.
2. Turn the ADF over.
3. Remove the four screws (A) of the hinge you want to remove.
4. Remove the hinge.
