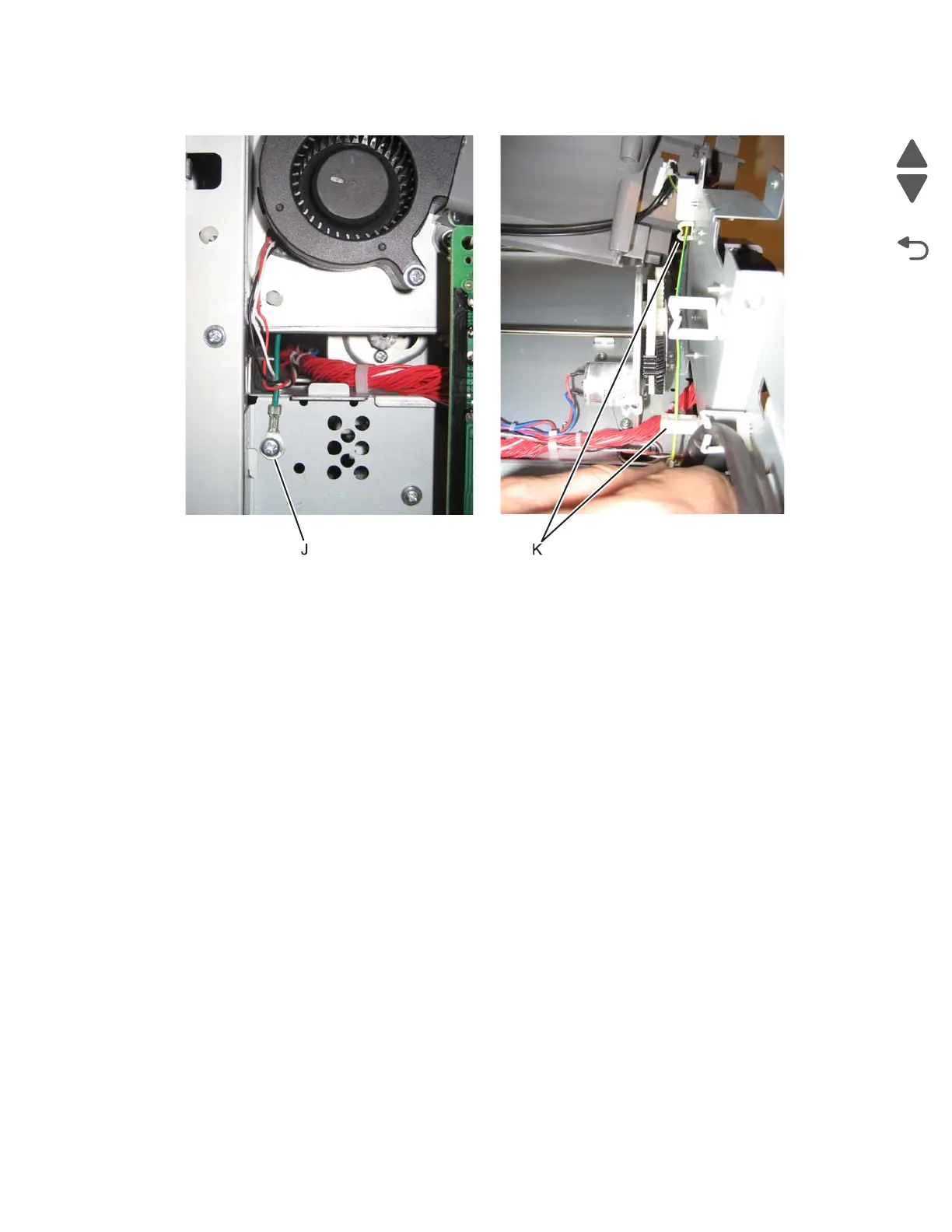

9. Remove the ground screw (J) on the right side, and remove the ground cable from the cable restraint (K).
Note: If you need to replace the top cover FRU, continue with the next step to remove the separate output bin
extension cover FRU.
10. Remove the output bin extension cover. See “Output bin extension cover removal” on page 4-35
