Lexmark X746de - Page 546

4-256 Service Manual
7526
Go Back
Previous
Next

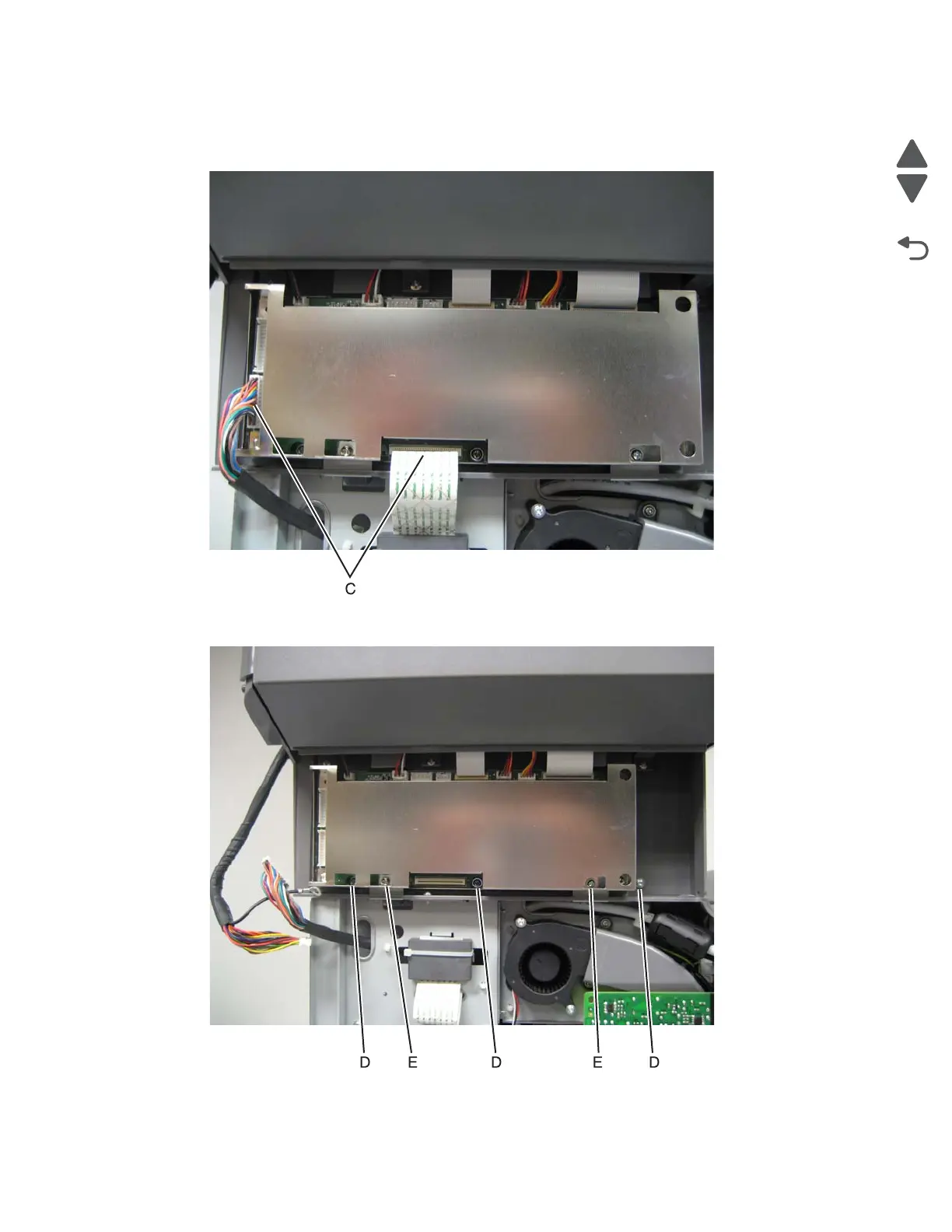

4. Disconnect the two cables (C) at the connectors on the MDC card (ribbon cable).
Note: Be careful disconnecting and reconnecting the ribbon cables. Ribbon cables can be damaged
easily and should be handled carefully.
5. Remove the 3 long screws (D) and the two short screws (E).
