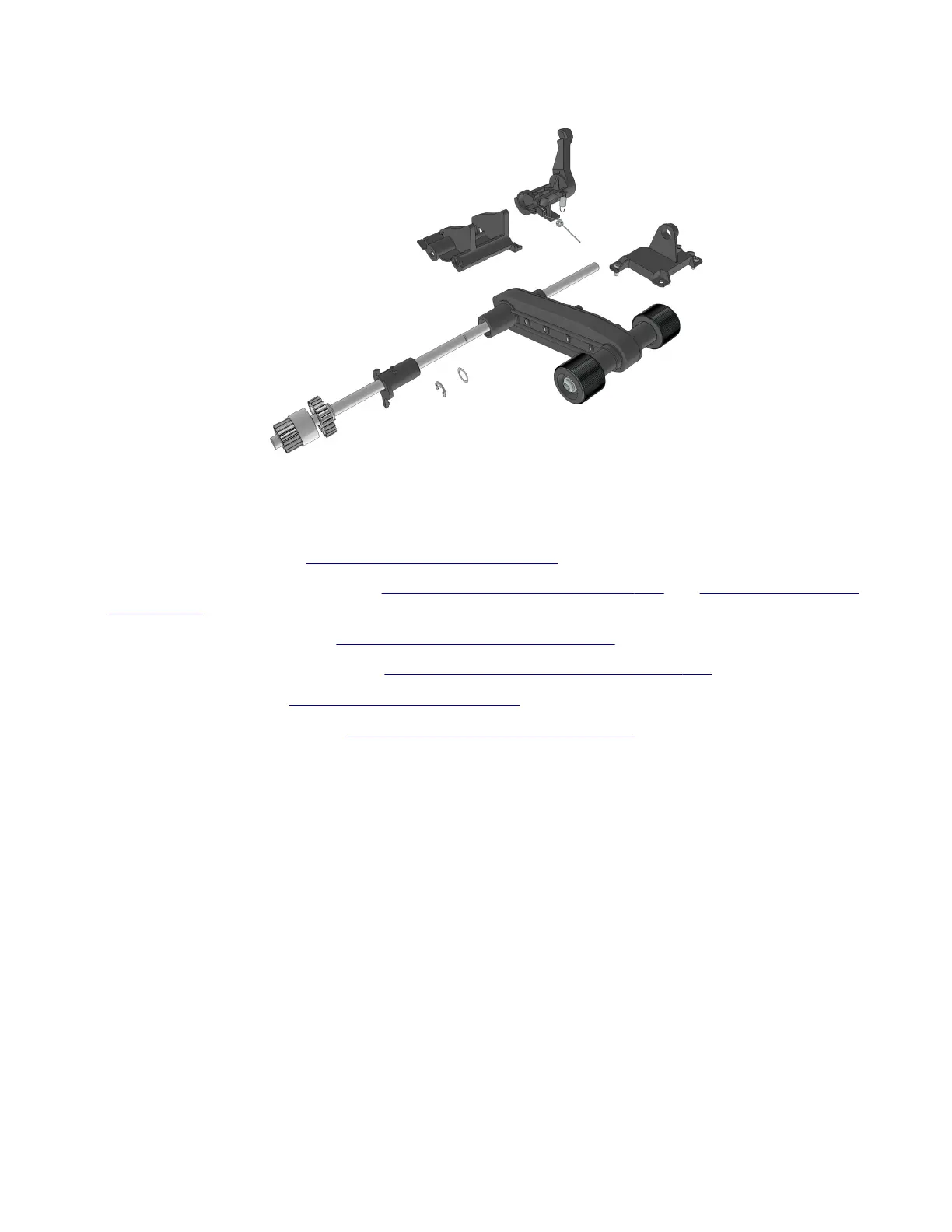

Below is the ACM assembly.
Pick/lift motor gearbox removal
1 Remove the left cover. See “Left cover removal” on page 264.
2 Remove the rear door and cover. See “Rear exit door removal” on page 342 and “Rear cover removal”
on page 343.
3 Remove the power supply. See “Power supply removal” on page 323.
4 Remove the power supply shield. See “Power supply shield removal” on page 323.
5 Remove the duplex. See “Duplex removal” on page 324.
6 Remove the ACM assembly. See “ACM assembly removal” on page 336.
7 Position the printer so that it sits on its left side.
7016
Repair information
338
