Lexmark XM3150 Service Manual

Actions Yes No
Step 1
Check if the fuser screws are tightly fastened.
Are they tightly fastened?
Go to step 2. Tighten the screws.
Step 2
a Turn o the printer.
b Remove the rear door and cover.
c Disconnect the fuser cable connected to PCN5 of the power
supply.
d Check for approximate correct resistance on the fuser cable:
• 220 V fuser—43 ohms
• 110 V fuser—10 ohms
• 100 V fuser—8 ohms
Is the resistance equal to any of the above values?
Go to step 3. Replace the fuser.
See
“Fuser
removal” on
page 346.
Step 3
Check the following fuser components for wear or damage:
• Gears
• Exit rollers
• Belt fuser
Are they free of damage?
Replace the power
supply. See
“Power
supply removal” on
page 323.
Replace the fuser.
See
“Fuser
removal” on
page 346.

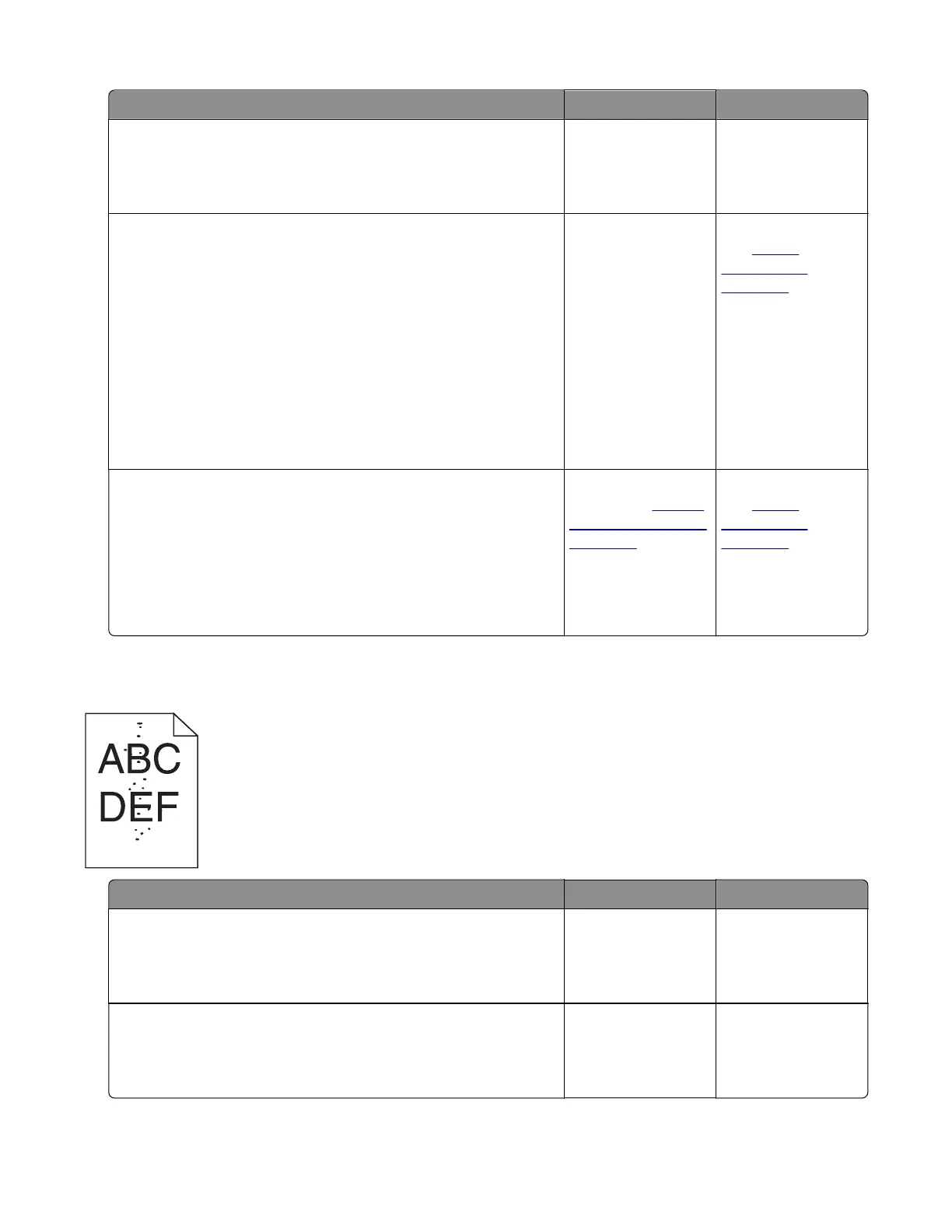

Toner specks check
Actions Yes No
Step 1
Check the imaging unit for wear or damage.
Is it free of wear or damage?
Go to step 2. Replace the imaging
unit.
Step 2
Make sure the paper path is free of debris or toner contamination.
Does the problem remain?
Go to step 3. The problem is
solved.
7016
Diagnostic information
51

Lexmark XM3150 Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	6.5 s
Print speed (black, normal quality, A4/US Letter)	47 ppm
All-in-one functions	Copy, Fax, Print, Scan
Color all-in-one functions	Scan
Digital sender	No
Maximum duty cycle	150000 pages per month
Recommended duty cycle	2000 - 15000 pages per month
Copier resize	25 - 400 %
Maximum copy resolution	- DPI
Copy speed (black, normal quality, A4)	47 cpm
Scan speed (black)	48 ppm
Scan speed (color)	32 ppm
Duplex scan speed (black)	21 ppm
Duplex scan speed (color)	14 ppm
Optical scanning resolution	600 x 1200 DPI
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Total input capacity	650 sheets
Total output capacity	250 sheets
Maximum input capacity	2300 sheets
Multi-Purpose tray input capacity	100 sheets
Envelopes sizes	7 3/4, 9, 10, DL
Maximum print size	216 x 356 mm
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Display	LCD
Control type	Touch
Product color	Grey, White
Display diagonal	7 \
Market positioning	Business
Direct printing	-
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Parallel, Serial (RS-422), Wireless LAN
Internal memory	1024 MB
Maximum internal memory	3072 MB
Sound pressure level (copying)	56 dB
Sound pressure level (printing)	55 dB
Power consumption (average operating)	- W
Operating altitude	0 - 2896 m
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	479 mm
Width	499 mm
Height	561 mm
Weight	23600 g
