CHAPITRE 2 : CHAPTER 2: TECHNICAL DATA 2 - 5
TRYTON 112 CNC

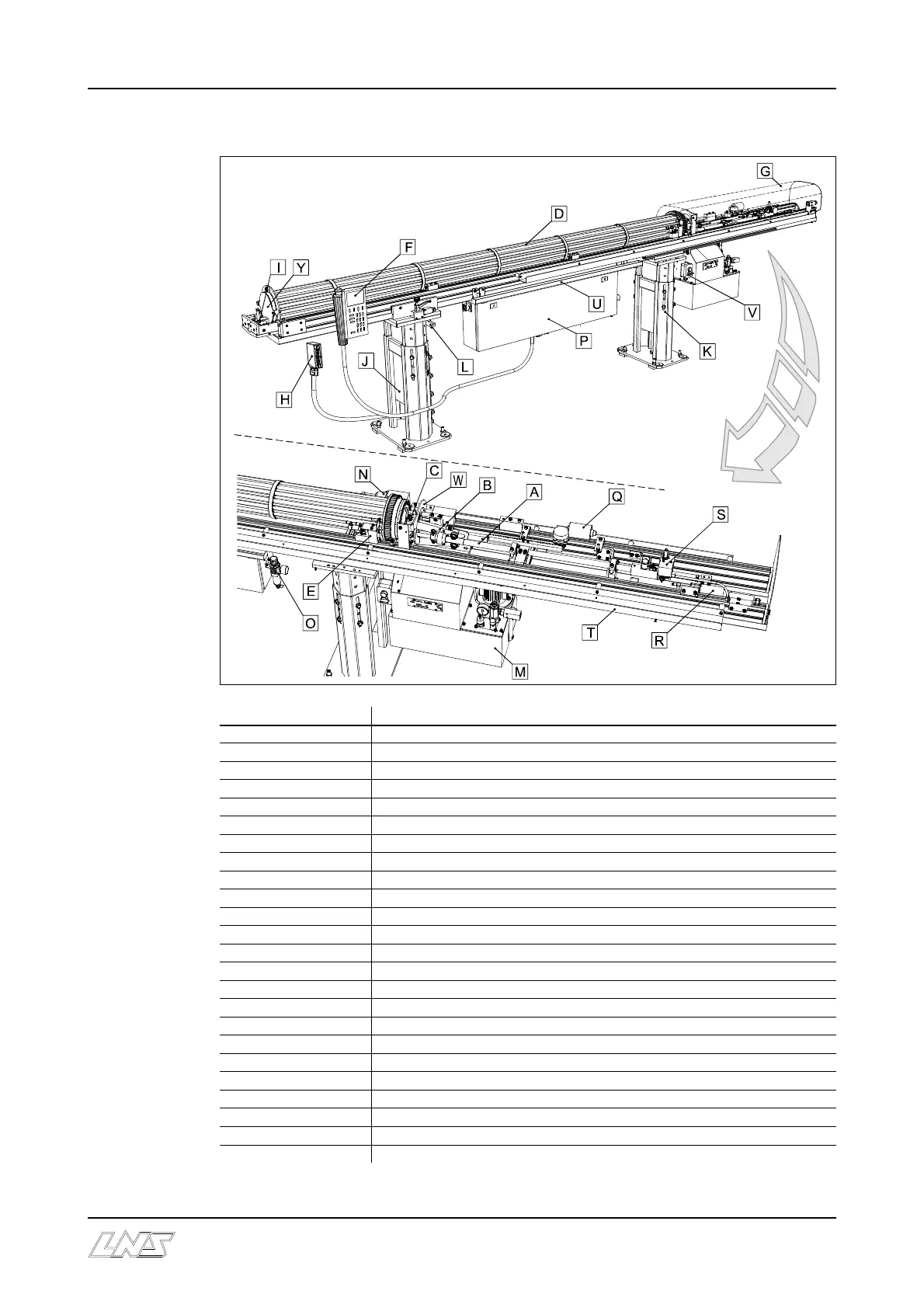

3. LAYOUT OF THE ELEMENTS
Designation Description
A Connector / Feeding pusher
B Movable vise
C Material presence monitor
D Barrel
E Barrel lock
F Remote control station
G Main access cover
H Interface plug (according to OEM requirements)
I Positioning stopper
J Front foot
K Rear foot
L Loading arm (option)
M Hydraulic tank
N Indexing motor
O Air filtering unit
P Pneumatic / electrical cabinet
Q Connector feed motor
R Cable feed motor
S Pulse generator
T Material support
U Accessory support (pushers, reduction tubes)
V Stationary command
W Back stop
Y Front stop
