LNS TRYTON 112 - AIR FILTERING DEVICE

5 - 4 CHAPTER 5 : PNEUMATICS
TRYTON 112 CNC
2. AIR FILTERING DEVICE
2.1 Description
The air filtering device serves to filter air and to set its pressure before it is distributed into
the pneumatic circuit of the bar feed system.
The air must be furnished at a maximum pressure of 5 bar, and whenever possible, clean and
dry

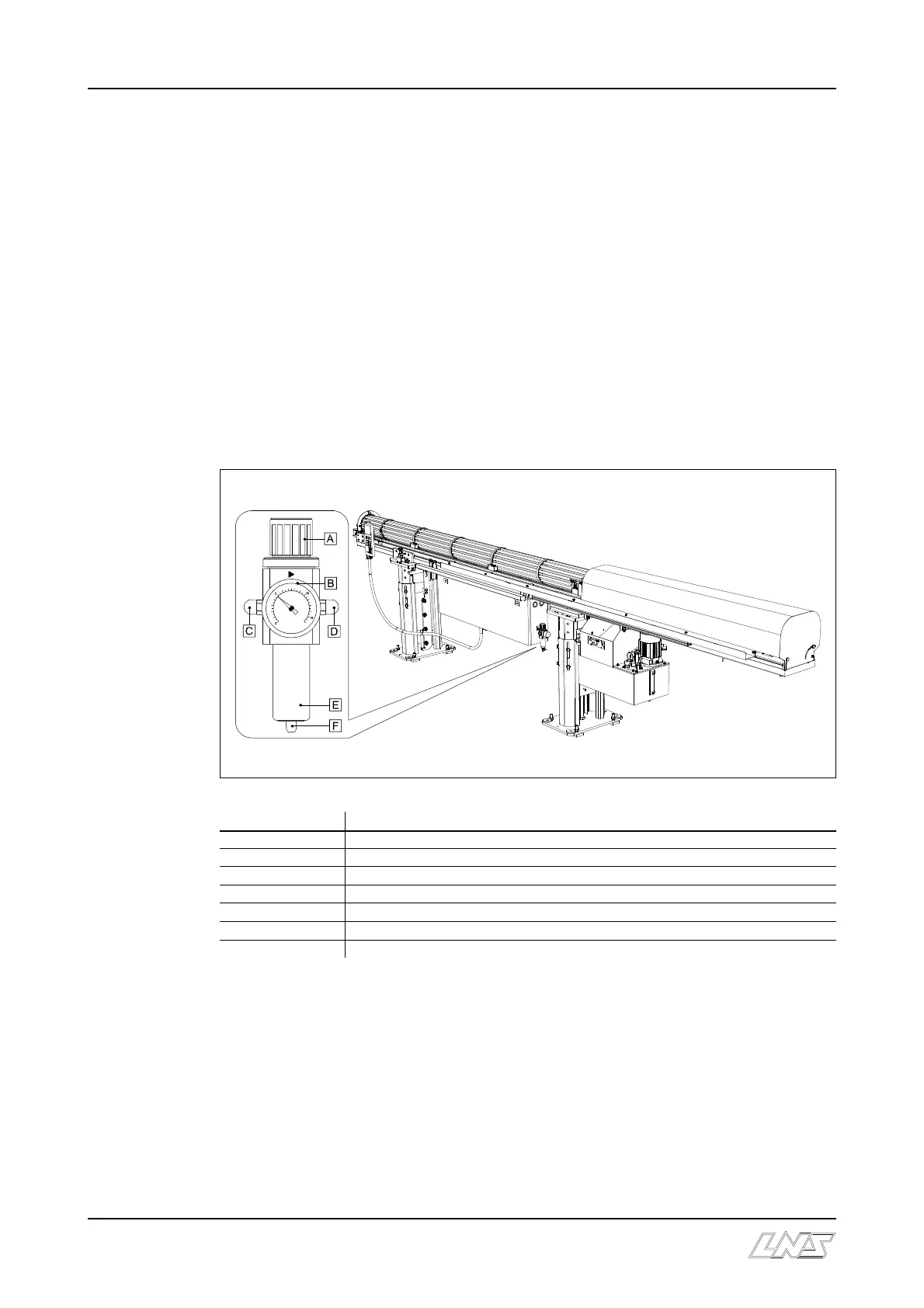

2.2 Layout of the elements
Designation Description
A Pressure regulator
B Pressure gauge
C Inlet
D Regulated pressure
E Decanter
F Automatic purging
G Insert fitting
