CHAPTER 4: ELECTRICS 4 - 19
TRYTON 112 CNC
4. INTERFACE

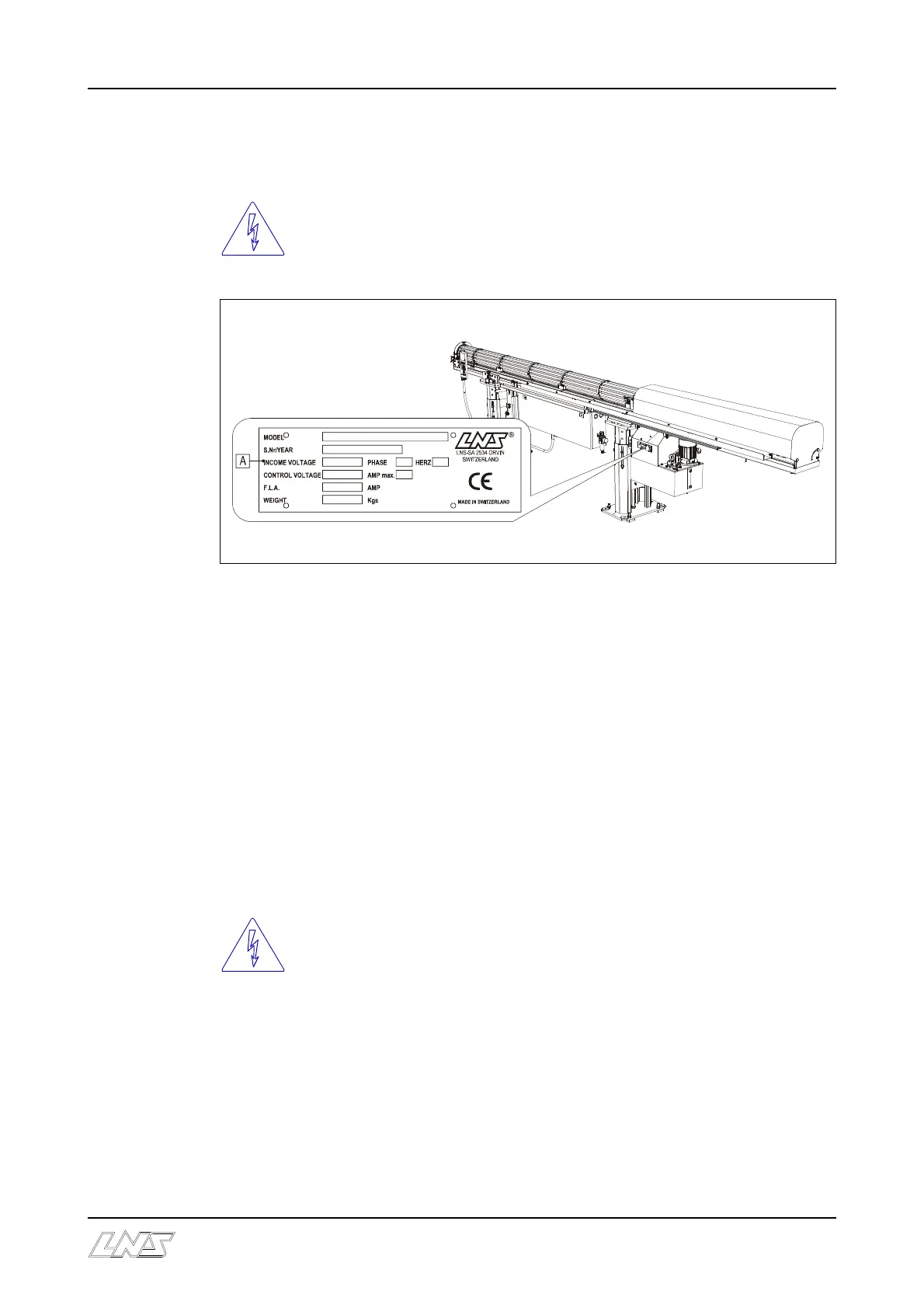

Before turning the power on, check that the voltage of the bar feed system
corresponds to that of the lathe. The voltage of the bar feed system is indicated
on the identification plate (A).
4.1 Description
The interface cable(s), between the bar feed system and the lathe is (are) provided by LNS.
Although an example of an interface diagram is provided, the diagram for the interface
corresponding to your device, essential when making the electrical connection, is located
inside the electrical cabinet.
When making connections, ensure that the cables are long enough to allow the entire travel
of the loading arm (option)
Should the interface instructions not be observed during the setting into
operation, the damaged elements as well as the resulting damages are not
covered by warranty.
