1 - 8 CHAPTER 1 : BASIC NOTIONS
TRYTON 112 CNC
5. SAFETY DEVICES
5.1 Description
The Tryton 112 bar feed system has been designed with a focus on maximum safety during
its handling and complies with all CE requirements.
Safety covers and devices make access to the moving parts of the bar feed system
impossible. Safety switches keep the bar feed system from operating when these protections
are open.
The design of the switches, as well as their insertion into the bar feed system, makes it
practically impossible to bypass them.
By pressing the emergency stop button located on the remote control, the functions of the
bar feed system and the lathe are immediately stopped
The LNS company, or its local representative, may not be held responsible
for possible accidents or property damage, whether caused directly or not,
by any means whatsoever, if certain safety devices have not been included.

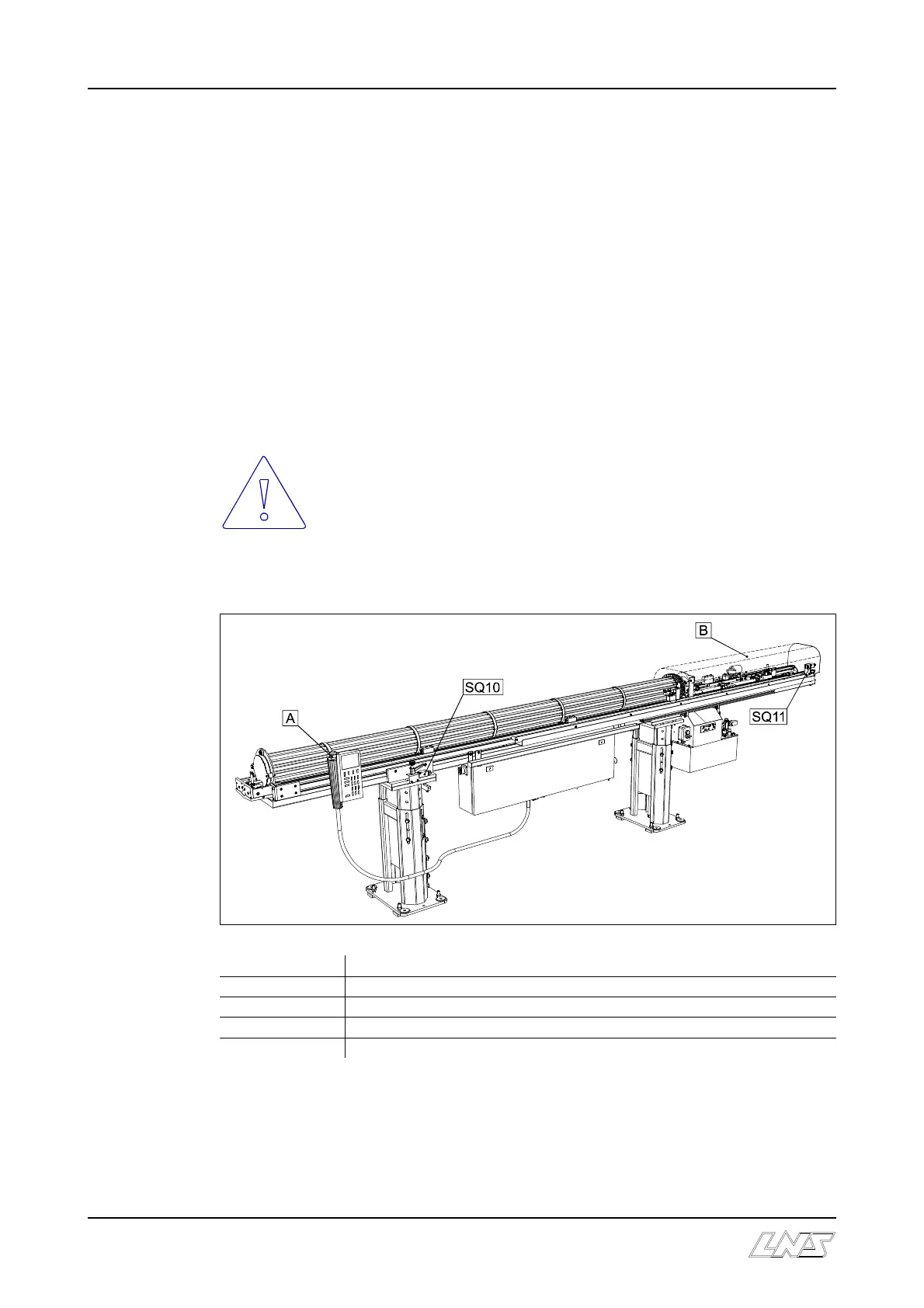

5.2 Layout
Designation Description
A Emergency Stop push button
B Main access cover
SQ10 Safety switch for loading arm (in position switch)
SQ11 Safety switch for main access cover
