CHAPTER 7 : GENERAL DESCRIPTION 7 - 7
TRYTON 112 CNC
5. LOADING ARM (OPTION)
5.1 Description
When a lathe is equipped with a bar feed
system, certain elements (motors, spindle
reduction tubes, etc.) become inaccessible,
and sometimes it is difficult, or even
impossible, to proceed with their
maintenance.

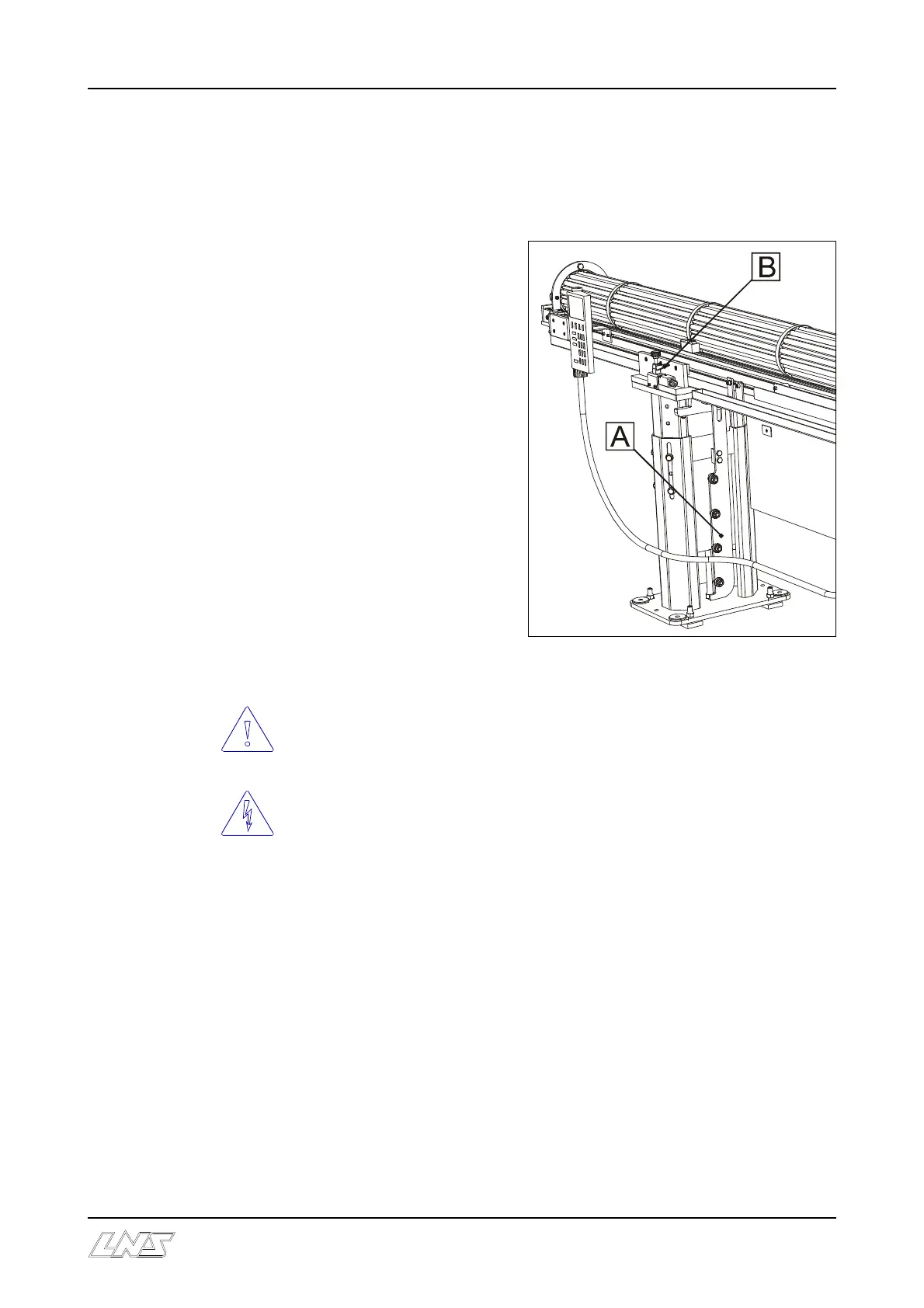

To facilitate these tasks, the Tryton 112
can be equipped with a loading arm, which
allows the operator to move the bar feeder.
The rigidity of the system guarantees a
perfect alignment when the bar feed system
is in working position.
The feeder is held in working position by a
bolting device (B), fitted with a safety
switch that prevents any manipulation
when the feeder is not in working position.
It is strictly prohibited to use the retraction system before the bar feed system
is anchored to the ground
Before handling the loading arm, check to see that the interface cables
between the lathe and the bar feed system are long enough.
