3. PNEUMATIC VALVE BATTERY
3.1 Description
The pneumatic battery includes the control and monitoring elements of the bar feed
system pneumatic circuit.

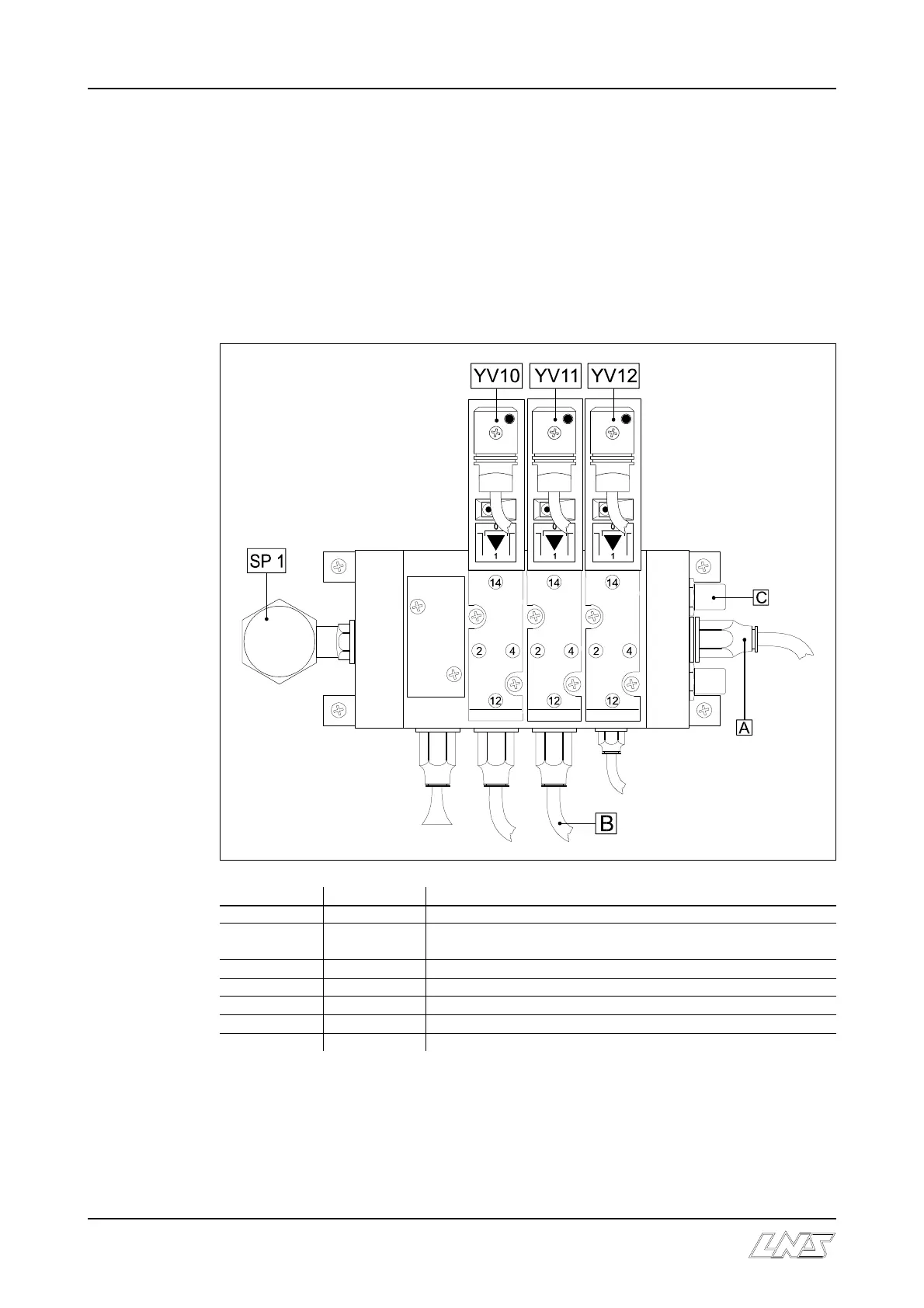

3.2 Layout of the elements
Designation Article No Description
A 3.336 / 8mm Inlet connection
B
3.337 / 6mm
3.338 / 4mm
Outlet connections
C 3.334 Muffler
SP1 3.464 Pressure switch
YV10 3.327 Electro-valve : pusher retract cable coupler
YV11 3.327 Electro-valve : position end-stop
YV12 3.327 Electro-valve : barrel unlocking
* Coordination of LED on the PLC in Chapter 4/ Electrics.
