1.3 Description of the electrical elements of the bar feed system
1.3.1 Pump motor
Particular attention should be given to the handling of electrical elements
because of risks of electrocution. In case of possible electrical malfunctions, it
is advisable to contact LNS or their local representative.
It is strictly prohibited to make adjustments as long as the bar feed system is
under electrical power. The adjustments of the electrical equipment must only
be performed by qualified personnel.
During the installation, ensure that the motor is wired in accordance with the supply voltage
available. The supply voltage of the bar feed system is indicated on the identification plate
(point 4). If the voltage does not correspond, the wiring of the motor must be modified :
Procedure :
C Turn the bar feed system off (trigger QS1 and QF1, see below).
C Open the main safety cover.
C Unscrew the motor cover unit.
C Make sure that all motor terminals are off

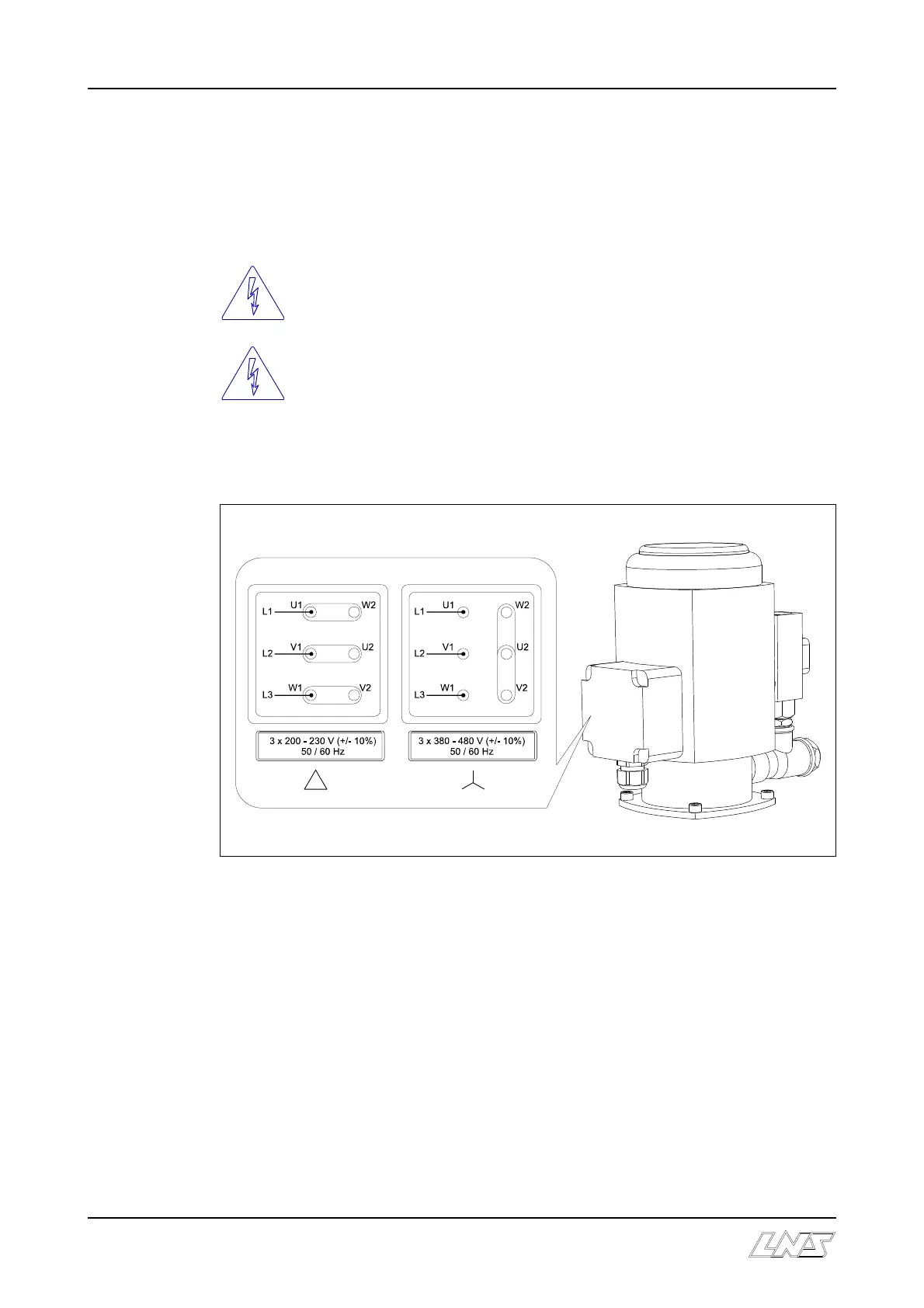

C Modify the terminal block wiring of the motor according to the diagram above.
C Close the cover unit of the motor and the main safety cover.
C Turn the bar feed system on (engage QS1 and QF1).
