7 - 8 CHAPTER 7 : GENERAL DESCRIPTION
TRYTON 112 CNC
5.2 Operation
Please read the safety precautions described at the beginning of this manual
before handling the following devices.
Conditions : - Feeder in MAN or STOP position
- No bar between the feeder and the lathe
- Pusher inside the feeder
- The area around the bar-feeder must be clear

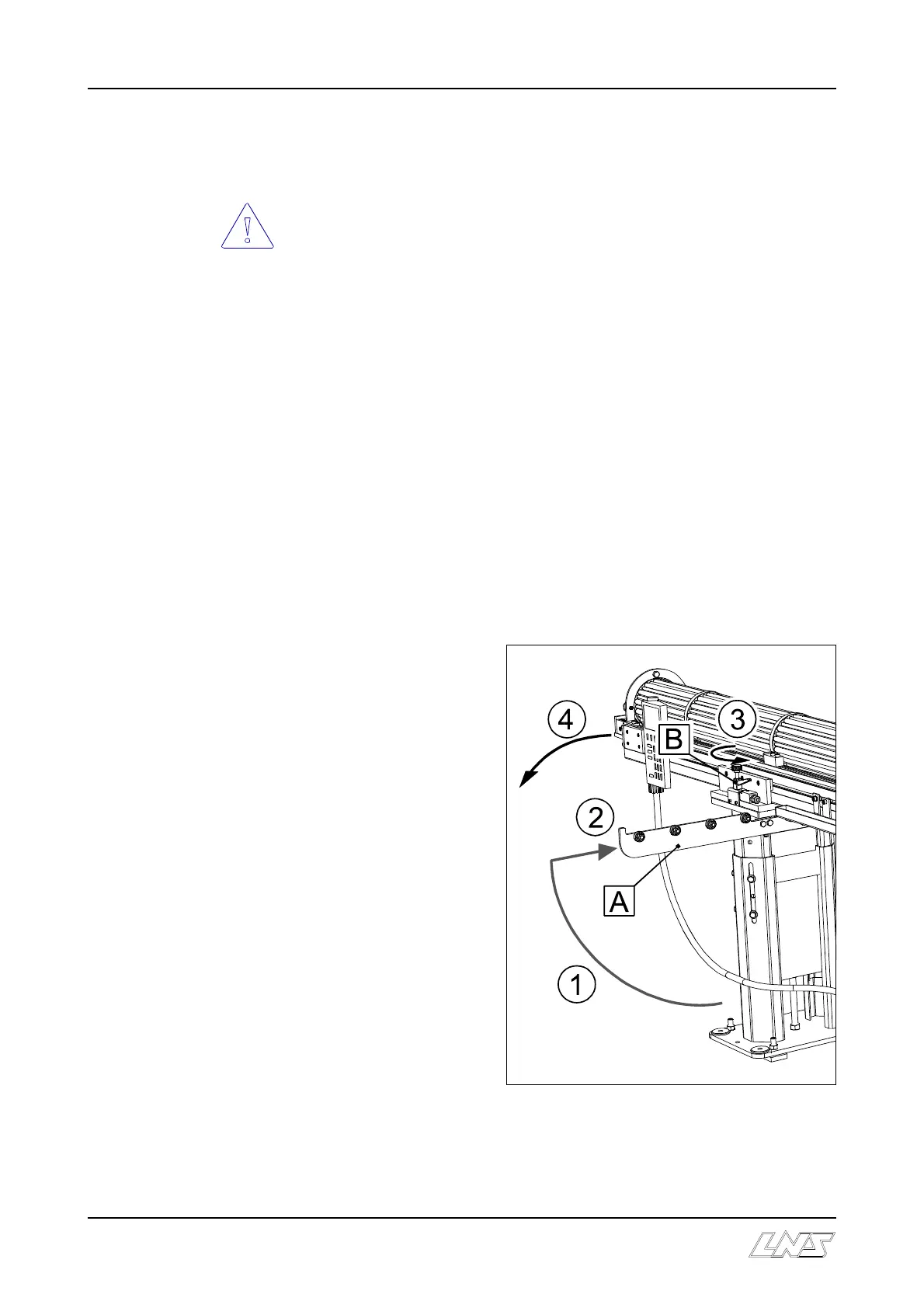

Procedure :
1. Raise the support arm (A).
2. Push the arm against the stop so that it is resting on its support
Attention : if the arm is not placed correctly, the bar-feeder may fall causing
considerable physical and material damage.
3. Loosen the lever (B) and unscrew
until the screw is free.
4. Pivot the feeder.
When maintenance operations are
finished, bring the bar-feeder back to
the working position.
Resecure with the lever (B) then bring
the support arm (A) down again.
