7 - 2 CHAPTER 7 : GENERAL DESCRIPTION
TRYTON 112 CNC
1. BARREL
1.1 Description
According to the chosen configuration, the number and diameter of the barrel guidance
tubes can vary (see Chapter 2 / characteristics).
The bars to be loaded are stored inside the tubes and are brought into the axis of the
spindle by simple rotation of the barrel.

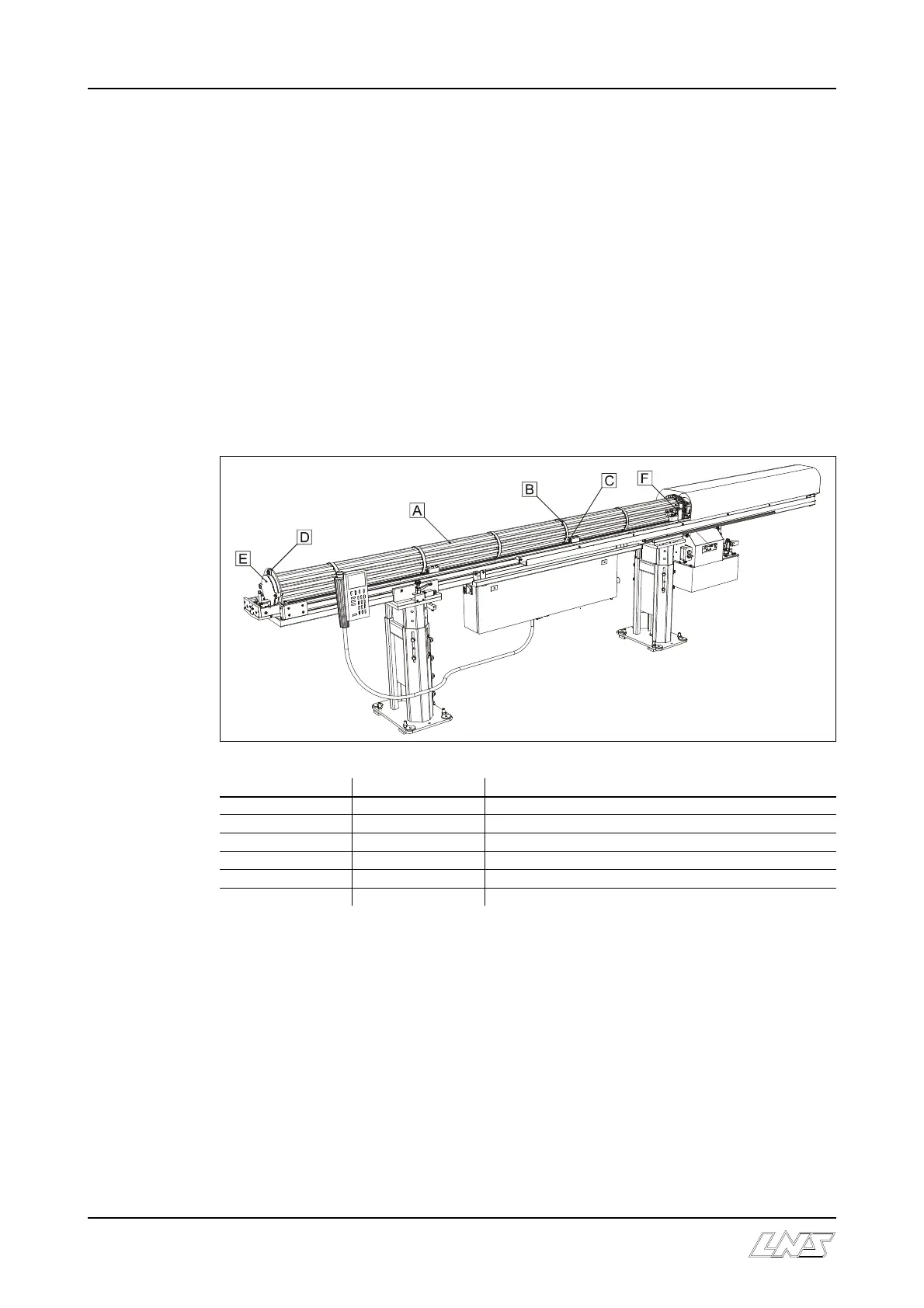

1.2 Layout of the elements
Designation Article No Description
A (1) Barrel
B (2) Rotation ring
C 112.002.044 Bearing supports
D 112.02.103 Safety hoop
E 112.02.113 Front stop
F (3) Indexing device
(1) Varies according to the configuration of the bar-feeder
(2) Not available as spare part
(3) See below
