CHAPTER 5 : PNEUMATICS 5 - 5
TRYTON 112 CNC
2.3 Connection

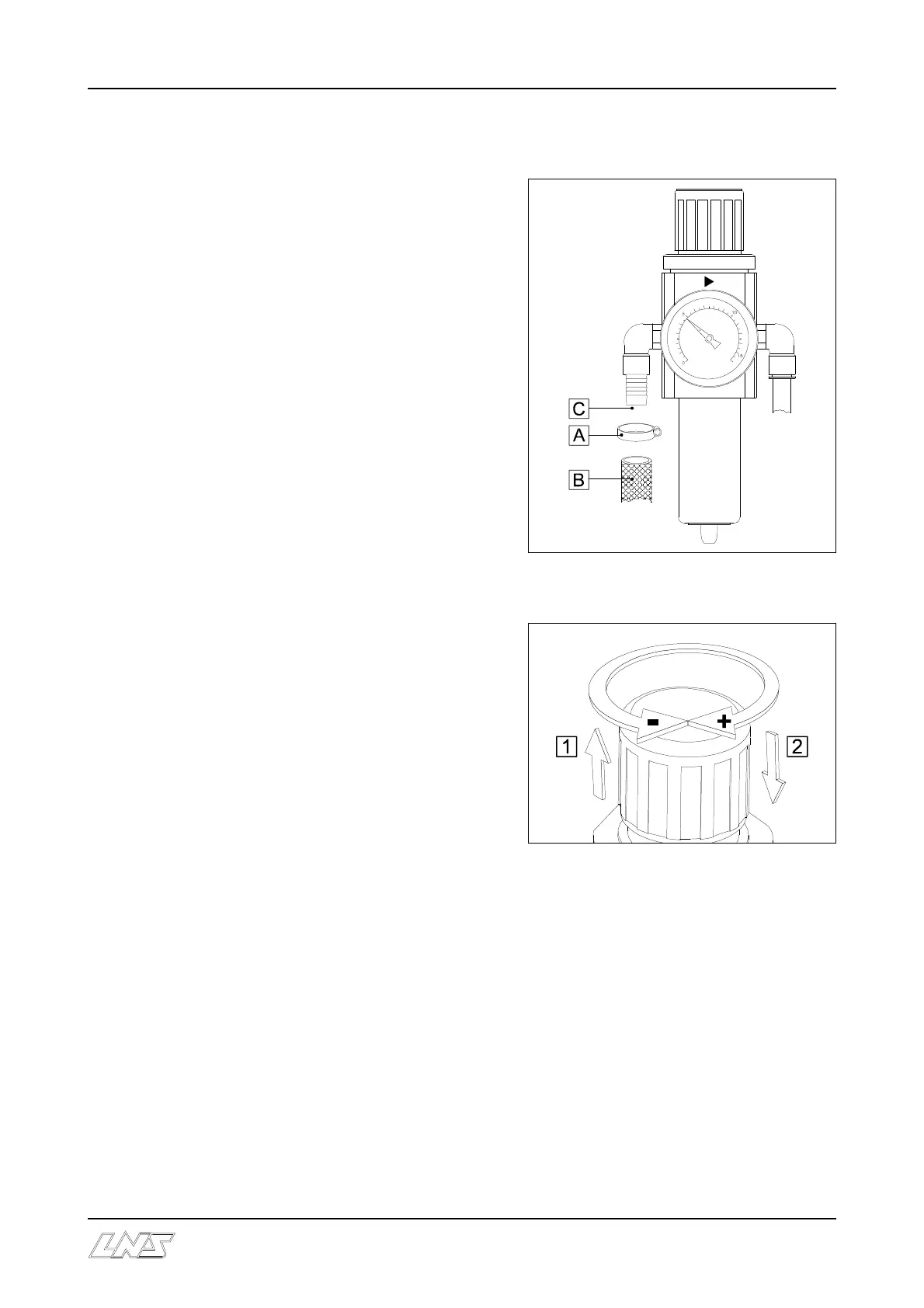

The pneumatic connection (C) is located on
the air filtering device of the bar feed
system.
For the pneumatic connections of the bar
feed system, the customer must provide a
hose with an inside diameter of 1/2" (12.7
mm).
When the hose is connected, it should not
lie on the ground because it could become
damaged
1. Place clamp (A) around hose (B).
2. Insert fitting (C) into hose.
3. Tighten the flange to make it airtight
2.4 Settings
1. Unlock the adjusting knob by pulling it
upward.
To increase the pressure, turn it
clockwise. To decrease it, turn it in the
opposite direction. The operational
pressure should be set at 5 bar
2. When the settings are done, lock the
adjuster by pushing it downward.
