5.2.2 Settings for positioning
5.2.2.1 Top-cut position

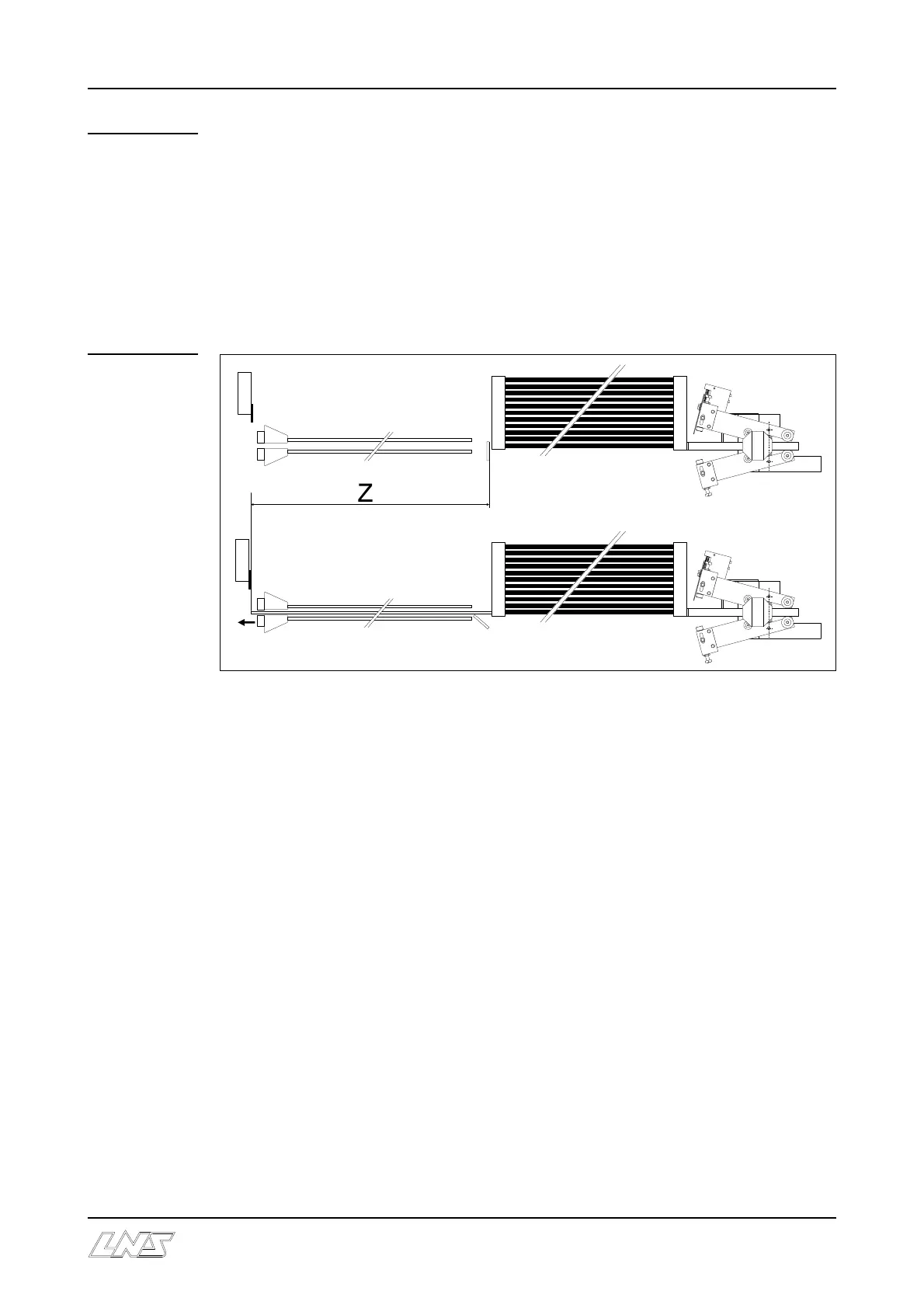

During the loading cycle, the bar is automatically loaded and positioned into the spindle,
outside the clamping device of the lathe (chuck or actuator).
This positioning corresponds to a value (Z) programmed by the operator, which is equal
to the distance between the measuring cell and the position of the material in the lathe
clamping device
With this system, the setting is the same for any bar length..
To adjust the sectioning position, please consult the Start-up Manual.
