CHAPTER 7 : GENERAL DESCRIPTION 7 - 5
TRYTON 112 CNC
3. PUSHER
3.1 Description
The pusher, fitted with a collet on its front end, grasps and pushes the material up to behind
the lathe chuck.
To the rear of the pusher, a cable joined to a motor brings the pusher back to the loading
position.
Two rotating ferrules, one at each end of the pusher, ensure the free rotation of the bar. It
is important regularly to check that the rotating ferrules are working properly. If one of them
should seize up, it is necessary to replace it as soon as possible.

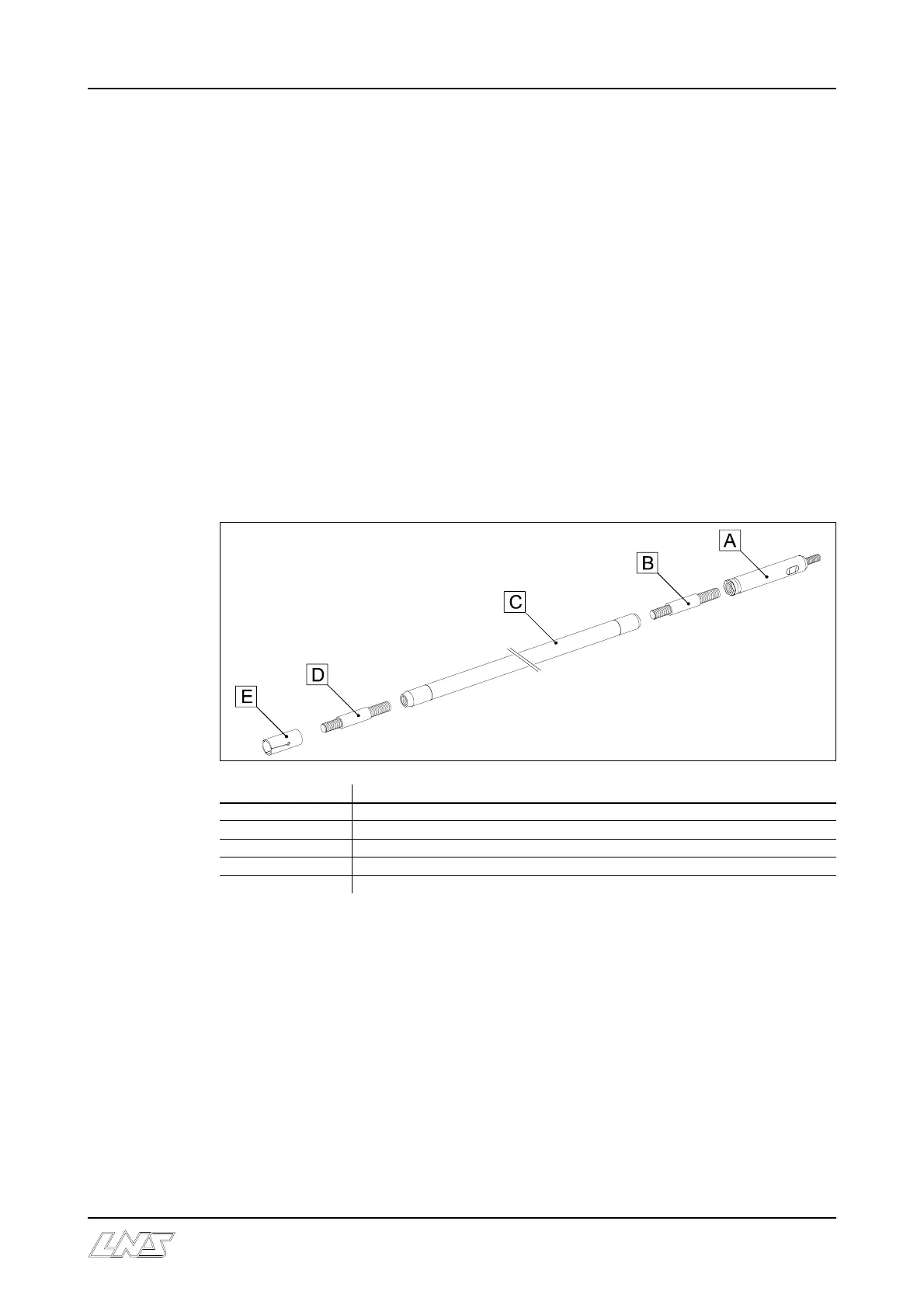

3.2 Layout of the elements
Designation Description
A Piston
B Rear rotating sleeve
C Body of pusher
D Front rotating sleeve
E Collet
Please consult the Start-up Manual on how to replace the collet.
