6. Function Description
6-22
Code Display Description Range Unit Default
DIO_57 OL level Overload warning level 30 ~ 250 % 150
DIO_58 OL time Overload warning time 0 ~ 30 sec 10
z Note: The set value of overload alarm level is of percentage(%) to the rated current of the motor.
2.17) Stop
‘Stop’ is ON when the inverter keeps stopping.
2.18) Steady
This is ON when the inverter is running at the constant speed.
2.19) Brake output

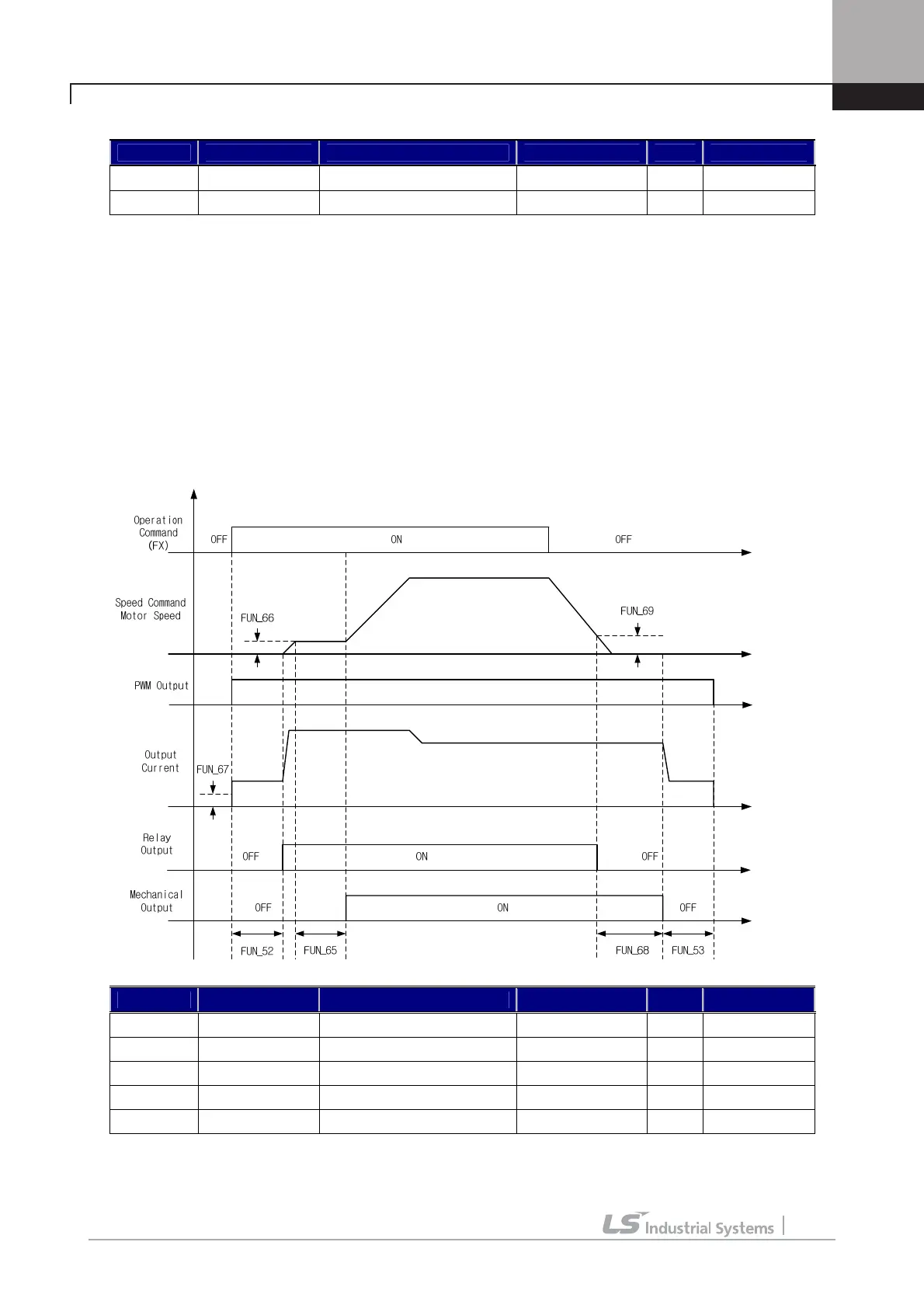

Output the signal of opening or closing of brake.
Code Display Decription Range Unit Default
FUN_65 BKOpen Time Brake opening time 0.00 ~ 30.00 sec 0.00
FUN_66 BKOpen Spd Brake opening speed 0.0 ~ 500.0 rpm 0.0
FUN_67 Release Curr Brake opening current 0.0 ~ 150.0 % 20.0
FUN_68 BKClose Time Brake closing time 0.00 ~ 30.00 sec 0.00
FUN_69 BKClose Spd Brake closing speed 0.0 ~ 500.0 rpm 0.0
Note : Brake opening current value is set as a percentage of the motor magnetic current.
