4 System description
4.1 Rotary switches and buttons
The following controls are mounted on the front face of the LX8000 digital unit:
• Four rotary selector knobs
• Six push buttons
• SD card reader
The LX8000 vario unit is an indicator only and has no controls. Information
displayed is controlled by the LX8000 digital unit.
4.1.1 Buttons
All buttons have a dynamic function in that the first press of each button displays its function
without executing any action. Not all buttons have a function on every page. In some cases
buttons have long press function.
4.1.1.1 Power button
Power button is top left button with ON/OFF symbol on left side. It has multiple functions.
Primarily it is used to switch the LX8000 system on and off.
4.1.2 Rotary knobs
LX8000 has four rotary knobs. Each of them has one function. Only the zoom knob has, in
some cases, a function other than zoom. With the upper left rotary knob the volume can be
adjusted. The upper right rotary switch is the mode selector (It changes the mode of the
operation). Lower right is up/down switch is used for selecting sub pages, sub menus and
edit menus. At lower left is the zoom knob and it is multifunction. While its main function is
to change the zoom level in the graphic mode, it can also be used if an error is made during
editing; it is possible to move the cursor back by rotating this knob. However, this can only
be done if 'editing' is active which is shown by the cursor blinking.

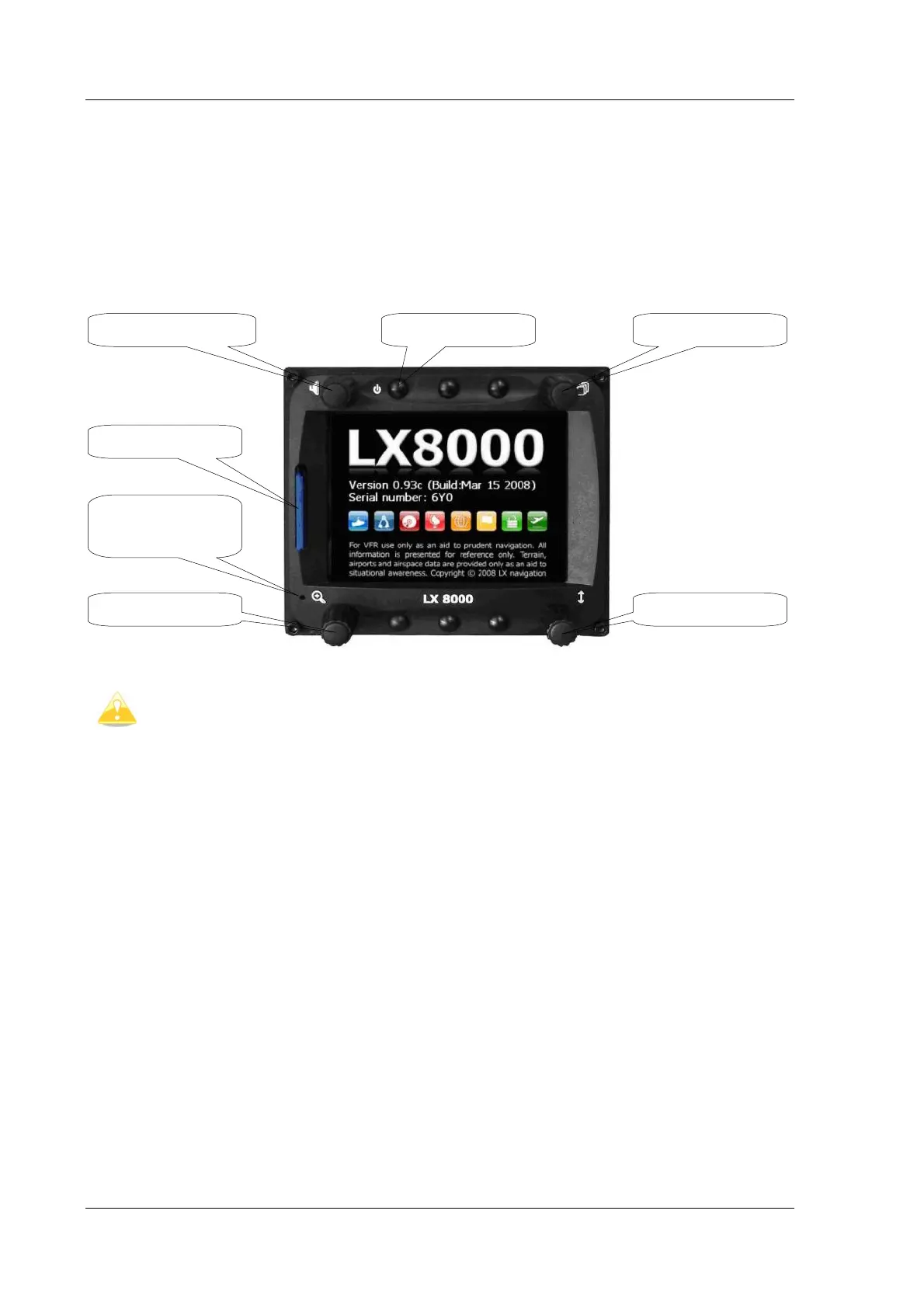

VOLUME selector MODE selector POWER button
ZOOM selector PAGE selector
SD Card reader
Ambient light
sensor
